Exploded View - Front Wheel Sensor

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

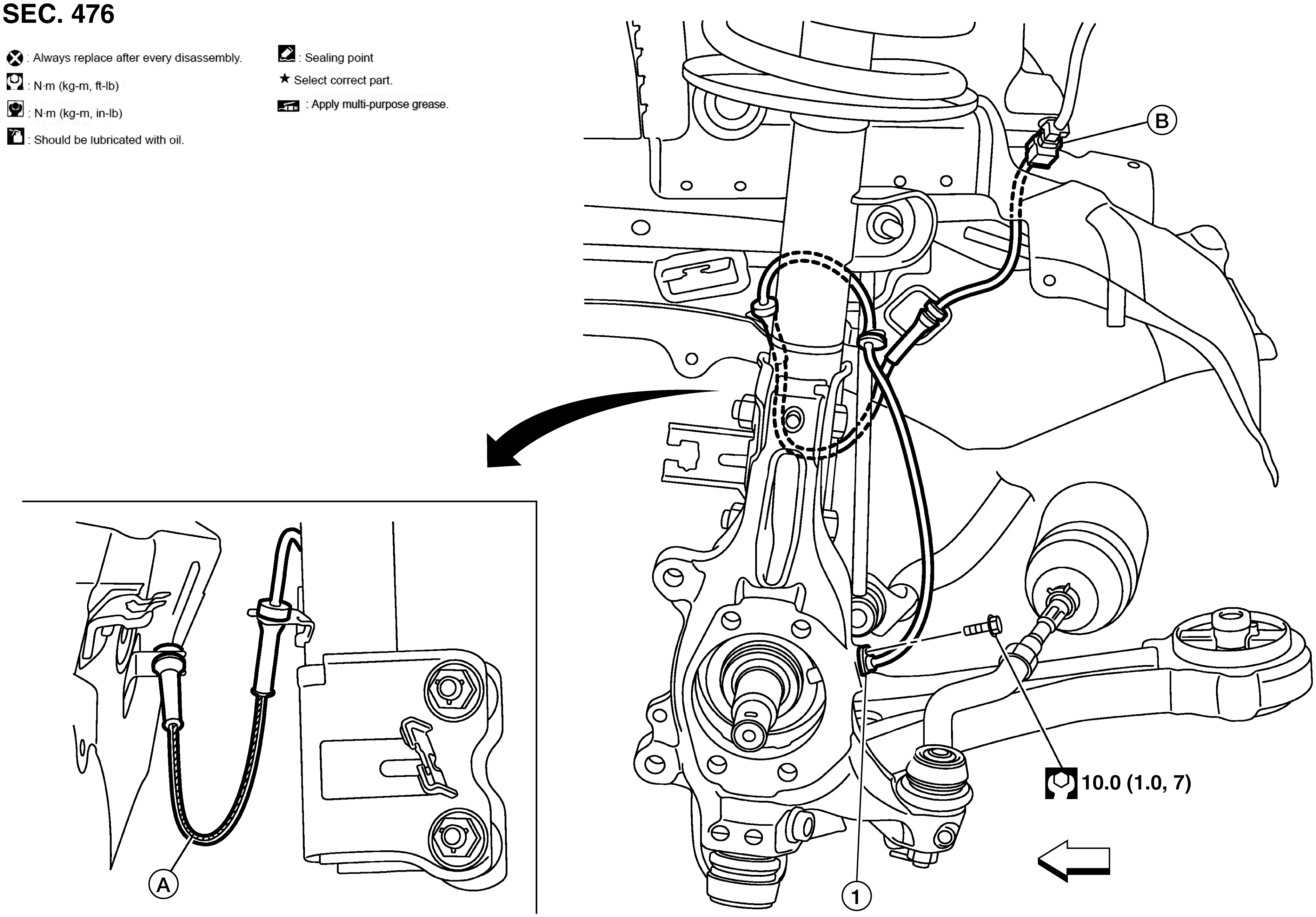

Fig 1: Wheel Sensor With Torque Specifications
G09425490ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Front wheel sensor A. Color line (slant line) B. Front wheel sensor connector
ARROW Front
