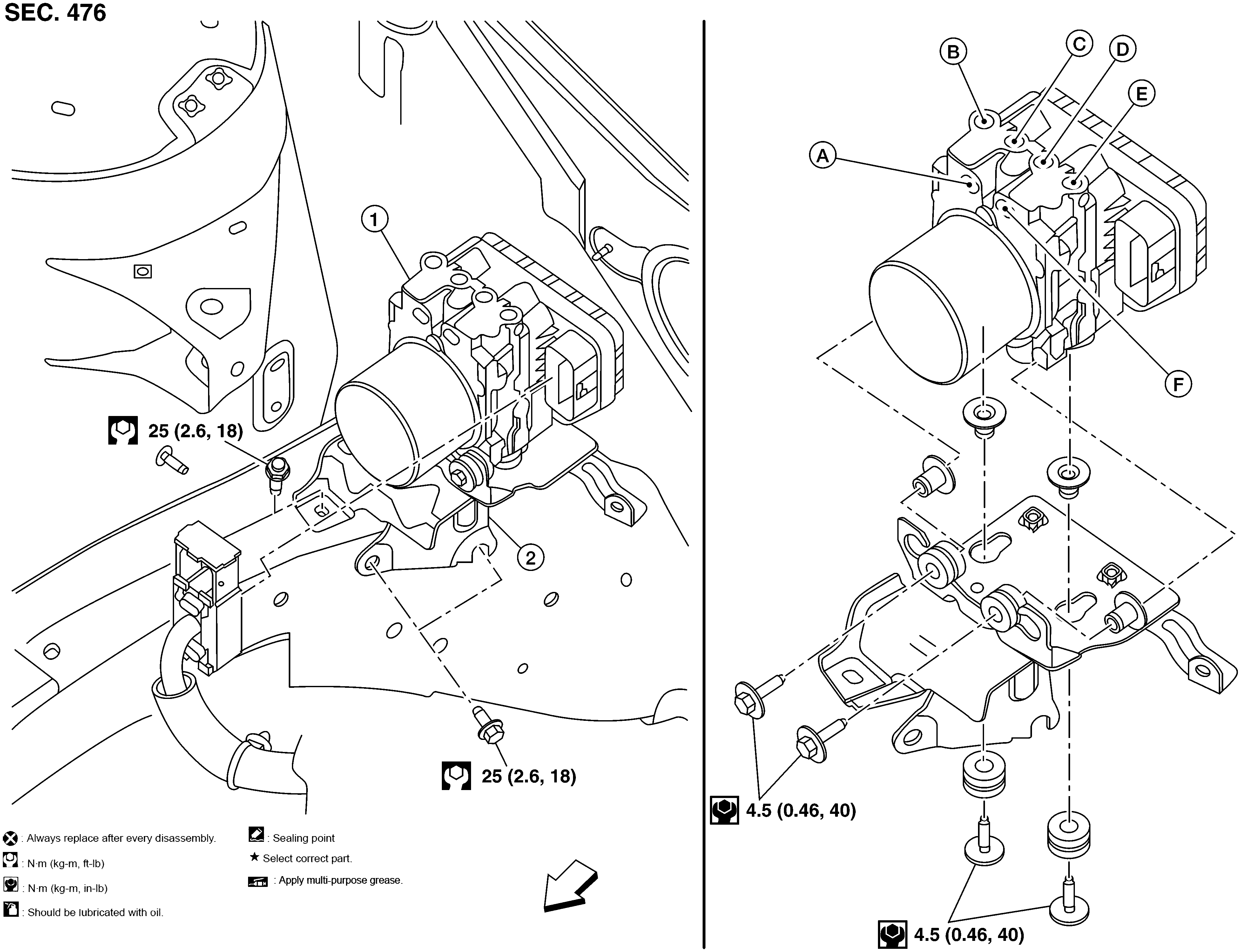

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
ABS actuator and electric unit (control unit) |
2. |
Bracket |
A. |
From master cylinder secondary side |
| B. |
To front RH brake caliper |
C. |
To rear LH brake caliper |
D. |
To rear RH brake caliper |
| E. |
To front LH brake caliper |
F. |
From master cylinder primary side |
 |
Front |
