Brake Force Distribution Function

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Brake force distribution function is controlled by ABS actuator and electric unit (control unit).
Brake force distribution function helps provide a more stable and secure feeling.

Courtesy of NISSAN NORTH AMERICA, INC.

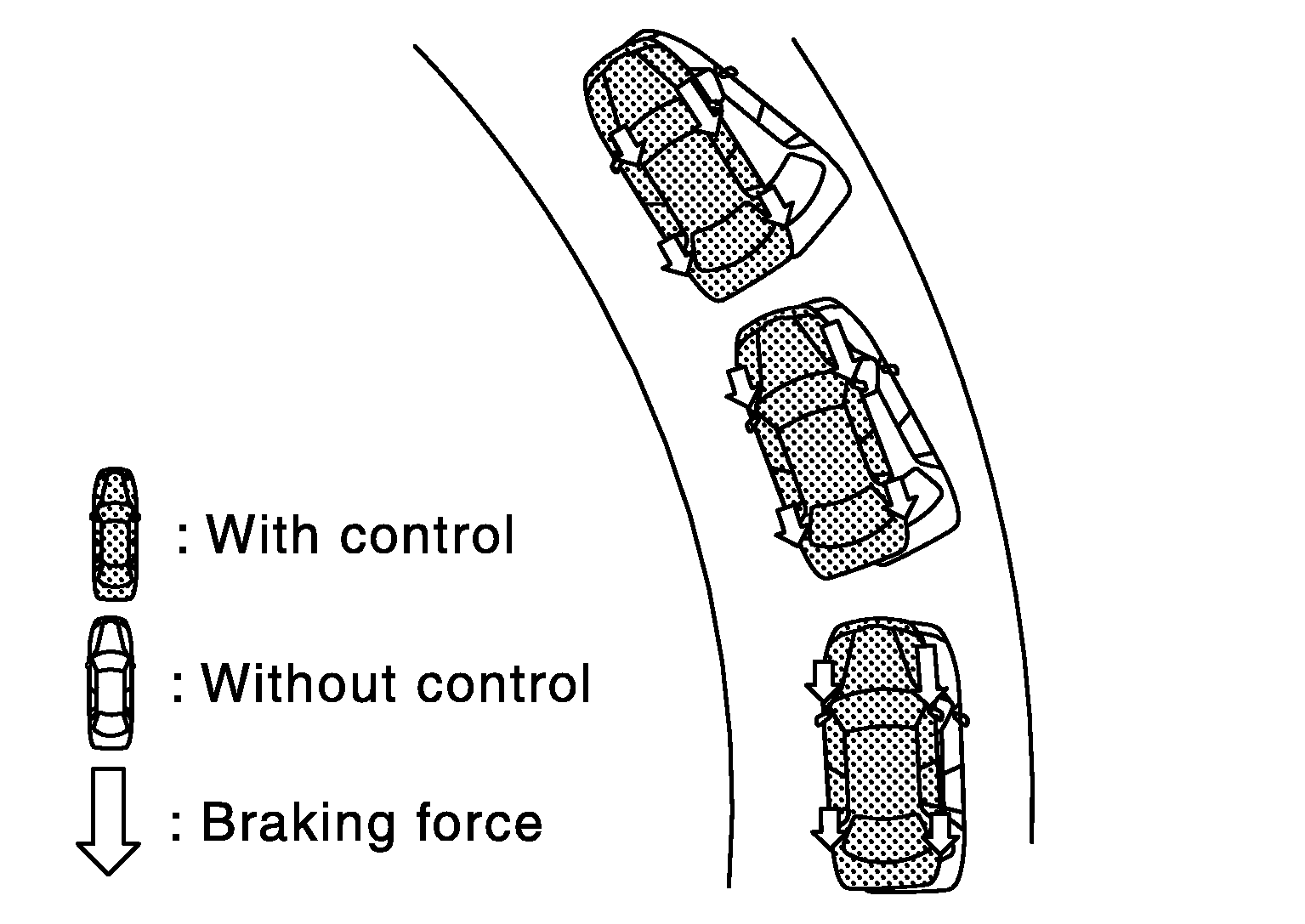

During cornering, when brake operation is performed, brake fluid pressure of each wheel is controlled based on steering operation amount by the driver and vehicle cornering status amount detected by each sensor.

Courtesy of NISSAN NORTH AMERICA, INC.
VDC warning lamp turns ON when Brake force distribution function is malfunctioning.

NOTE:

Brake force distribution function may not always operate in all driving conditions.
