Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

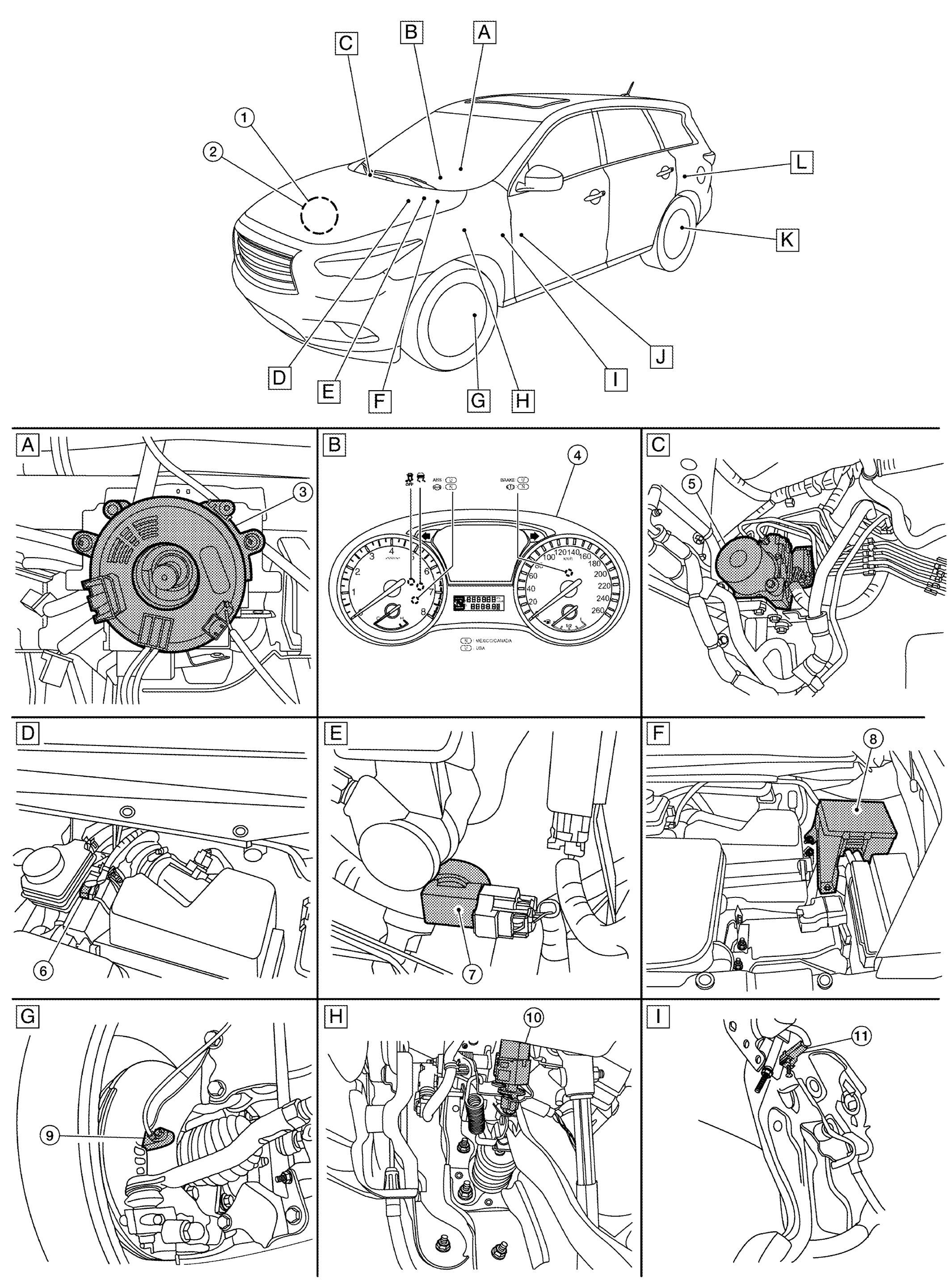

| A. | Steering column area (view with steering wheel removed) | B. | Instrument panel (LH side) | C. | Engine compartment (RH rear) |
| D. | Engine compartment (LH rear) | E. | Left front wheel area (RH similar) | F. | Engine compartment (LH rear) |
| G. | Left front wheel area (RH similar) | H. | Brake pedal area | I. | LH drivers kick panel area |

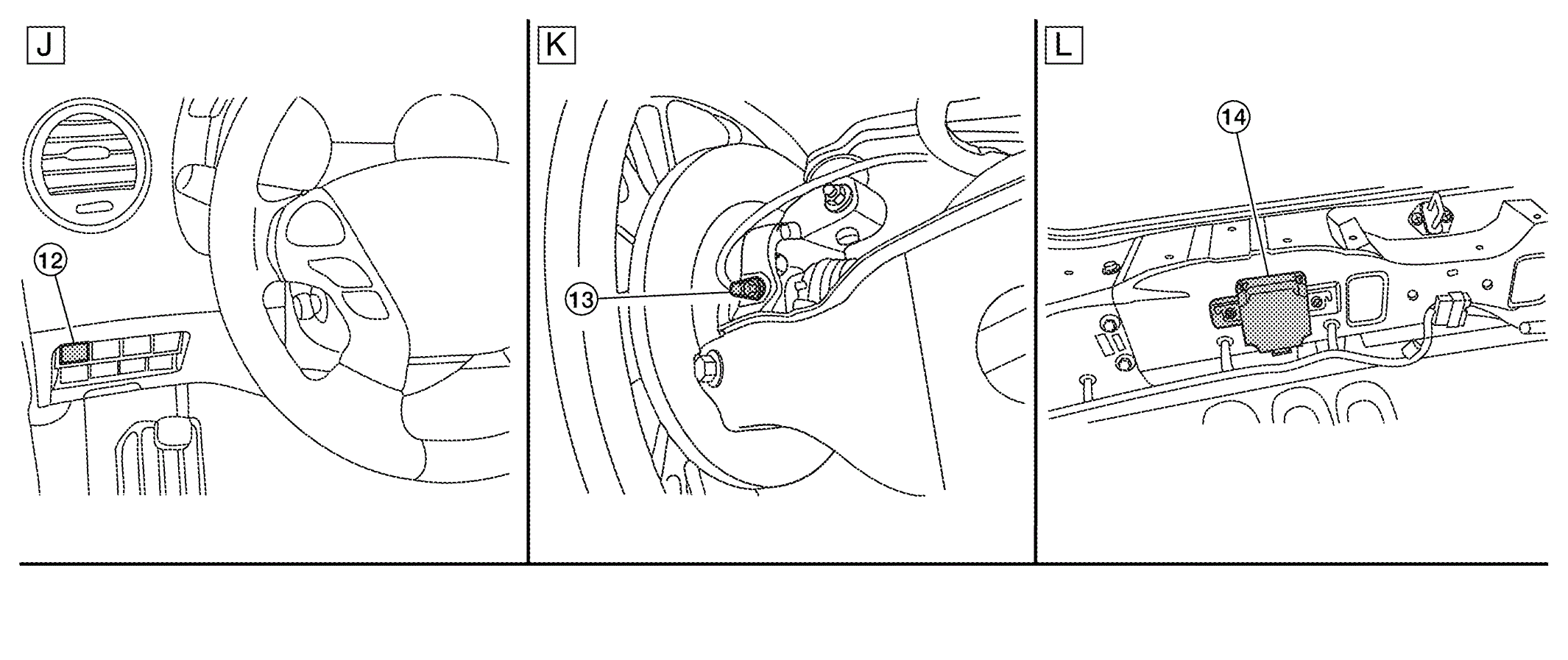

| J. | Instrument panel (LH side) | K. | Front center console area (View with center console removed) | L. | Left rear wheel area (RH similar) |
| M. | Center of back door kicking plate area (view with storage box removed) |
