Wiring Diagram - With Automatic Drive Positioner And ICC System

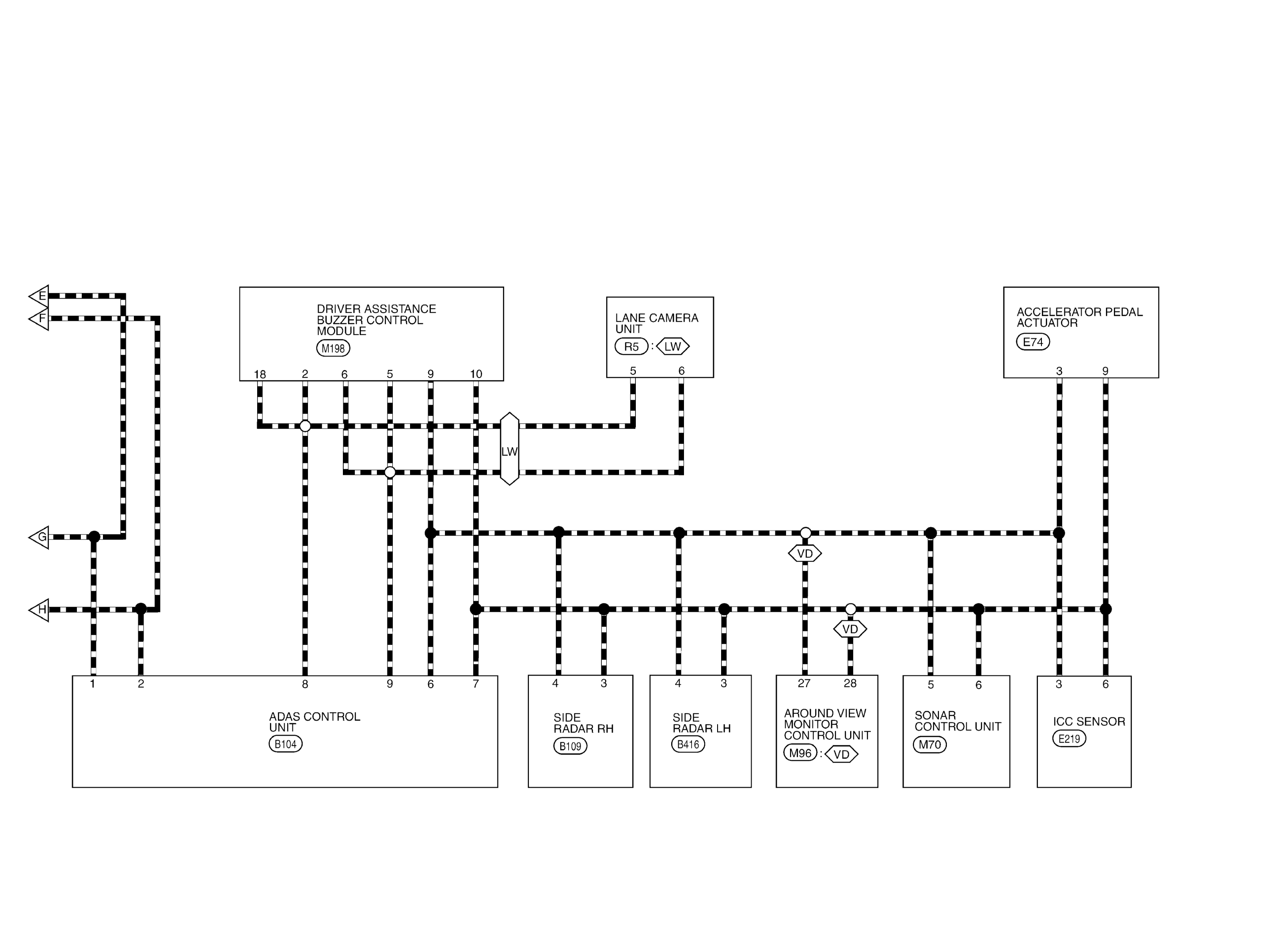

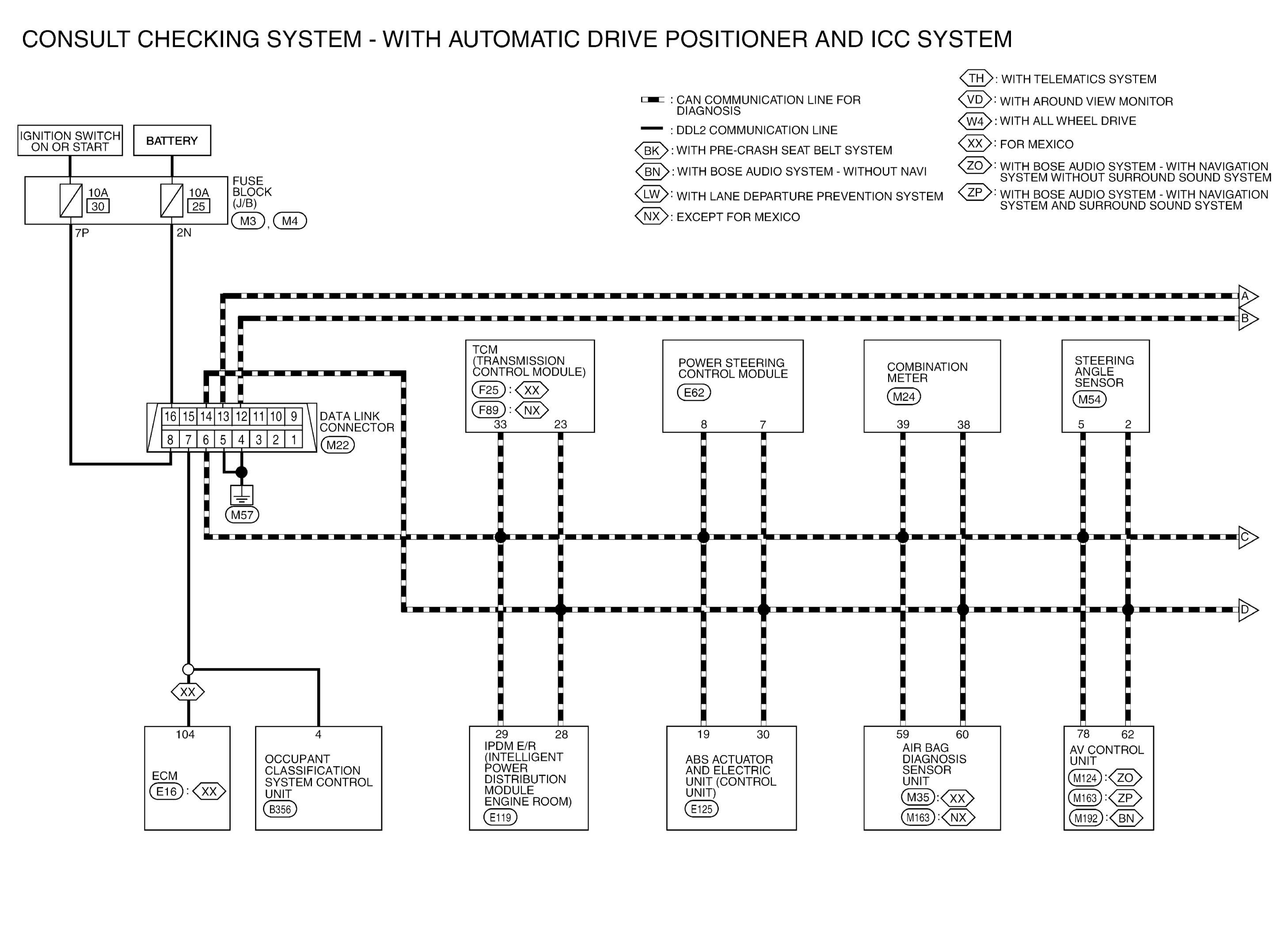

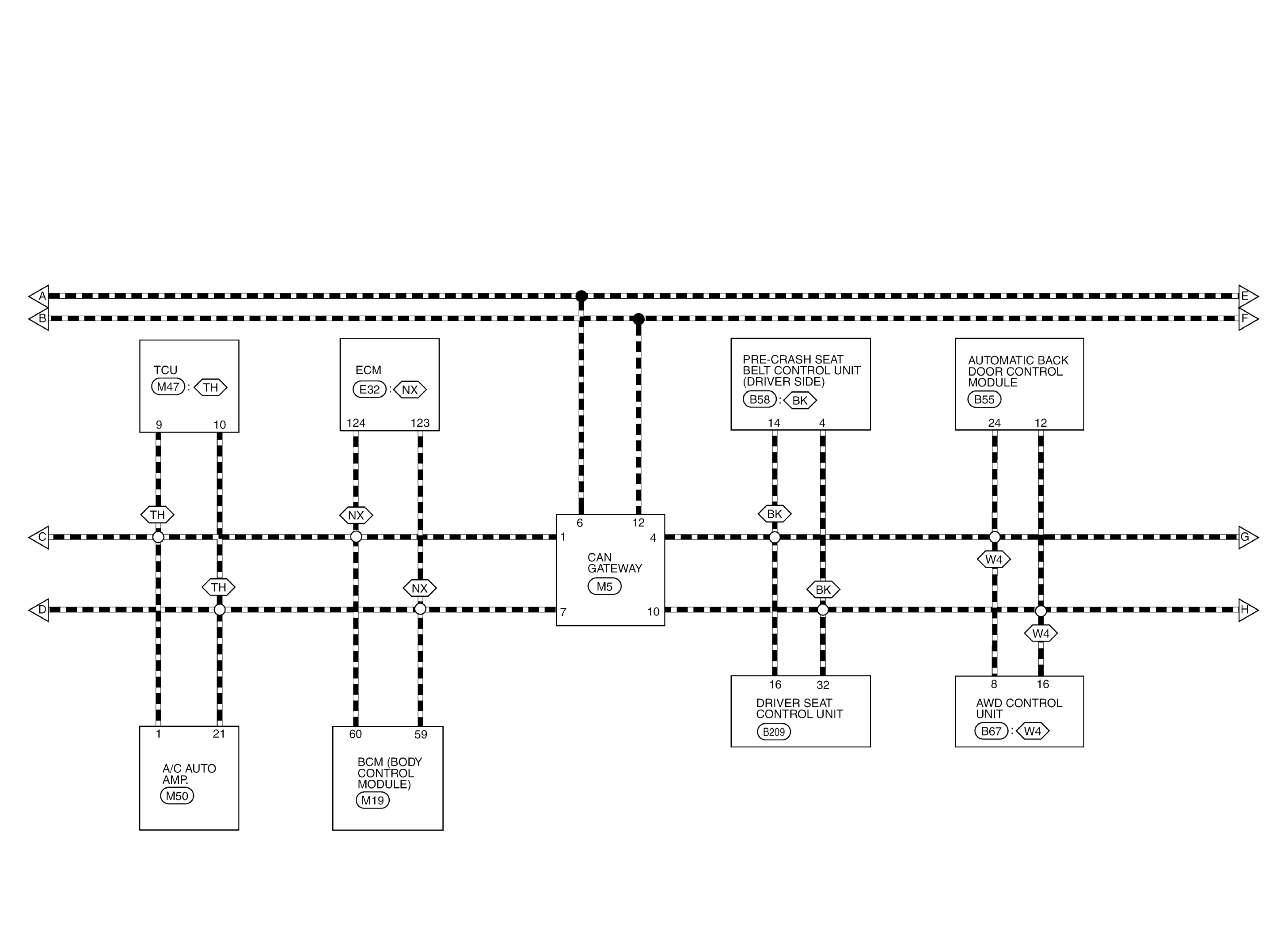

Wiring Diagram - With Automatic Drive Positioner And ICC System
WARNING:
This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
