How To Use This Information: Components: Notes

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. .

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

Courtesy of

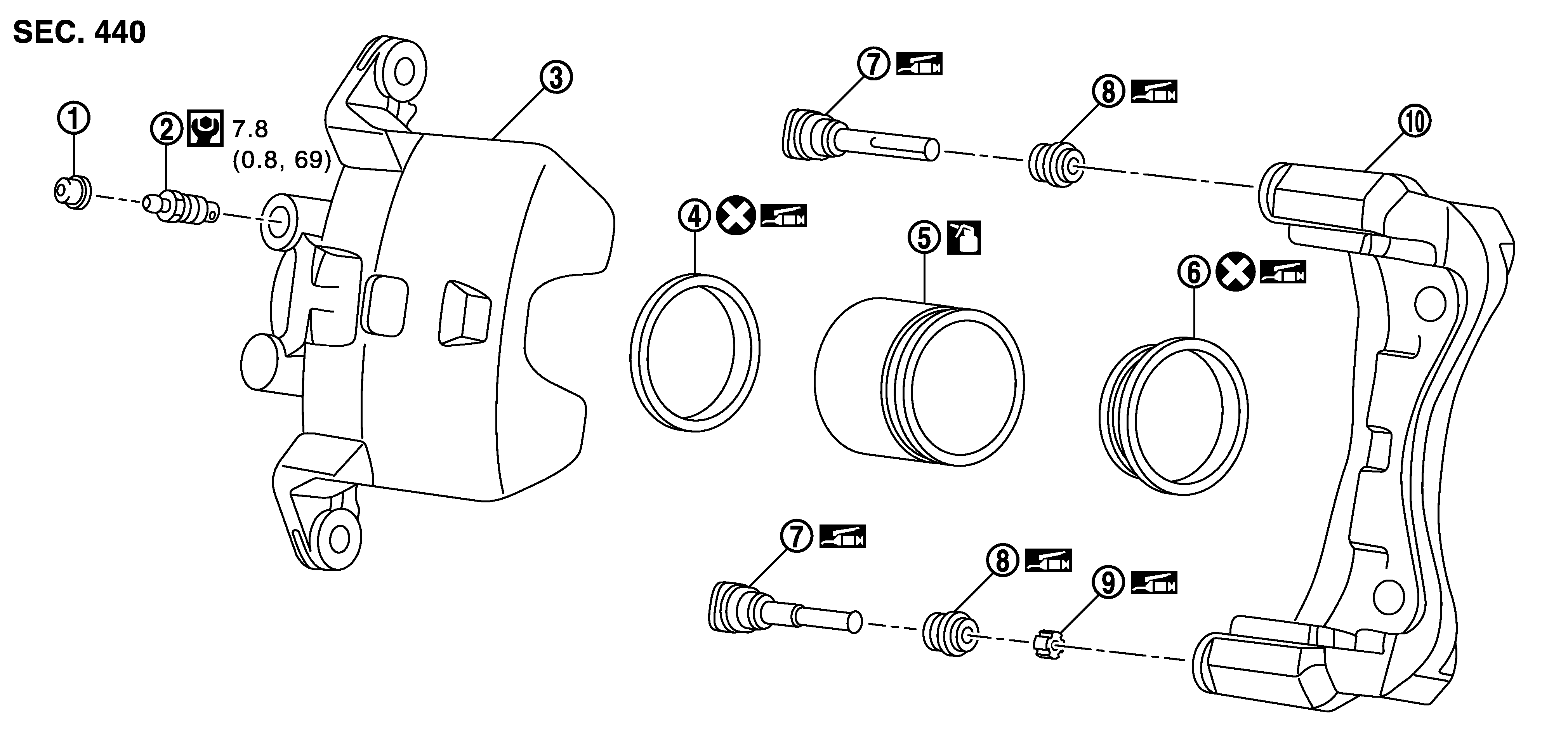

1.	Cap	2.	Bleeder valve	3.	Cylinder body
4.	Piston seal	5.	Piston	6.	Piston boot
7.	Sliding pin	8.	Sliding pin boot	9.	Bushing
10.	Torque member
	: Apply rubber grease.
	: Apply brake fluid.
	: N•m (kg-m, in-lb)
	: Always replace after every disassembly
