Connector Symbols

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

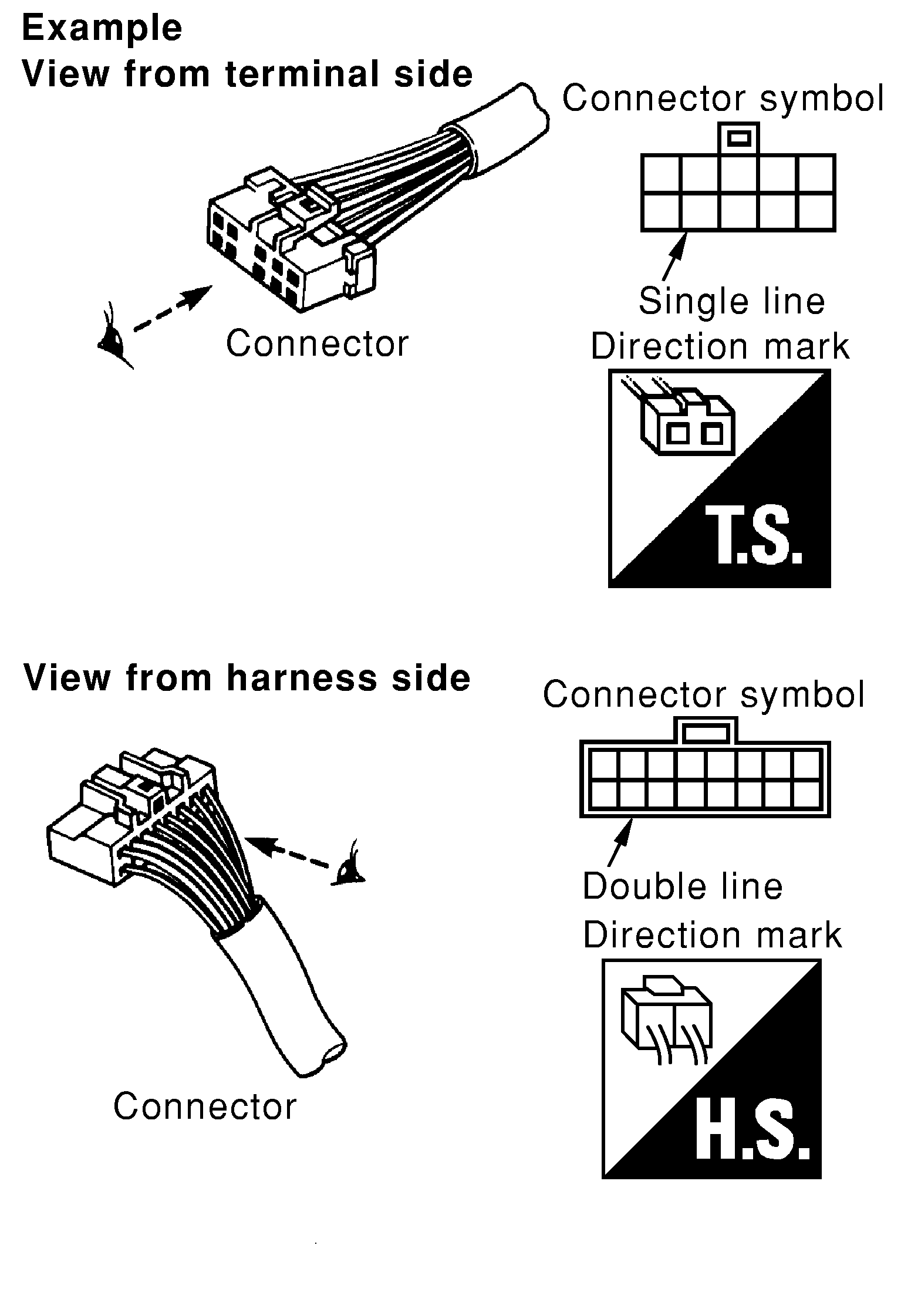

Most of connector symbols in wiring diagrams are shown from the terminal side.

Connector symbols shown from the terminal side are enclosed by a single line and followed by the direction mark.

Courtesy of NISSAN NORTH AMERICA, INC.
Connector symbols shown from the harness side are enclosed by a double line and followed by the direction mark.
Certain systems and components, especially those related to OBD, may use a new style slide-locking type harness connector. For description and how to disconnect, refer to HARNESS CONNECTOR .

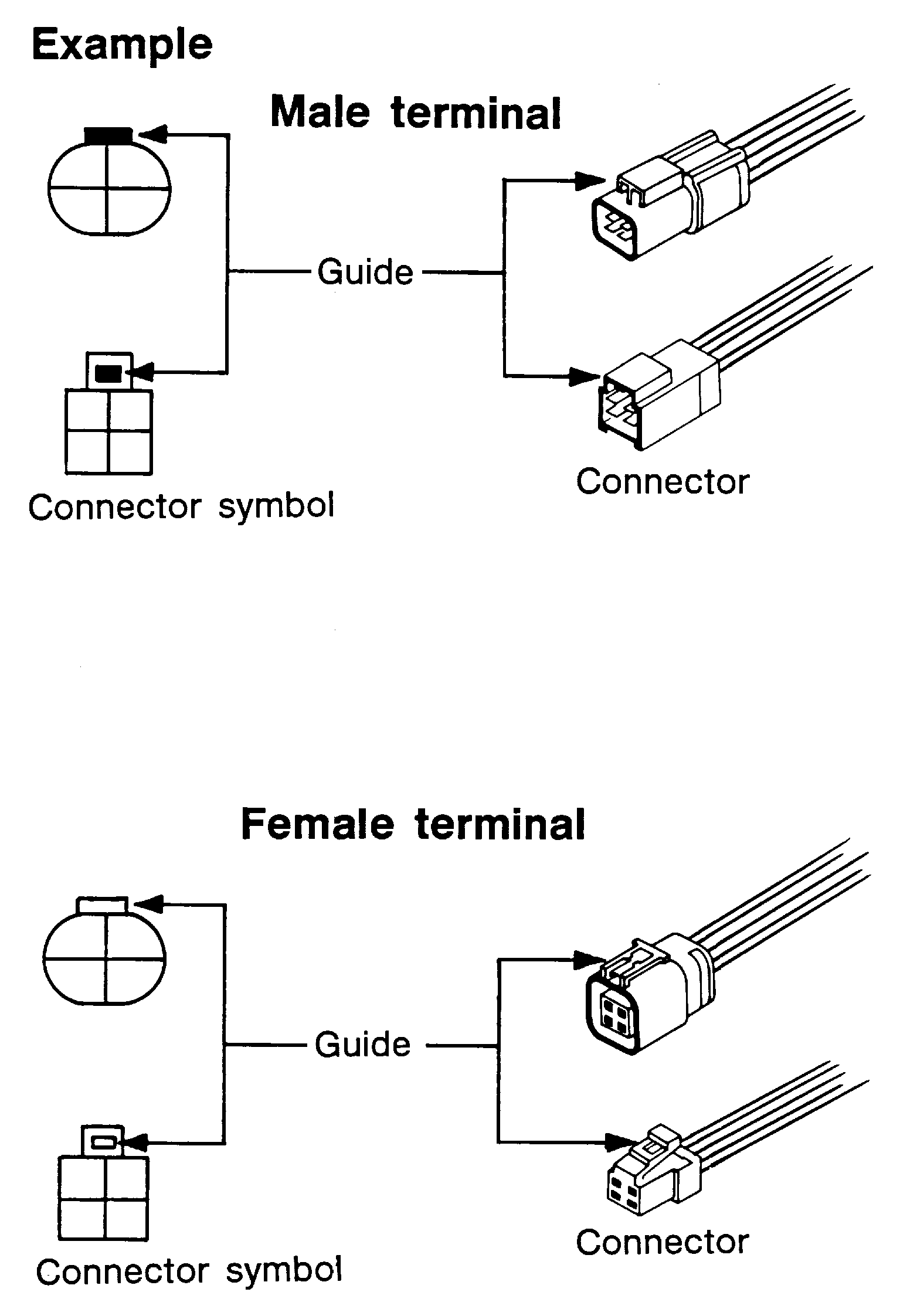

Male and female terminals

Courtesy of NISSAN NORTH AMERICA, INC.

Connector guides for male terminals are shown in black and female terminals in white in wiring diagrams.
