Connector Information

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

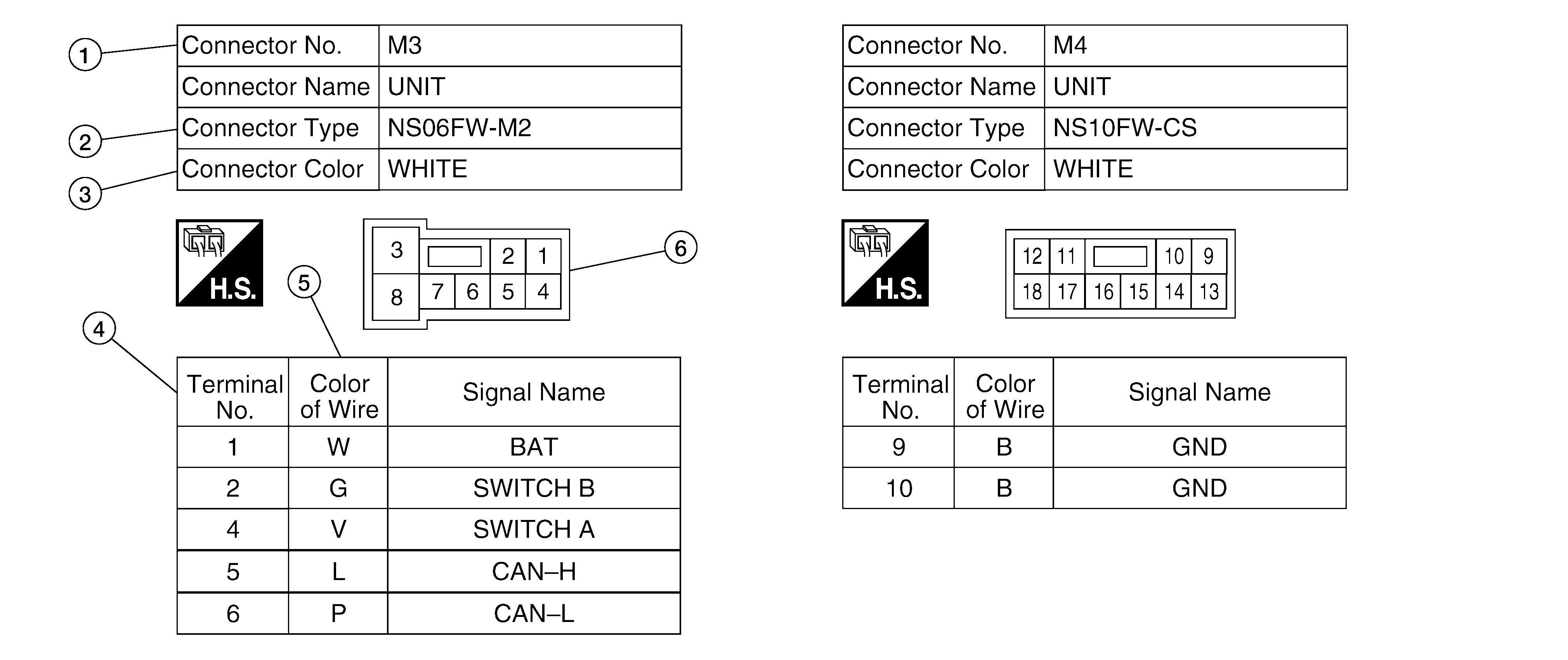

GNSAWAWA0024GB-024Courtesy of NISSAN NORTH AMERICA, INC.
DESCRIPTION

Number Item Description
1 Connector number
  • Alphabetic characters show to which harness the connector is placed.
  • Numeric characters show the identification number of connectors.
2 Connector type WHITE-1 : Connector model
WHITE-2 : Cavity
WHITE-3 : Male (M) and female (F) terminals
WHITE-4 : Connector color
WHITE-5 : Special type
G05917914Courtesy of NISSAN NORTH AMERICA, INC.
3 Connector color
  • This means the color of a connector.
4 Terminal number
  • This means the terminal number of a connector.
5 Wire color
  • This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green
BG = Beige
BR = Brown		 LA = Lavender
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
  • When the wire color is striped, the base color is given first, followed by the stripe color as shown below:

    Example: L/W = Blue with White Stripe
6 Connector
  • This means the connector information.
  • This unit-side is described by the connector symbols.
