Section 40 (Engine Control System (DTC/Circuit Diagnosis) (VQ35DE) (Except Hybrid) (1 Of 3))
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
Diagnosis Procedure
>>

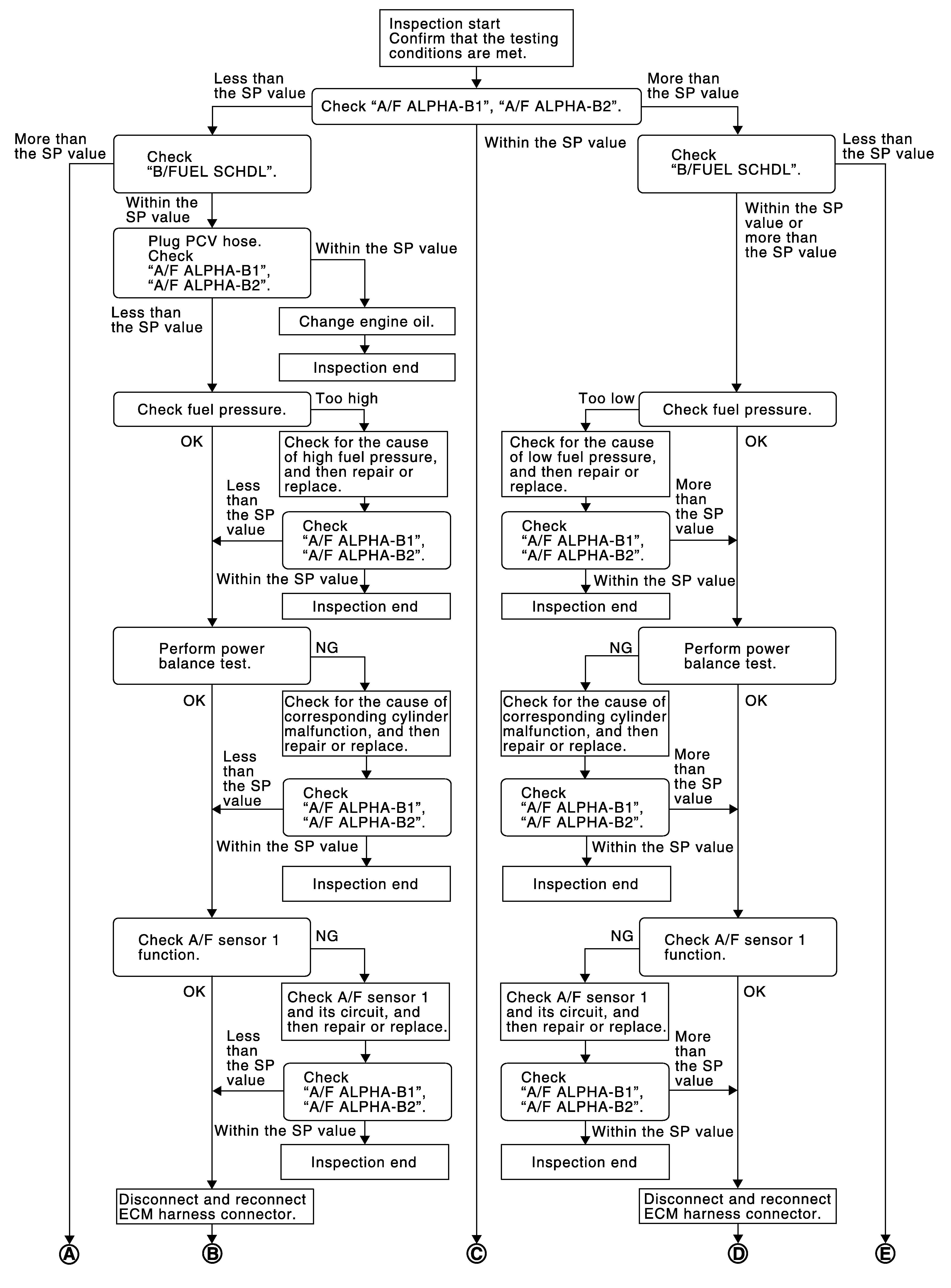

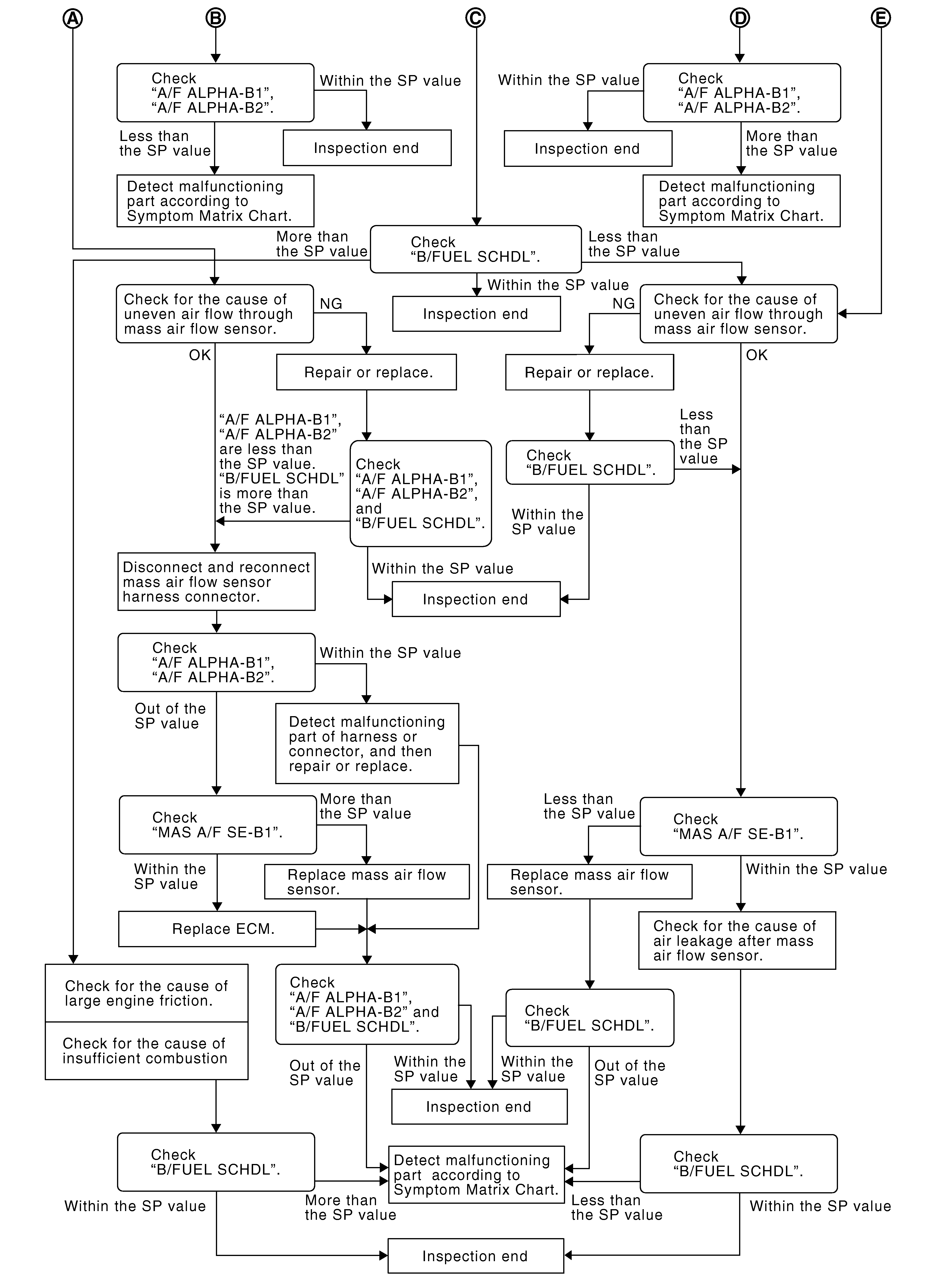

Overall Sequence
Overall Sequence
WARNING:
This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
