Diagnostic Test

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

  1. CHECK PCV VALVE

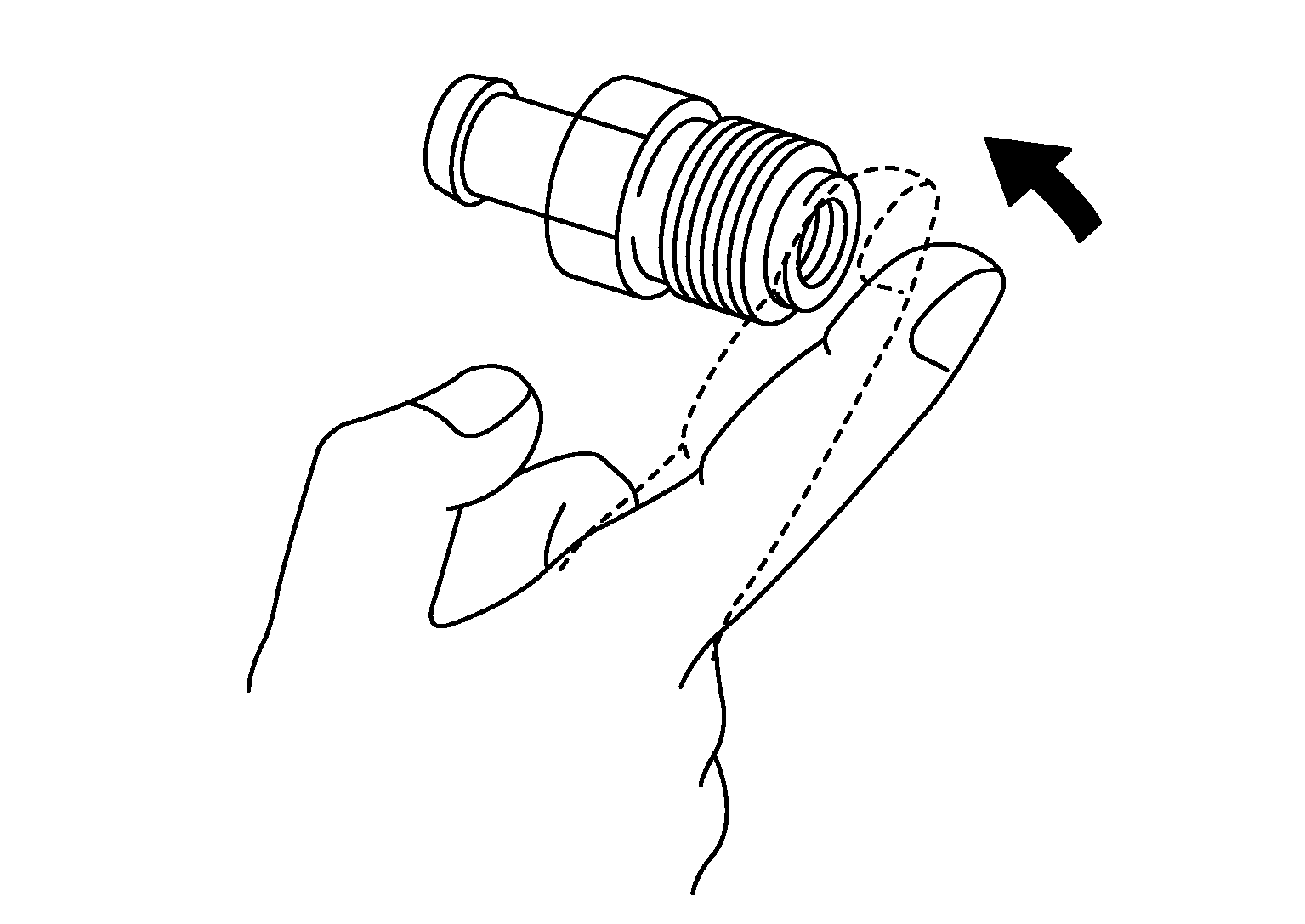

    With engine running at idle, remove PCV valve from rocker cover. A properly working valve makes a hissing noise as air passes through it. A strong vacuum should be felt immediately when a finger is placed over valve inlet.

    G04073668Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Replace PCV valve.
