Diagnostic Test

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IGNITION TIMING

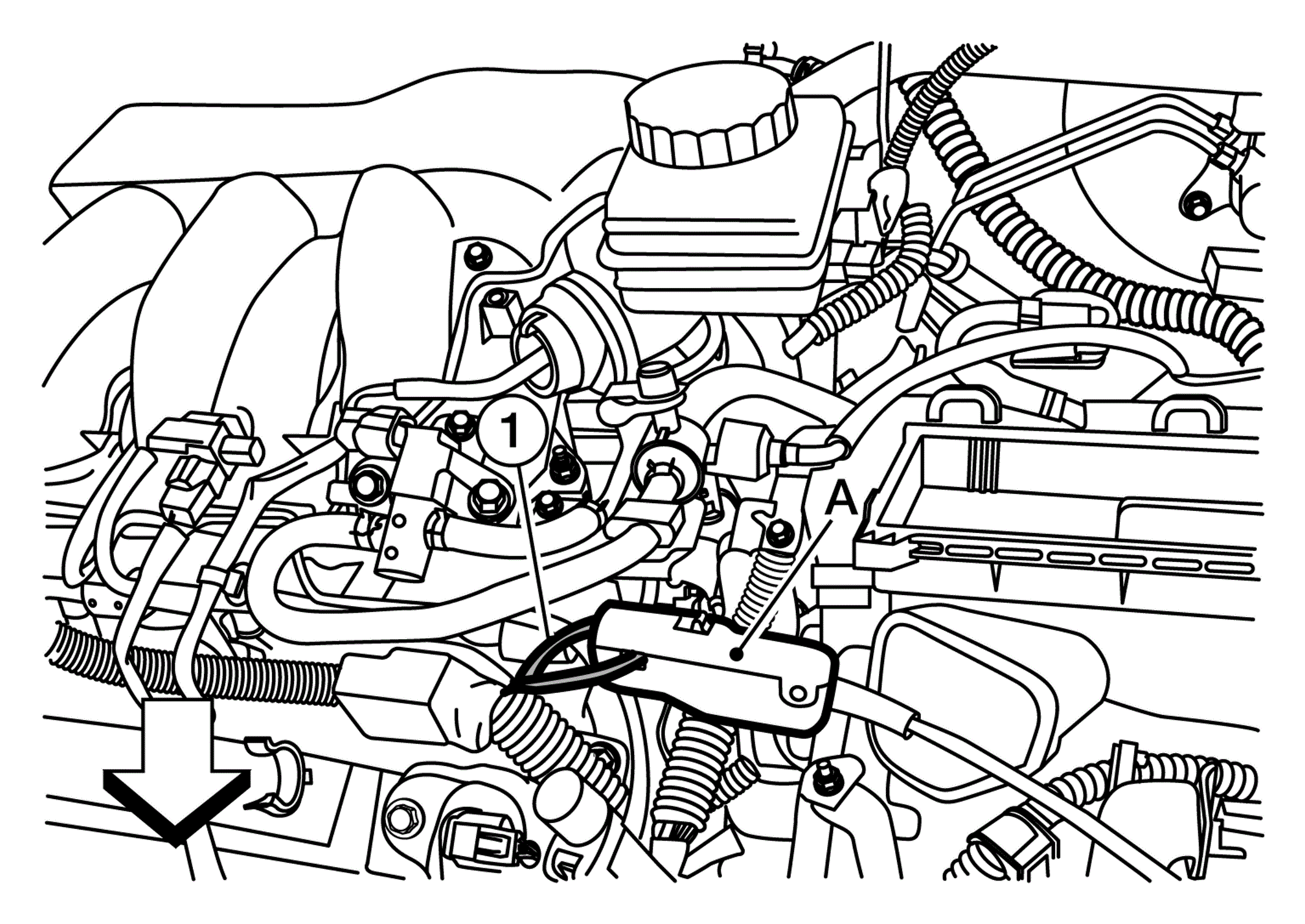

Attach timing light to loop wires

as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Timing light
	: Vehicle front

Check ignition timing.

Courtesy of NISSAN NORTH AMERICA, INC.

INSPECTION END
