ICC System Display (On The Information Display)
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

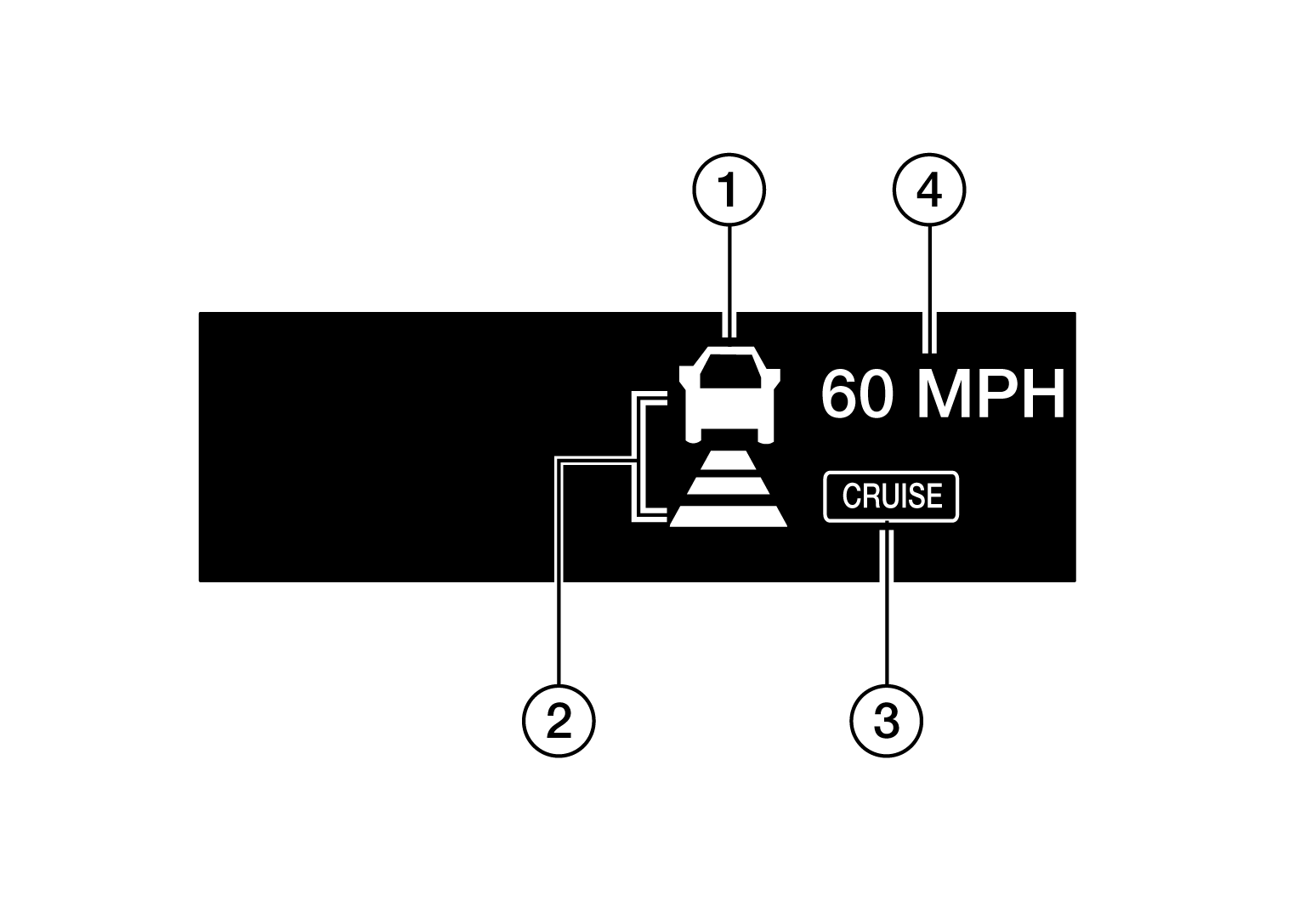

| No. | Display item | Description |
|---|---|---|
| 1 | Vehicle ahead detection indicator | Indicates whether it detects a vehicle ahead |
| 2 | Set distance indicator | Indicates the selected distance between vehicles set with the DISTANCE switch |
| 3 | Main switch indicator (white) | White: Indicates the main switch is ON (ICC system ON) |
| ICC system warning lamp (orange) | Orange: Indicates that a malfunction occurred in the ICC system | |
| 4 | Set vehicle speed indicator |
|
