Switch Name And Function

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

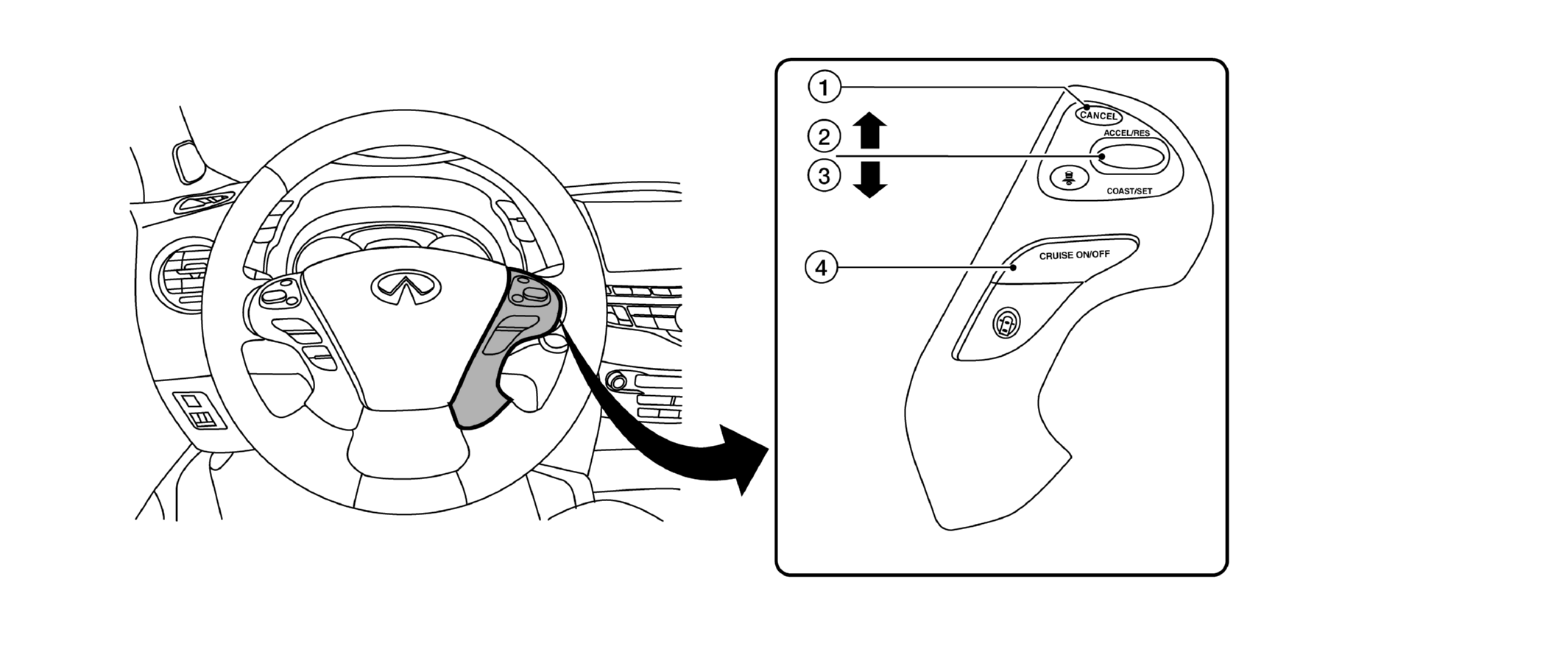

G08852400Courtesy of NISSAN NORTH AMERICA, INC.
No. Description Function
1 CANCEL switch Deactivates system without erasing set speed
2 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally
3 SET/COAST switch Sets desired cruise speed or reduces speed incrementally
4 MAIN switch Master switch to activate the system (Press for more than 1.5 seconds)
