ICC Sensor Alignment: Preparation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

ADVANCE PREPARATION FOR ICC SENSOR ALIGNMENT PROCEDURE
1. Adjust all tire pressure to the specified value.
2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
3. Shift the selector lever to "P" position, and release the parking brake.
4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.
5. Clean the ICC sensor area (1) of the front bumper grille.

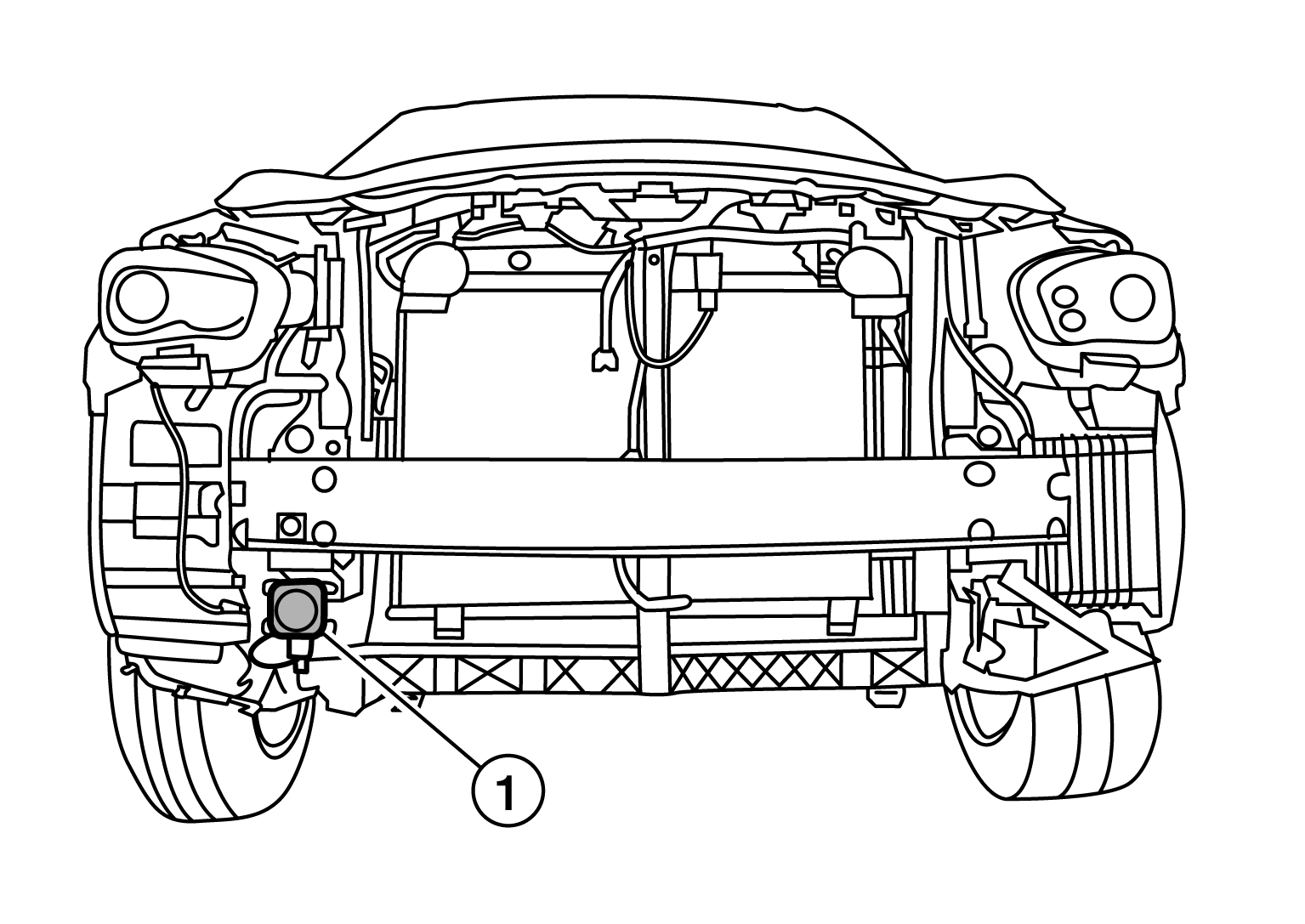

  Fig 1: ICC sensor area
  Courtesy of NISSAN NORTH AMERICA, INC.
Refer to VEHICLE SET UP .
