Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower headlining (rear). Refer to REMOVAL AND INSTALLATION .
  2. Disconnect harness connector from antenna feeder.
  3. Remove nut from satellite radio antenna (1) and remove.

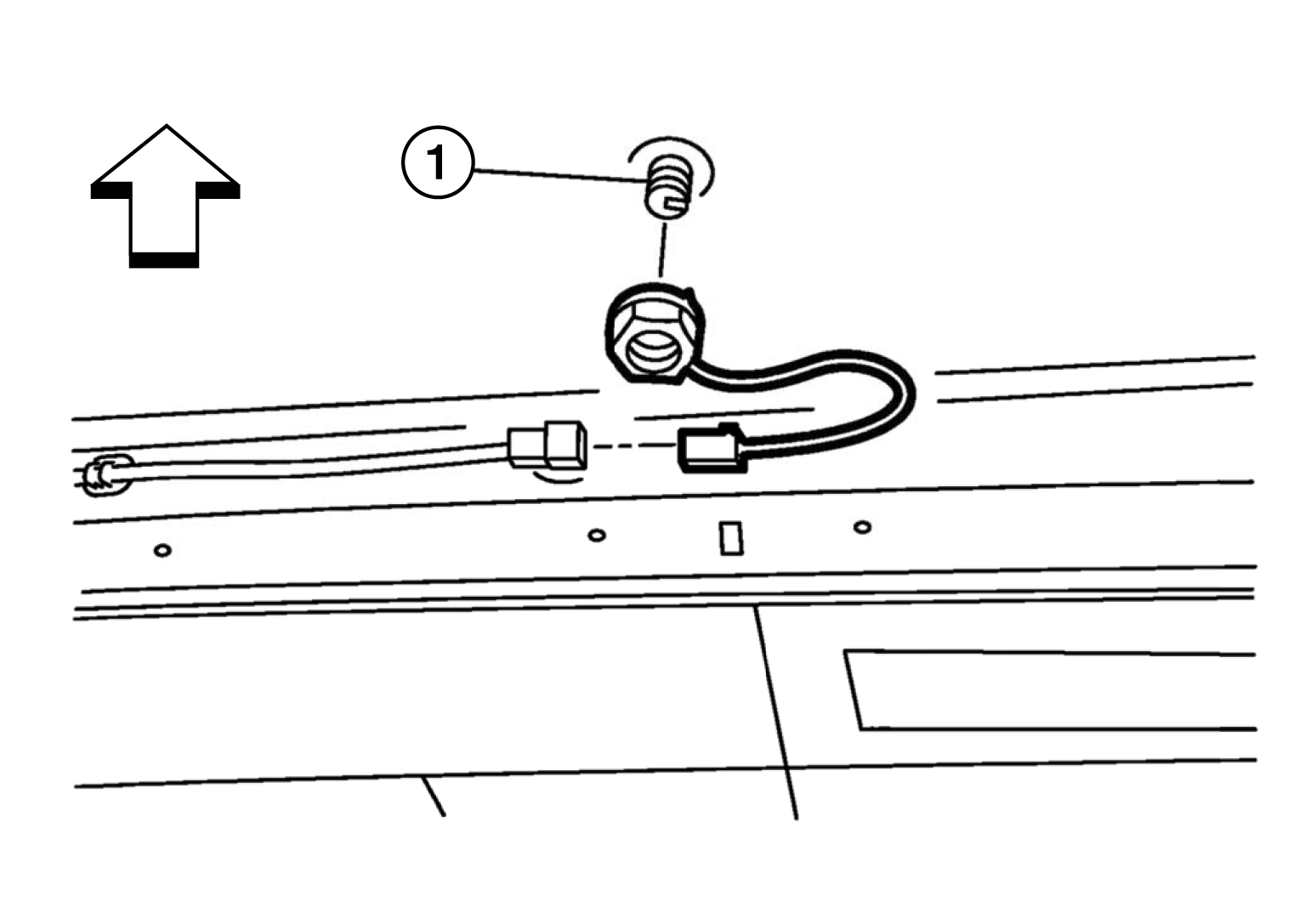

    G08947477Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front
