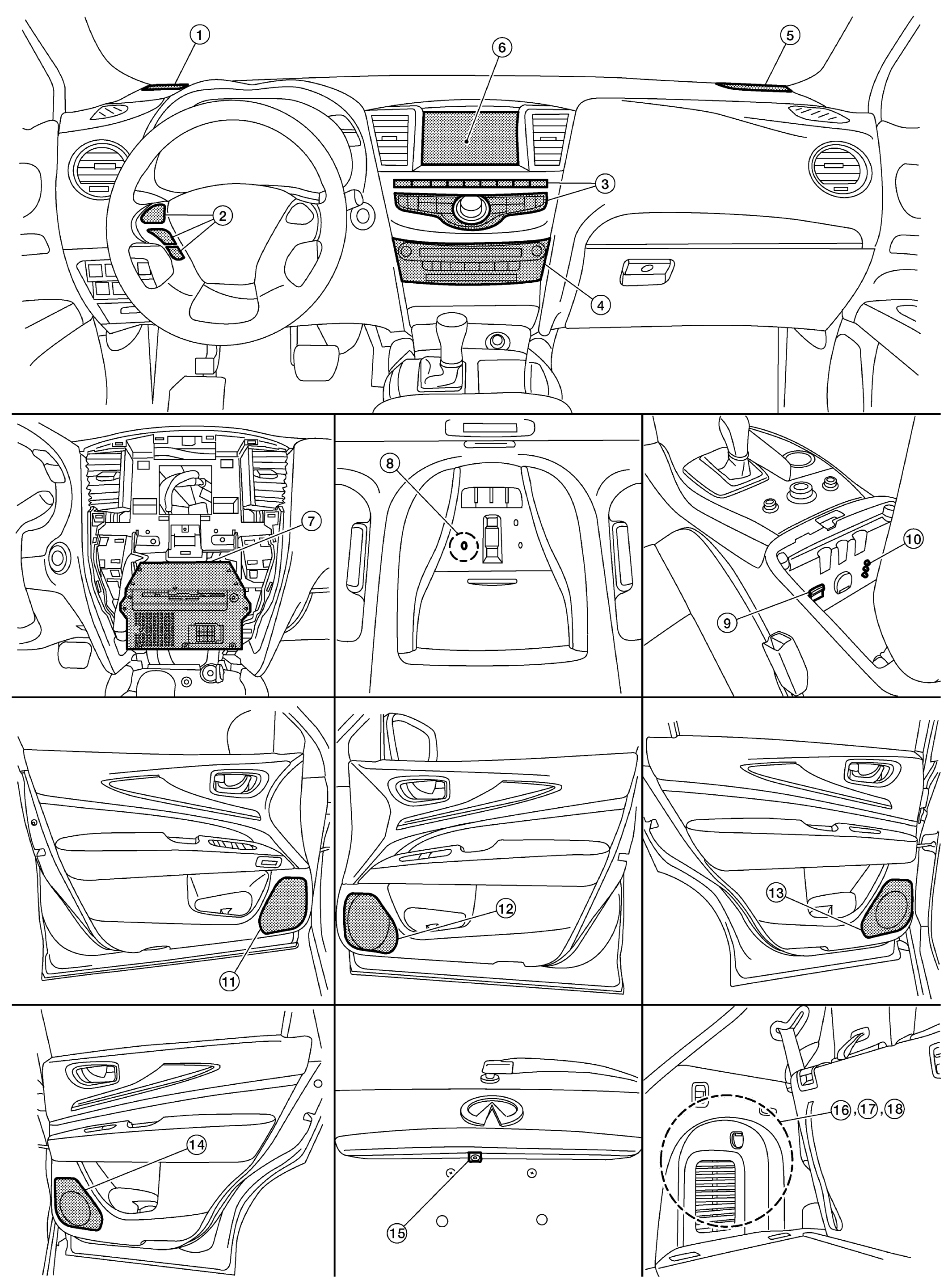

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Instrument panel tweeter LH | 2. | Steering switch | 3. | Multifunction switch |
| 4. | Preset switch | 5. | Instrument panel tweeter RH | 6. | Display unit |
| 7. | AV control unit (view with center stack removed) | 8. | Microphone | 9. | USB interface |
| 10. | Front auxiliary input jacks | 11. | Front door speaker LH | 12. | Front door speaker RH |
| 13. | Rear door speaker LH | 14. | Rear door speaker RH | 15. | Rear view camera |
| 16. | Bluetooth® control unit | 17. | Satellite radio tuner | 18. | Bluetooth® antenna |
