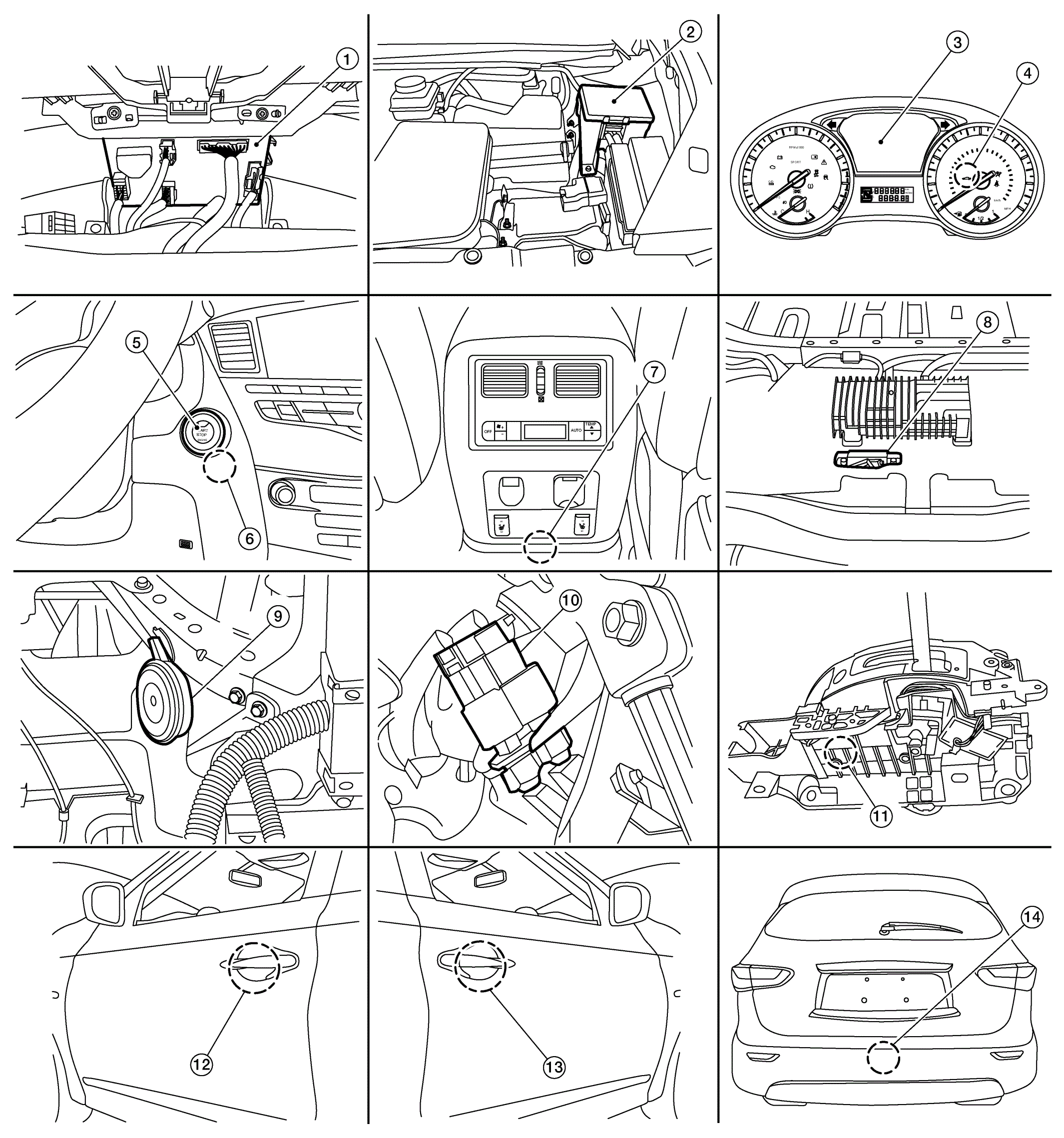

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | BCM (view with combination meter removed) | 2. | IPDM E/R | 3. | Combination meter |
| 4. | Security indicator lamp | 5. | Push-button ignition switch | 6. | NATS antenna amp. |
| 7. | Inside key antenna (console) | 8. | Inside key antenna (luggage room) (view with rear carpet removed) | 9. | Anti theft horn (view with right headlamp removed) |
| 10. | Stop lamp switch | 11. | CVT shift selector (park position switch) | 12. | Outside key antenna (drivers side) |
| 13. | Outside key antenna (passenger side) | 14. | Outside key antenna (rear bumper) |
