Combination Meter Control

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

A mode state of the INFINITI drive mode selector is displayed on the information display built in the meter.

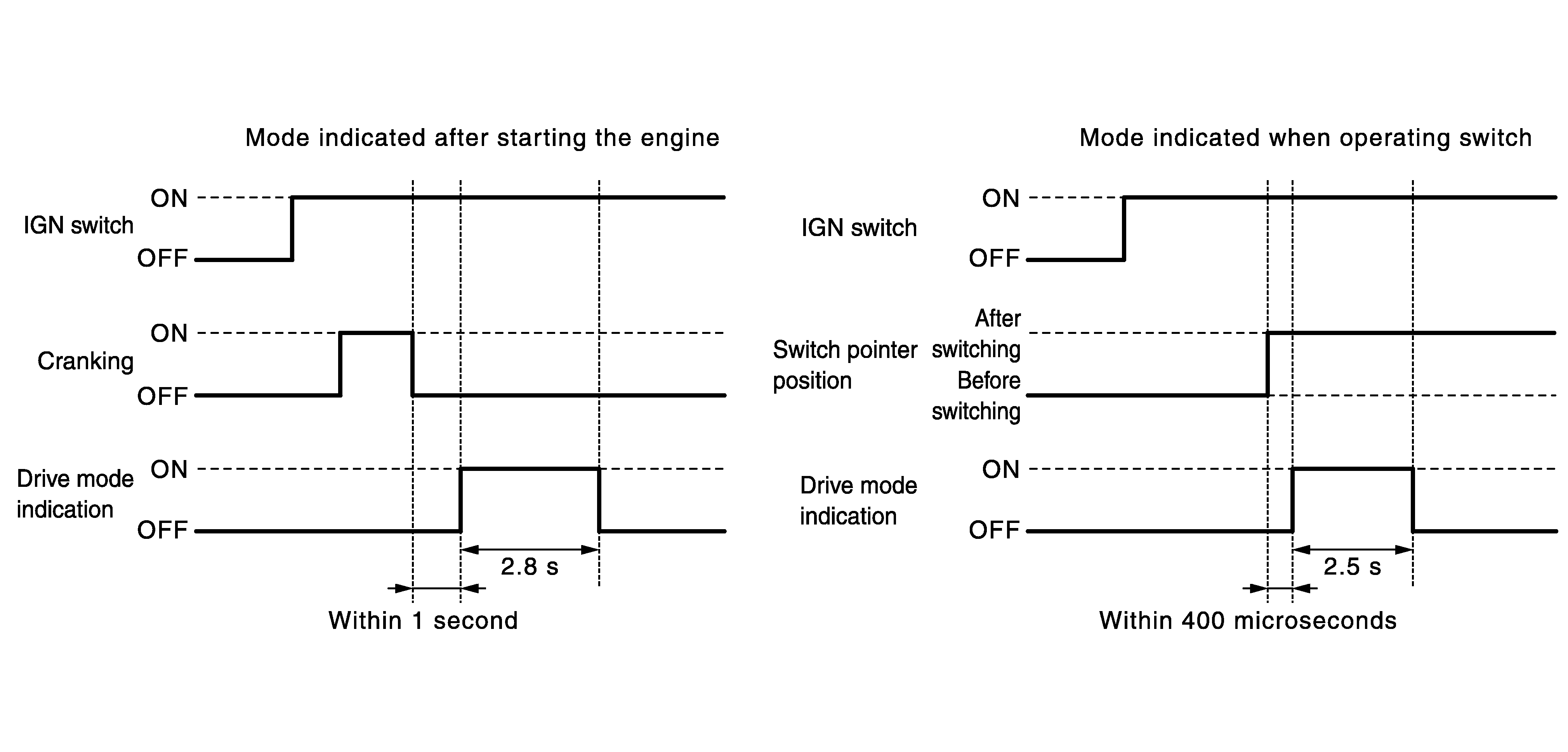

Drive mode indication pattern

G07022262Courtesy of NISSAN NORTH AMERICA, INC.
