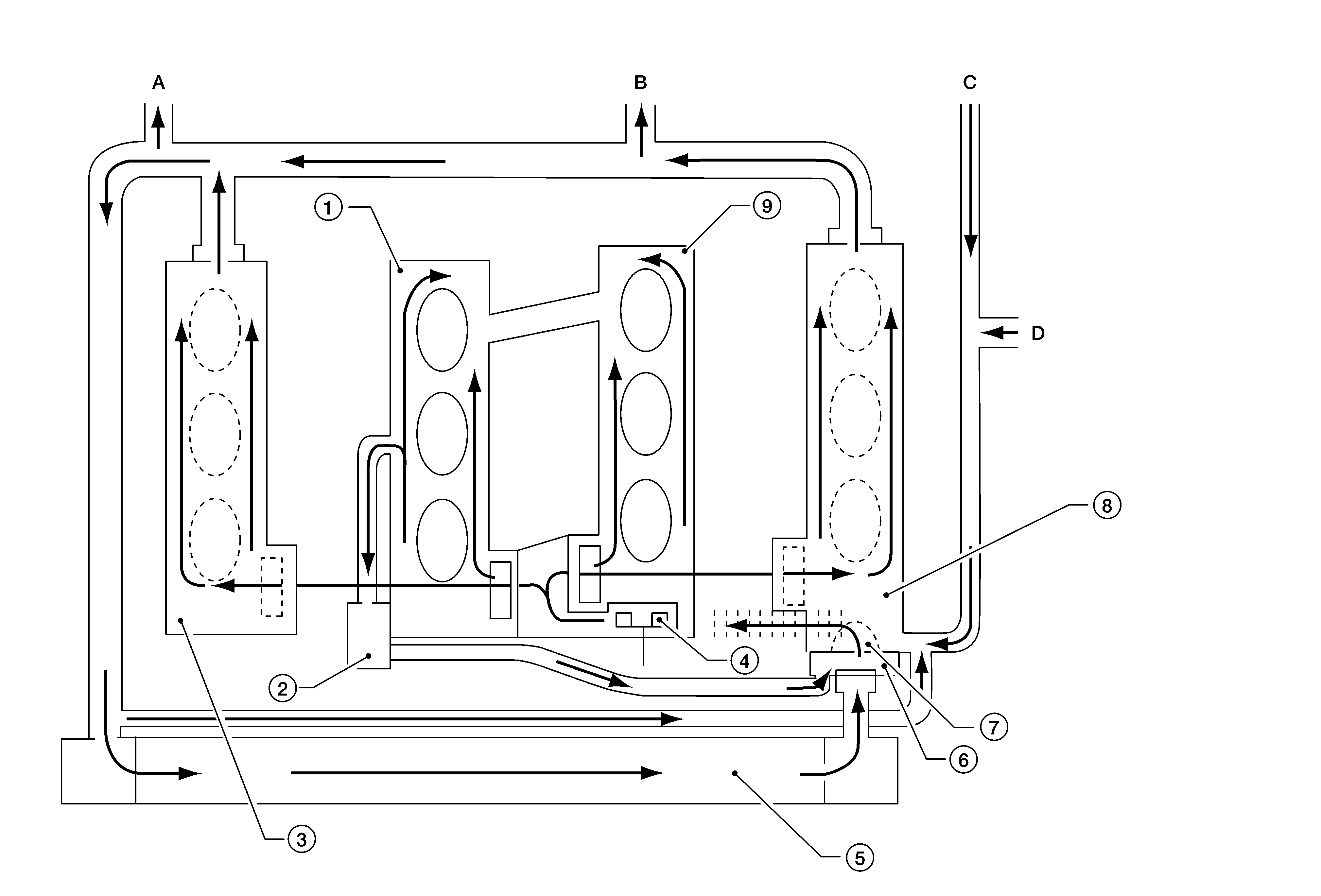

Cooling Circuit
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Cylinder block (RH) |
2. |
Oil cooler |
3. |
Cylinder head (RH) |
| 4. |
Water pump |
5. |
Radiator |
6. |
Water outlet |
| 7. |
Thermostat |
8. |
Cylinder head (LH) |
9. |
Cylinder block (LH) |
| A. |
To heater |
B. |
To electric throttle control |
C. |
From heater |
| D. |
From electric throttle control |
|
|
|
|
