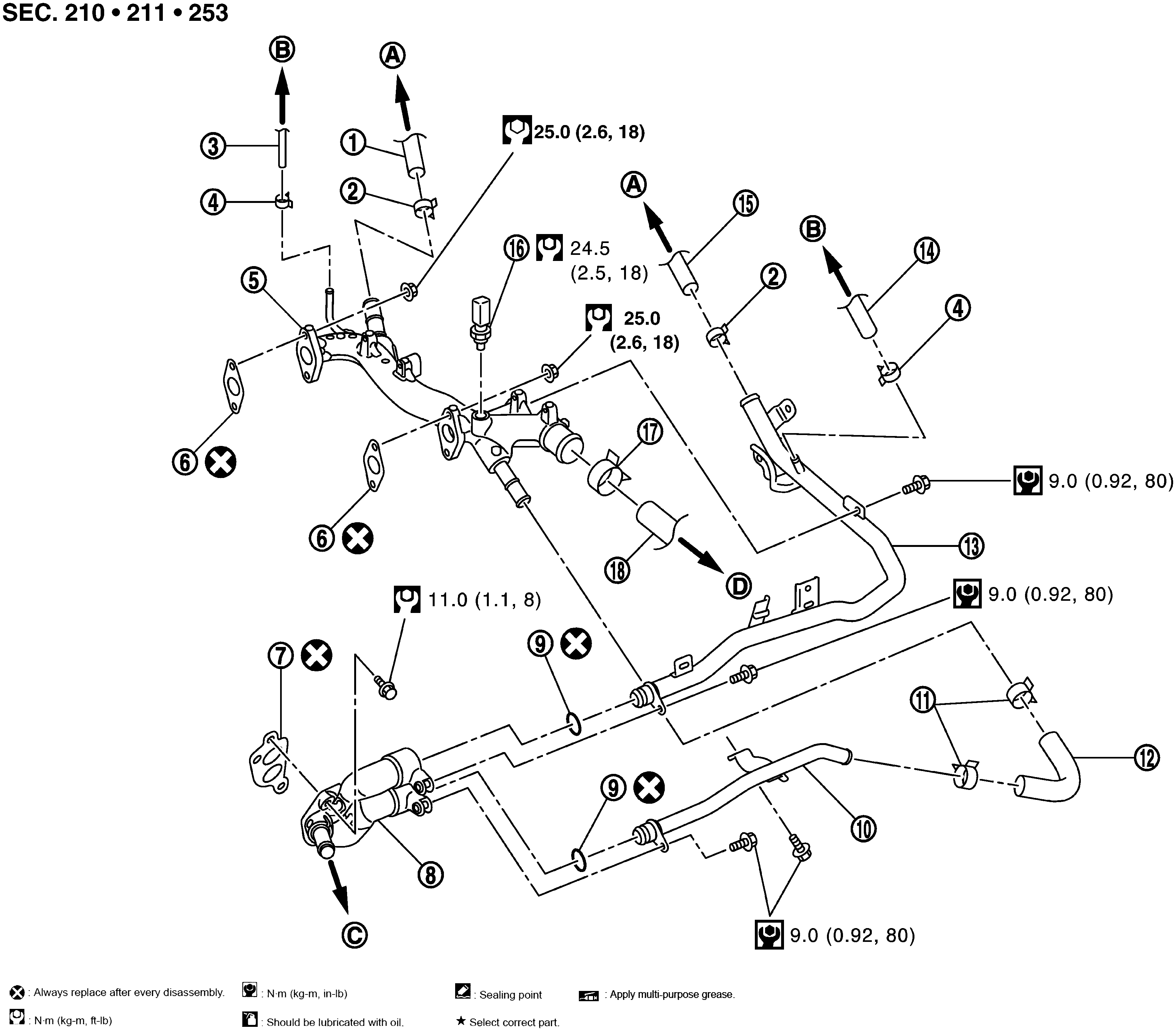

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Heater hose | 2. | Clamp | 3. | Water hose |
| 4. | Clamp | 5. | Water outlet | 6. | Gasket |
| 7. | Gasket | 8. | Water connector | 9. | O - ring |
| 10. | Water bypass pipe | 11. | Clamp | 12. | Water hose |
| 13. | Heater pipe | 14. | Water hose | 15. | Heater hose |
| 16. | Engine coolant temperature sensor | 17. | Clamp | 18. | Radiator hose (upper) |
| A. | To heater core | B. | To electric throttle control actuator | C. | To oil cooler |
| D. | To radiator |
