Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

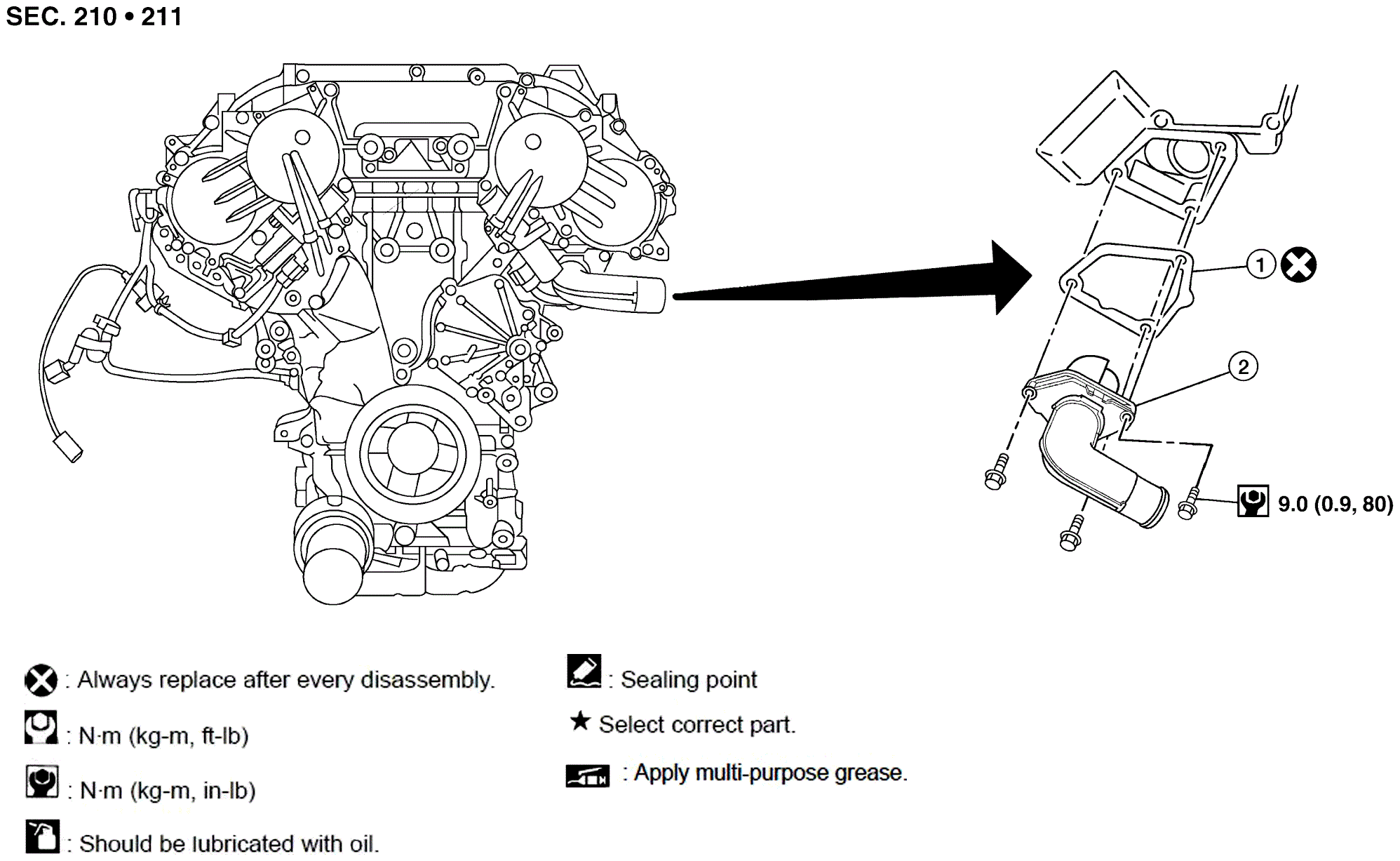

Fig 1: Thermostat And Thermostat Housing With Torque Specifications
GNSAWBIA0847GB-847Courtesy of NISSAN NORTH AMERICA, INC.
1. Gasket 2. Thermostat assembly (water inlet)
