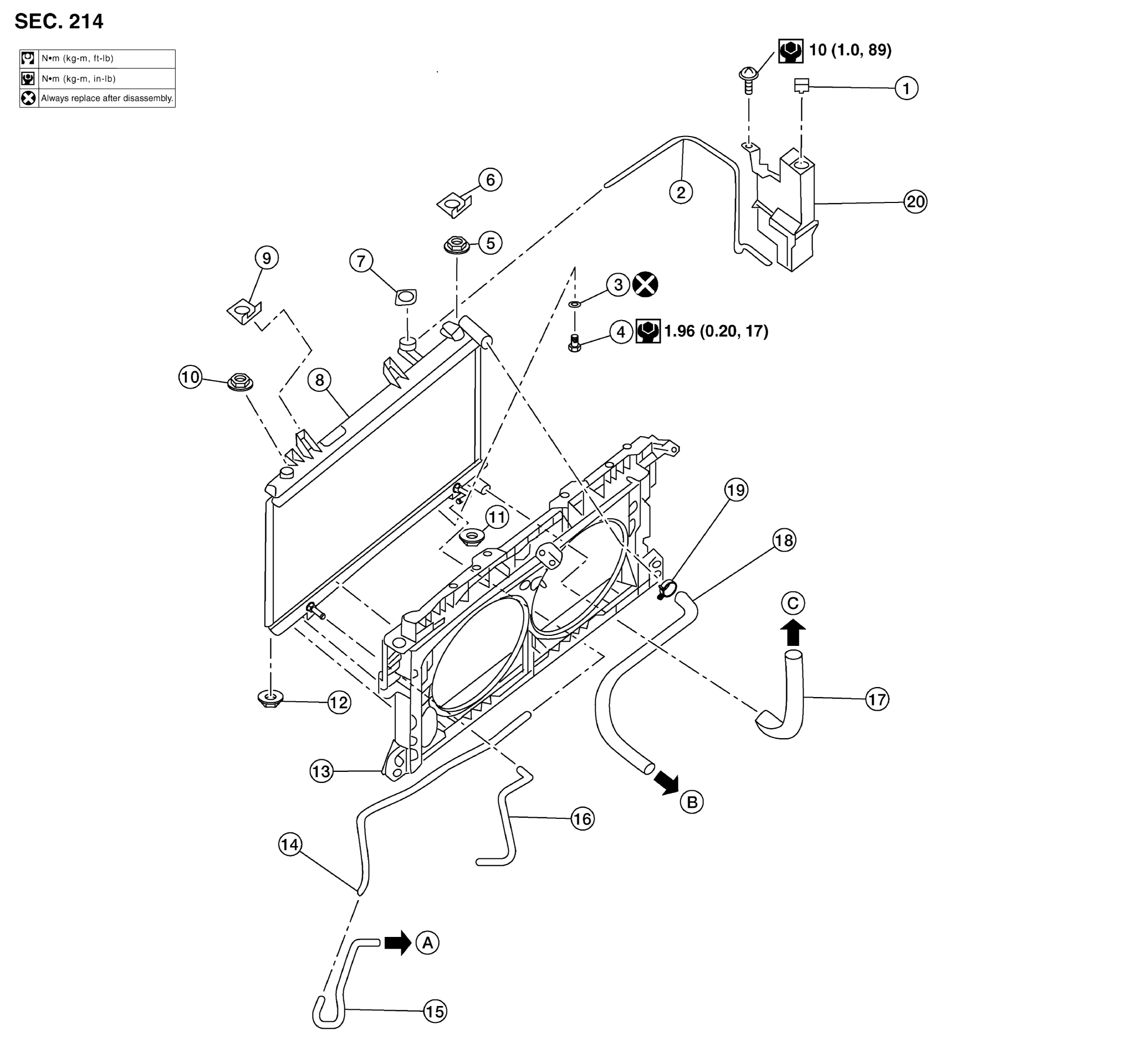

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Reservoir tank cap | 2. | Reservoir tank hose | 3. | O-ring |
| 4. | Drain plug | 5. | Mounting rubber (upper) (RH) | 6. | Radiator mount (upper) (RH) |
| 7. | Radiator cap | 8. | Radiator | 9. | Radiator mount (upper) (LH) |
| 10. | Mounting rubber (upper) (LH) | 11. | Mounting rubber (lower) (RH) | 12. | Mounting rubber (lower) (LH) |
| 13. | Radiator core support | 14. | CVT fluid cooler hose | 15. | CVT fluid cooler hose |
| 16. | CVT fluid cooler hose | 17. | Radiator hose (lower) | 18. | Radiator hose (upper) |
| 19. | Radiator hose clamp | 20. | Reservoir tank | A. | To CVT oil warmer |
| B. | To water outlet | C. | To water inlet |
