Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

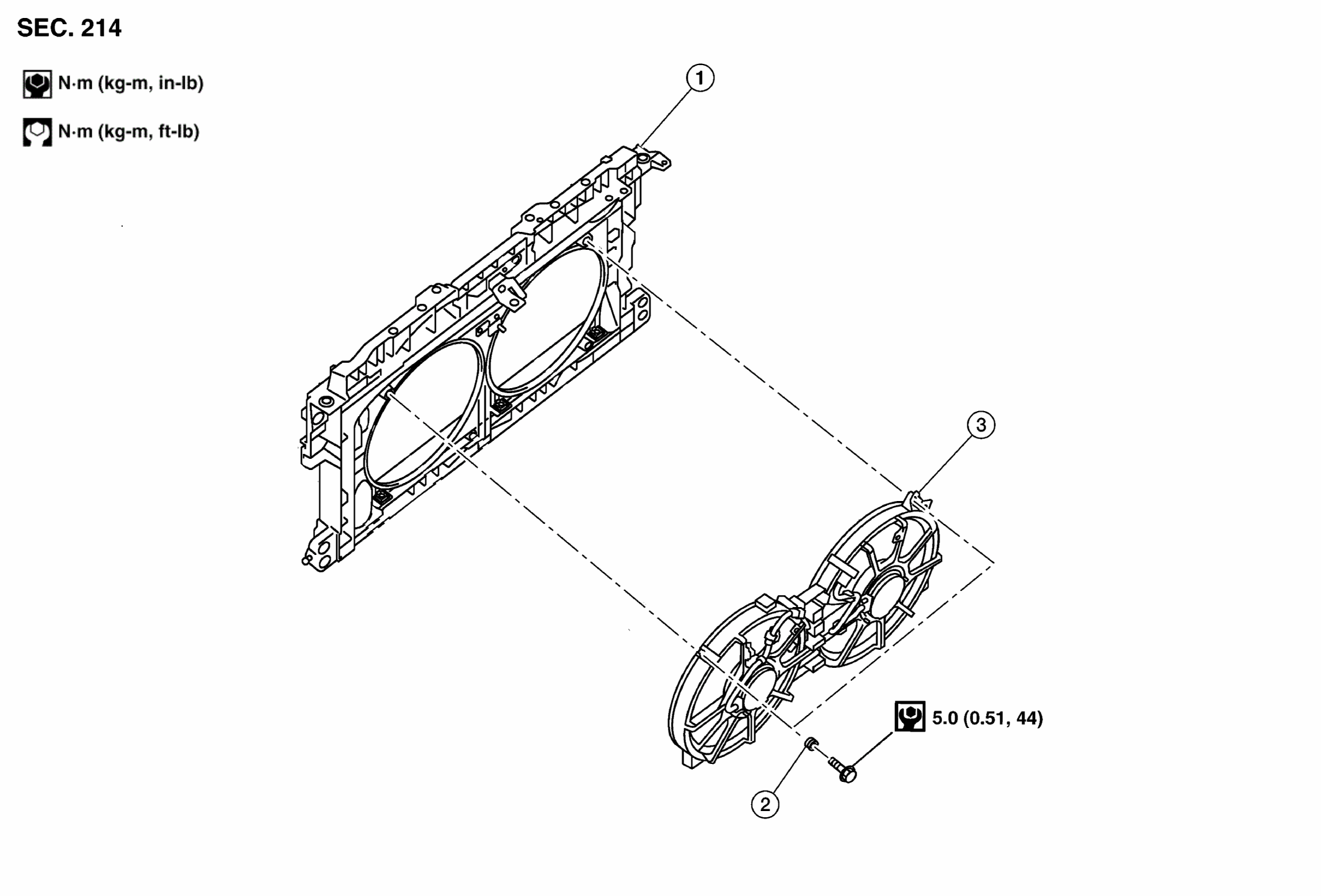

Fig 1: Cooling Fan With Torque Specifications
GNSAWBIA1631ZZ-631Courtesy of NISSAN NORTH AMERICA, INC.
1. Radiator core support 2. Grommet 3. Cooling fan motor assembly
