Clearance Of Oil Pump Parts

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

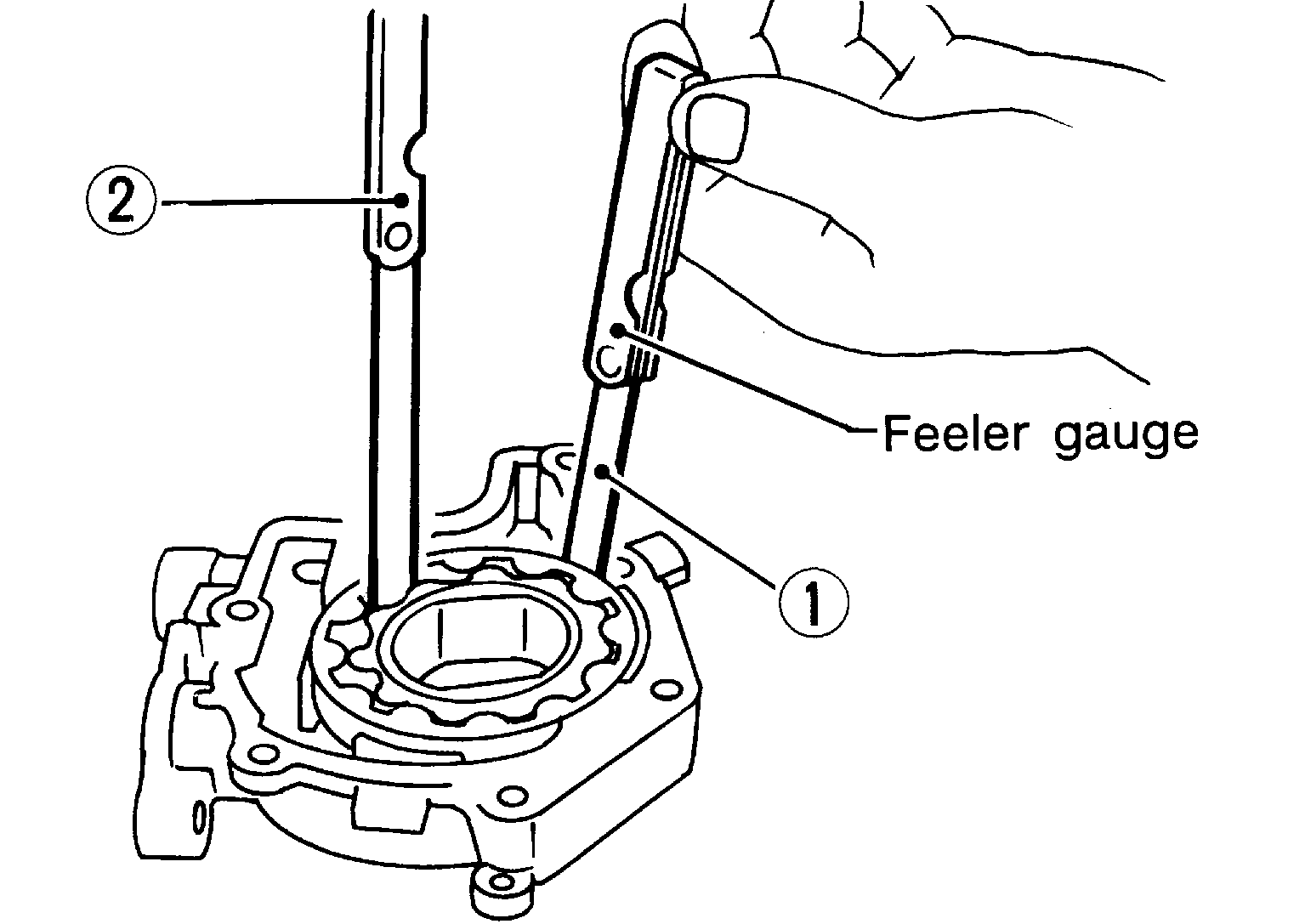

Measure clearance with feeler gauge.

Courtesy of NISSAN NORTH AMERICA, INC.
Clearance between outer rotor and oil pump body (position 1).

Standard : Refer to OIL PUMP .
Tip clearance between inner rotor and outer rotor (position 2).

Standard : Refer to OIL PUMP .

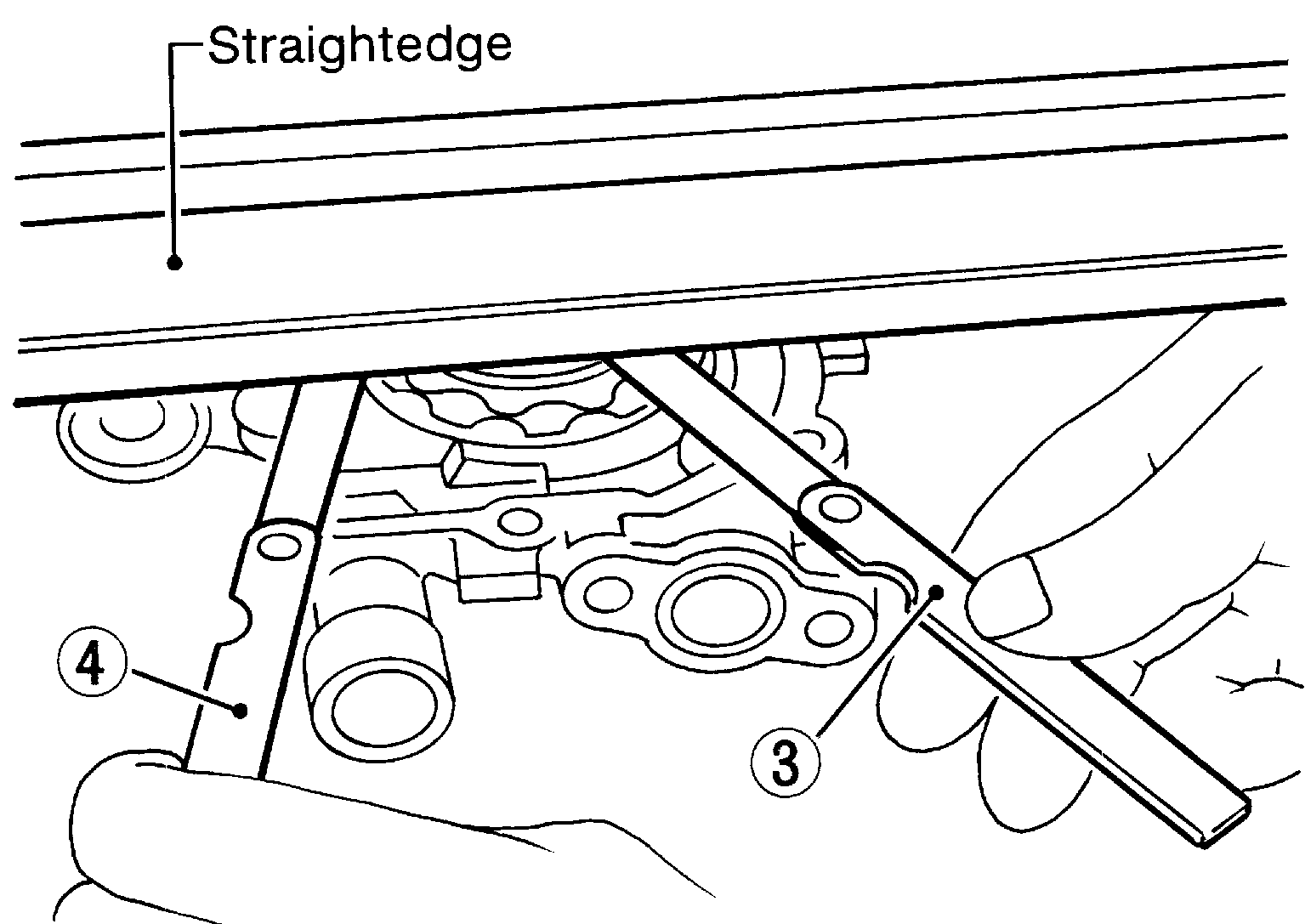

Measure clearance with feeler gauge and straightedge.

Courtesy of NISSAN NORTH AMERICA, INC.
Side clearance between inner rotor and oil pump body (position 3).

Standard : Refer to OIL PUMP .
Side clearance between outer rotor and oil pump body (position 4).

Standard

: Refer to OIL PUMP .

Calculate the clearance between inner rotor and oil pump body as follows:

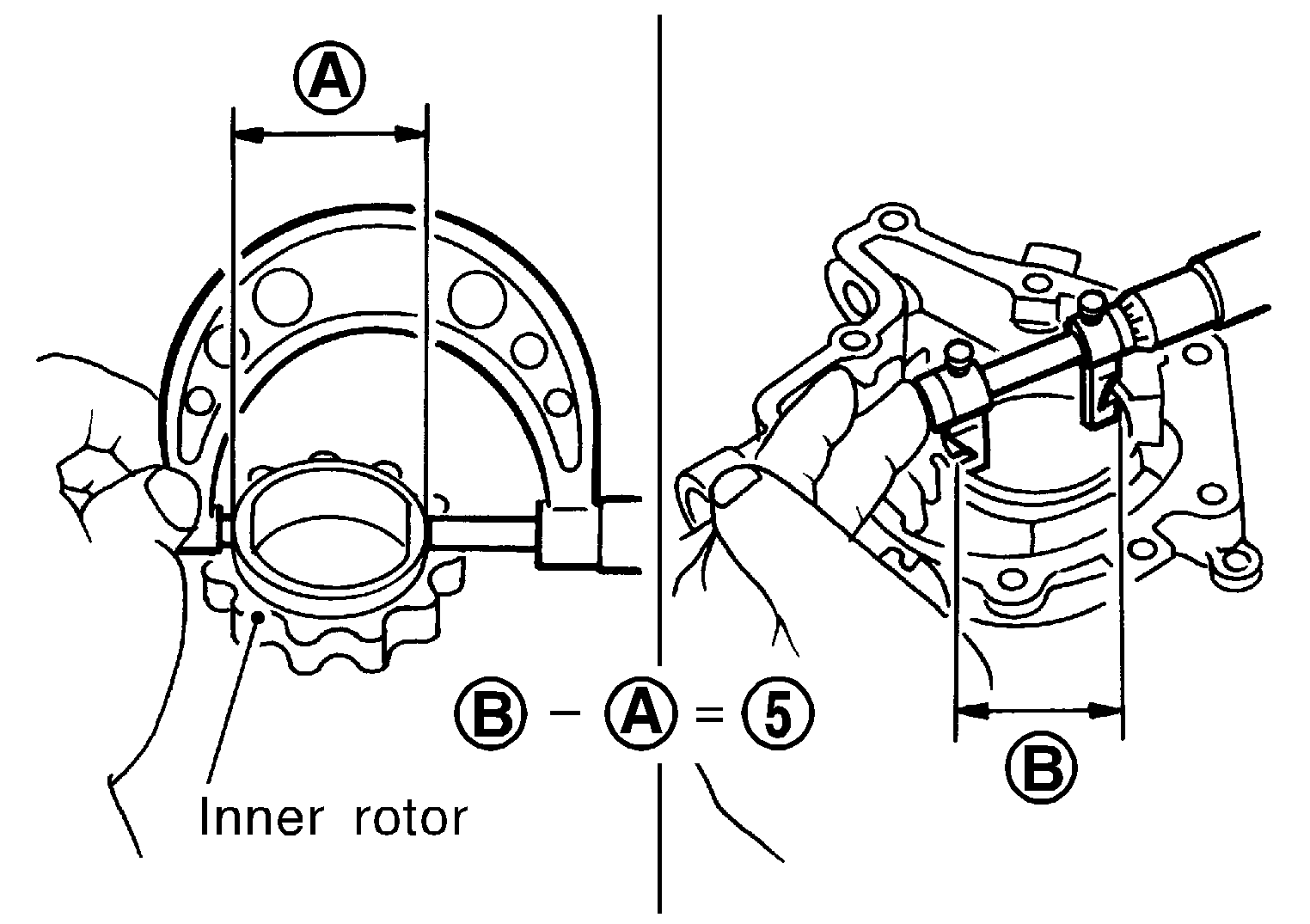

Measure the outer diameter of protruded portion of inner rotor (position A).

Courtesy of NISSAN NORTH AMERICA, INC.
Measure the inner diameter of oil pump body with inside micrometer (position B).
(clearance 5) = (inner diameter of oil pump body B) - (outer diameter of inner rotor A)

Standard : Refer to OIL PUMP .
If out of specifications, replace oil pump assembly.
