Disassembly And Assembly: Assembly
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Assembly is in the reverse order of disassembly.

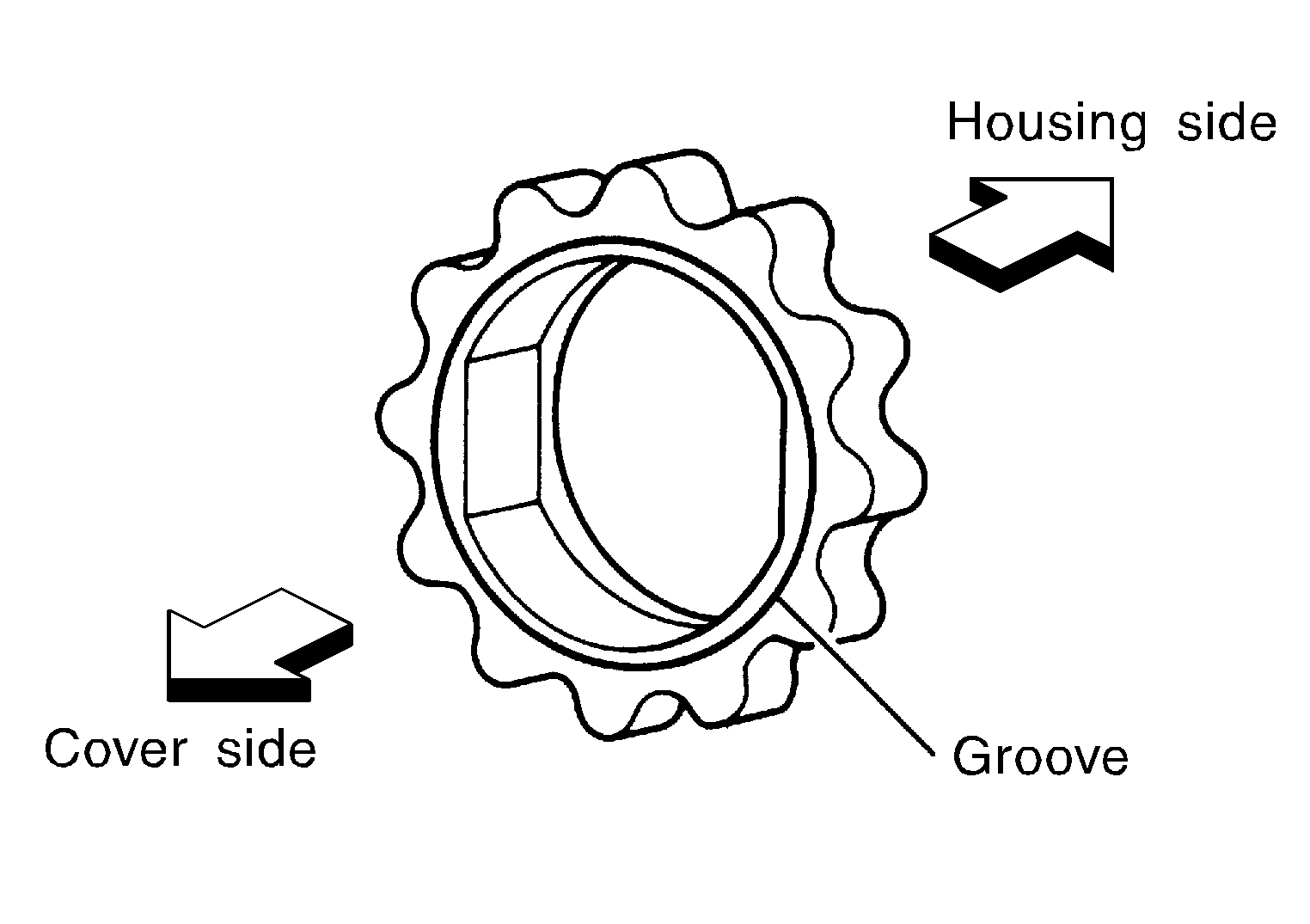

- Assemble the outer rotor in the correct vane orientation to rotation as noted during disassembly and the inner rotor with the groove on the oil pump cover side.CAUTION:
- Do not reuse O-ring.
- Before assembly apply new engine oil to the parts as specified.
