Component Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

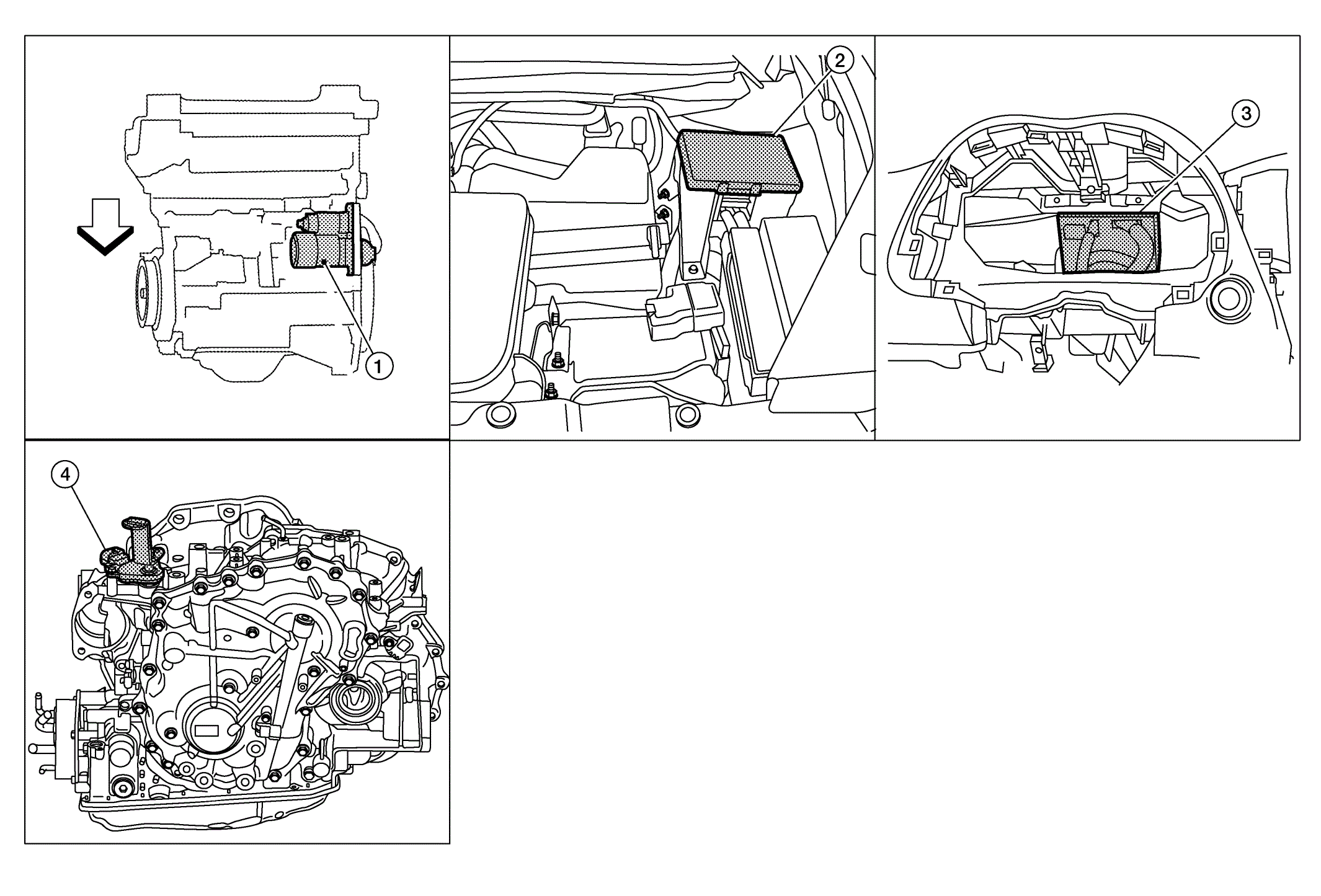

GNSAWBIA1633ZZ-633Courtesy of NISSAN NORTH AMERICA, INC.
ARROW Vehicle front
1. Starter motor 2. IPDM E/R 3. BCM (view with combination meter removed)
4. Transmission range switch
