Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

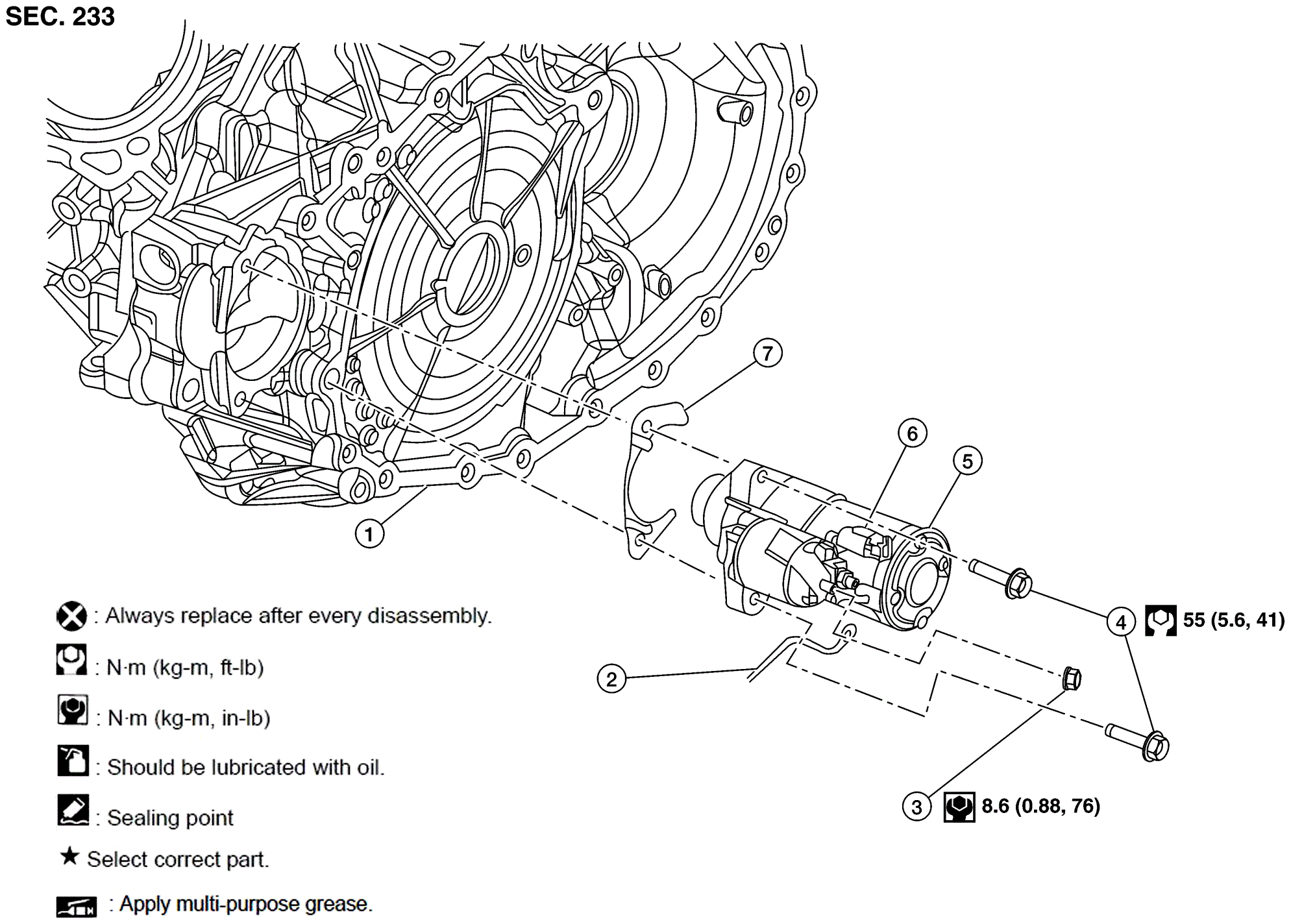

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Converter housing	2.	"B" terminal harness	3.	"B" terminal nut
4.	Starter motor bolt	5.	Starter motor	6.	"S" connector
7.	Shim
