Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

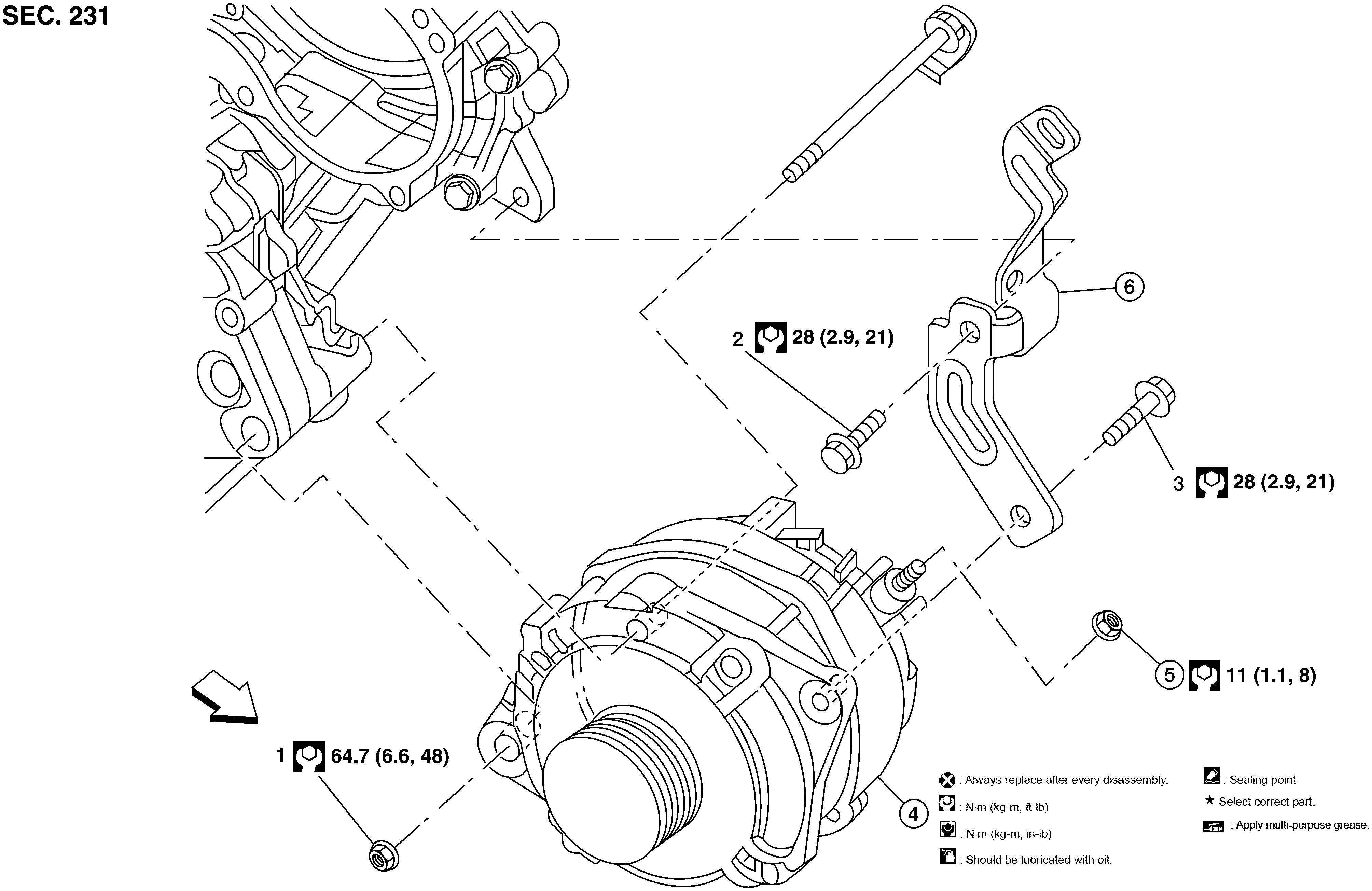

Fig 1: Generator With Torque Specifications Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 3	Tightening order	4.	Generator	5.	B terminal nut
6.	Generator bracket		Front
