Outer Diameter Of Piston Pin
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

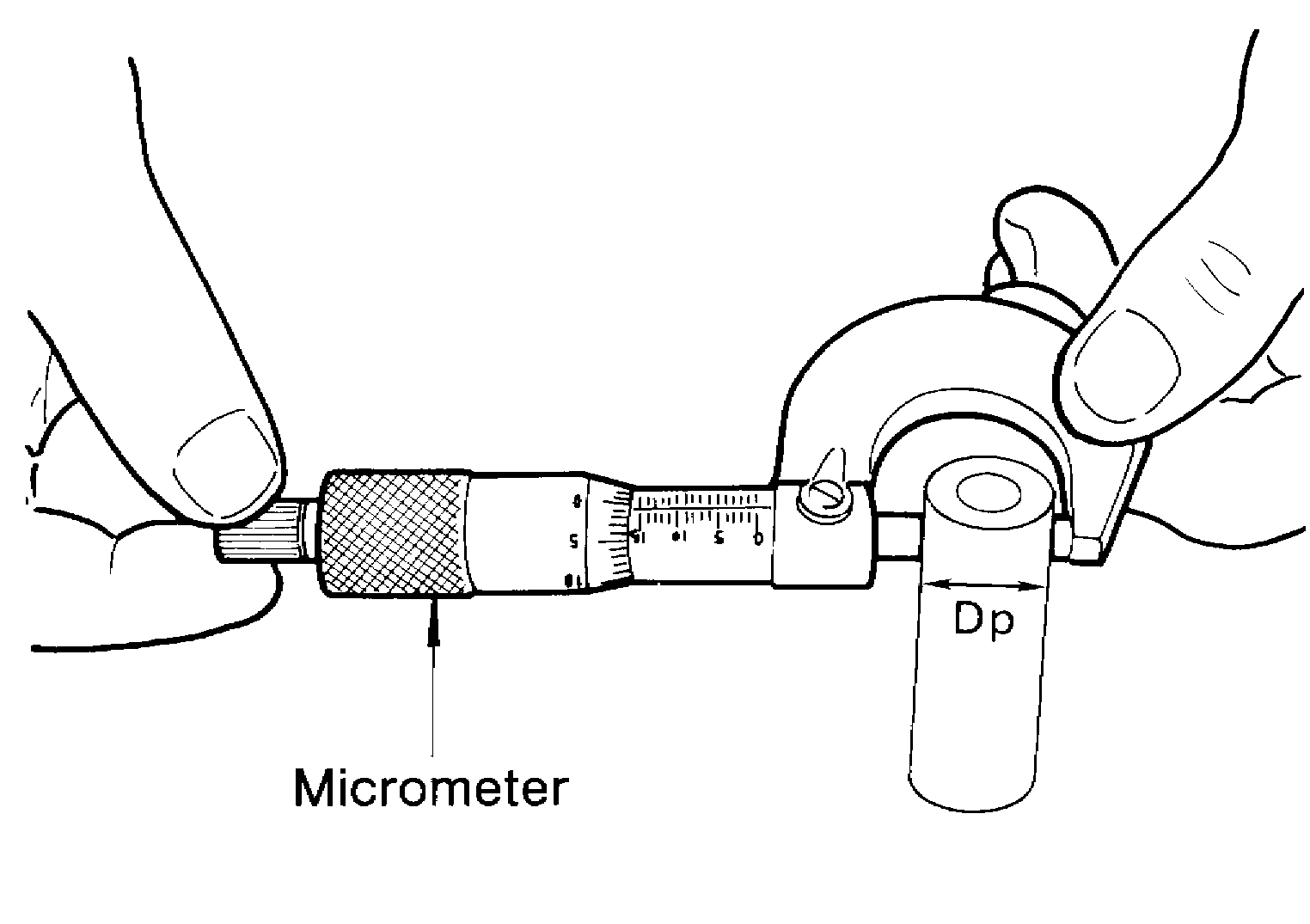

- Measure outer diameter of piston pin (Dp).
Standard diameter (Dp) Grade No. 0 : 21.989 - 21.995 mm (0.8657 - 0.8659 in) Grade No. 1 : 21.995 - 22.001 mm (0.8659 - 0.8662 in)
| : Engine front | |
| (A) | : Piston grade No. |
| (B) | : Piston front mark |
| (C) | : Oil hole |
| (D) | : Connecting rod front mark |
| (E) | : Cylinder No. |
| (F) | : Pin grade No. |
| (G) | : Crown I.D. code |
