Inner Diameter Of Piston Pin Hole
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

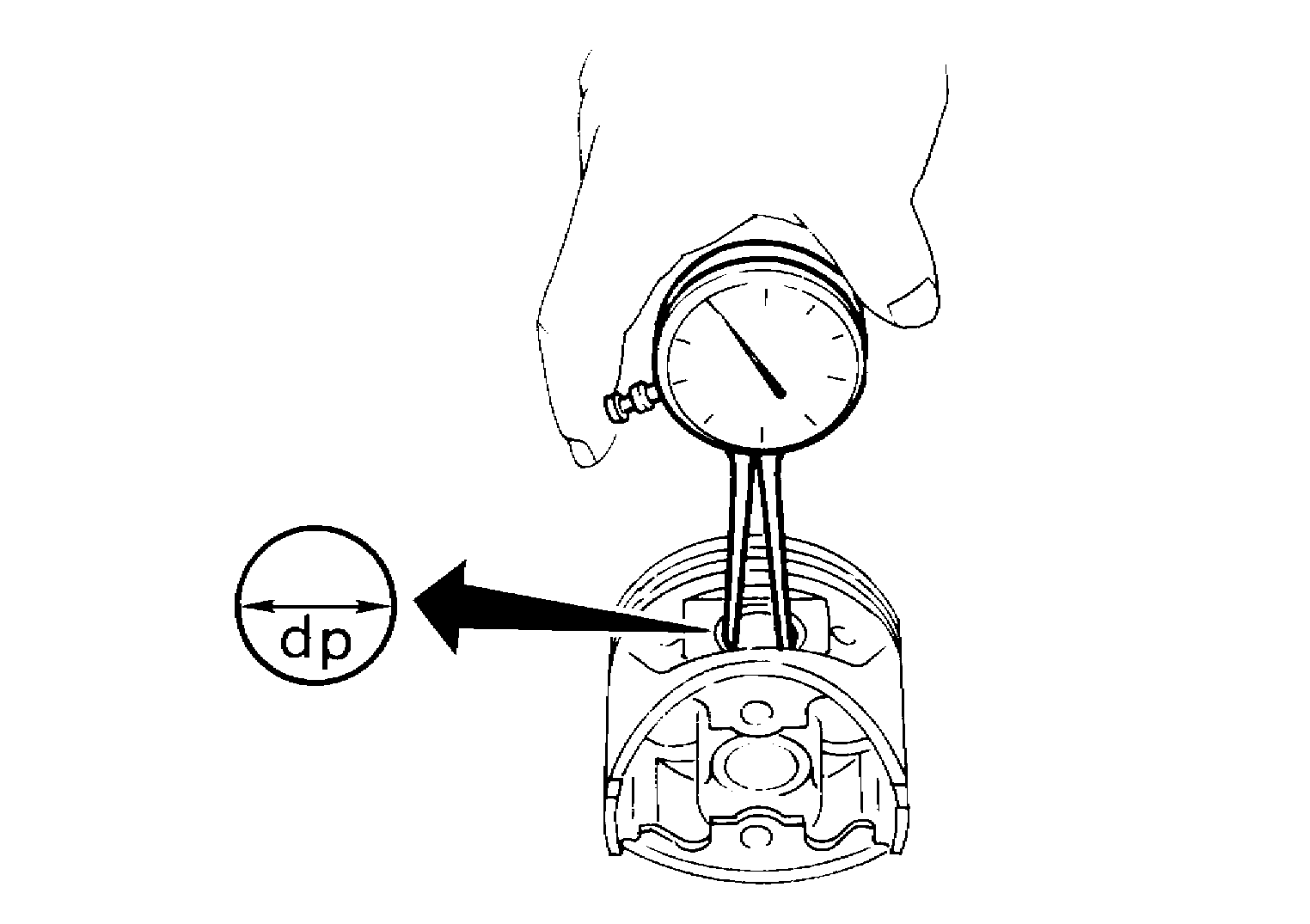

- Measure the inner diameter of piston pin hole (dp).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Standard diameter (dp) |
| Grade No. 0 |
: 21.993 - 21.999 mm (0.8659 - 0.8661 in) |
| Grade No. 1 |
: 21.999 - 22.005 mm (0.8661 - 0.8663 in) |
