Drive Plate RUNOUT
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

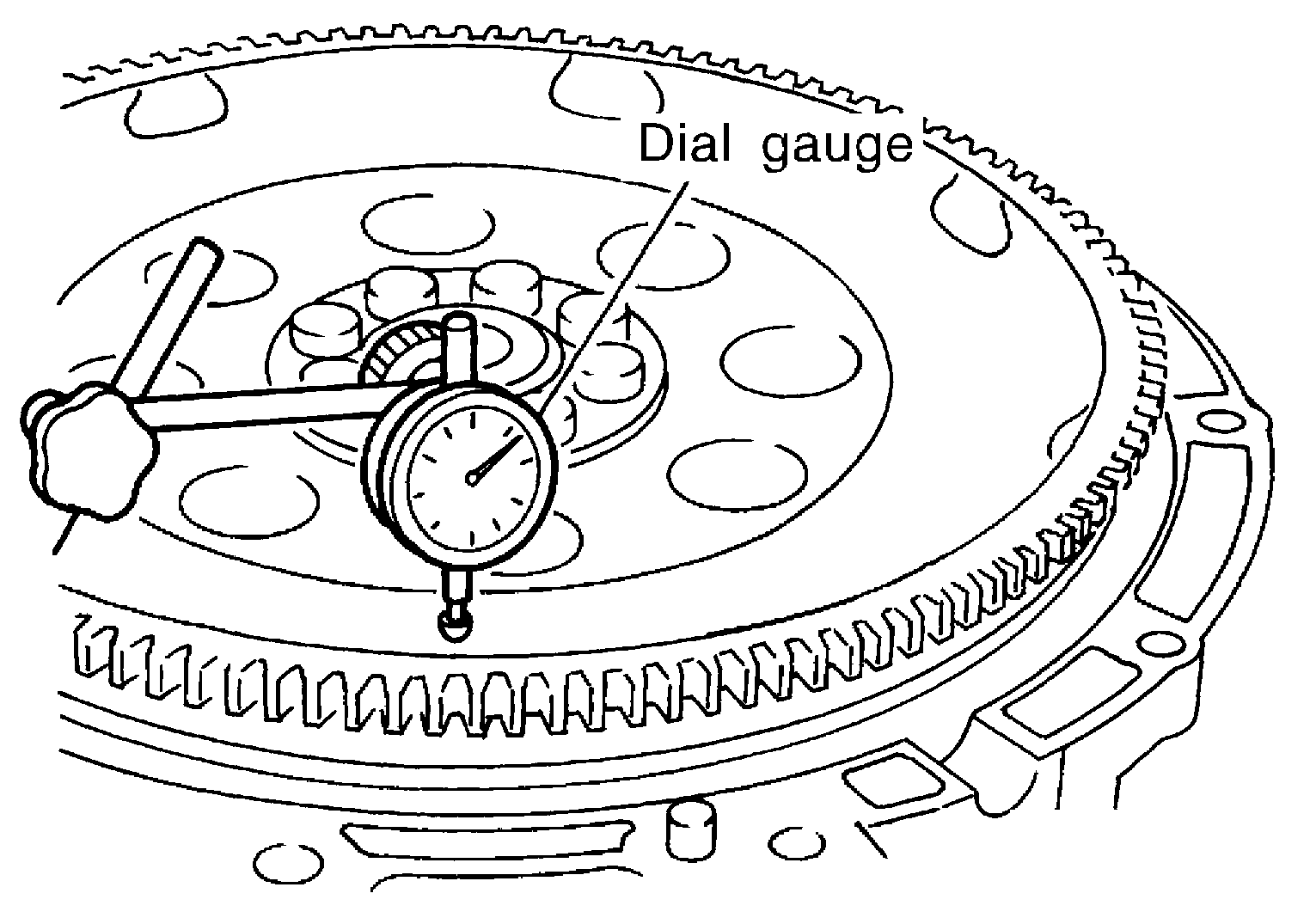

Use a suitable tool to measure the runout (Total Indicator Reading) as shown in illustration.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Drive plate torque converter surface |
: less than 0.35 mm (.0138 in) |
| Ring gear |
: less than 0.5 mm (.0197 in) |
CAUTION:
- The signal plate is built into the drive assembly. Be careful not to damage the signal plate, particularly the teeth.
- Check the drive plate and signal plate for deformation or cracks.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Keep all magnetized objects away from the signal plate, particularly the teeth.
