Outer Diameter Of Piston Pin
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

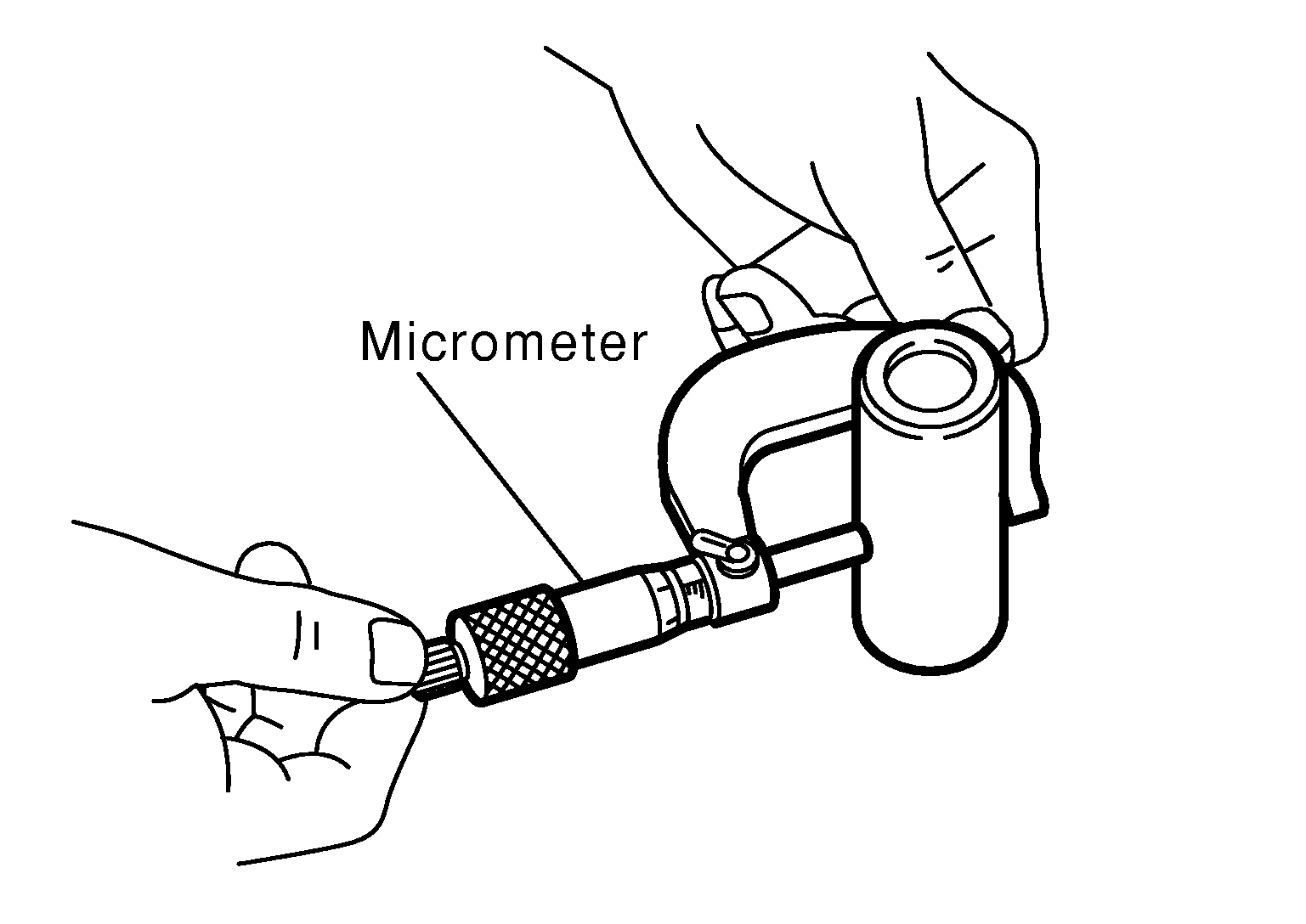

- Measure outer diameter of piston pin.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Standard |
Grade No. 0 |
| |
: 21.989 - 21.995 mm (0.8657 - 0.8659 in) |
| |
Grade No. 1 |
| |
: 21.995 - 22.001 mm (0.8659 -0.8662 in) |
