Inner Diameter Of Connecting Rod (Small End)
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

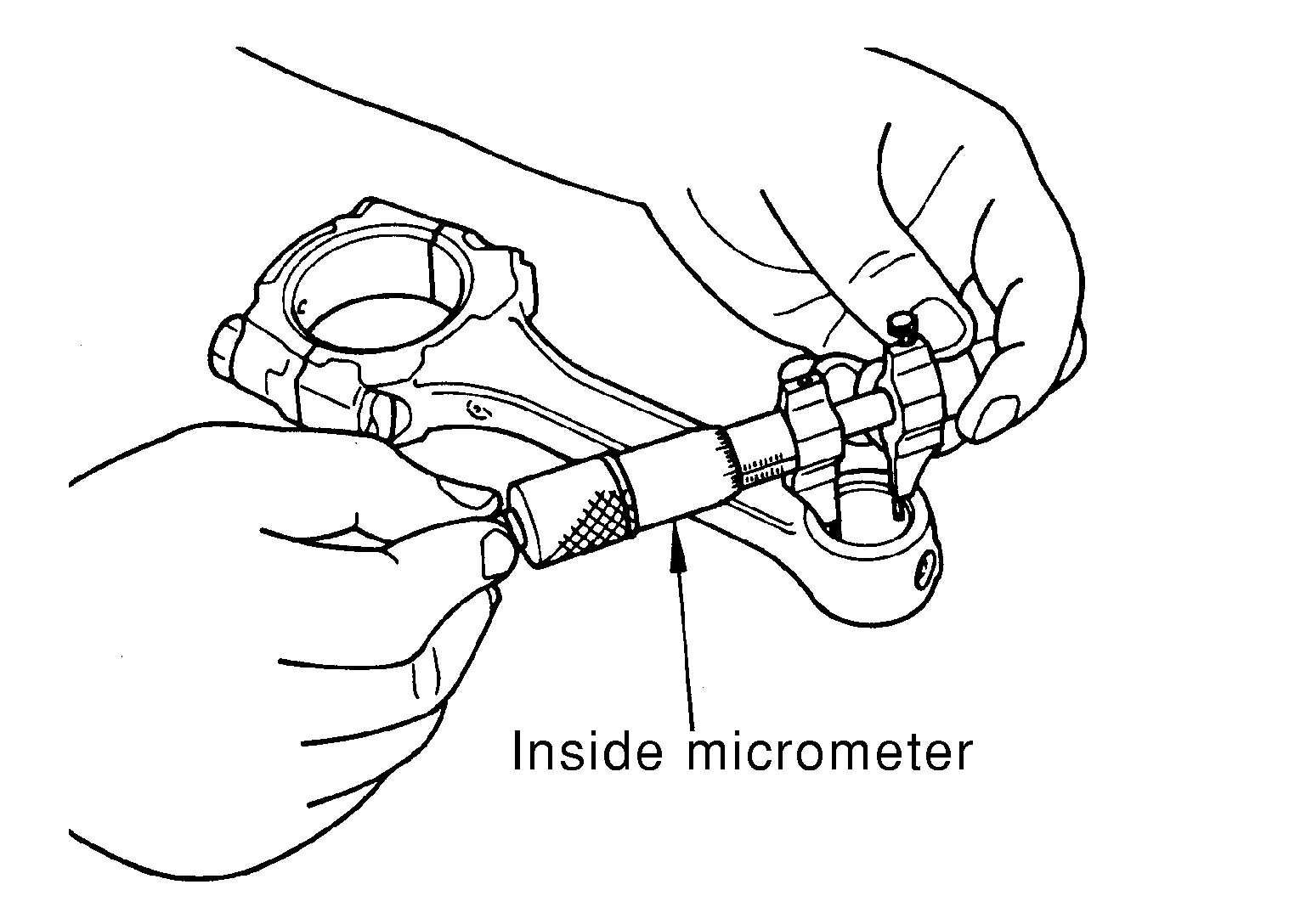

- Measure inner diameter of piston pin bushing.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Standard |
Grade No. 0 |
| |
: 22.000 - 22.006 mm (0.8661 - 0.8664 in) |
| |
Grade No. 1 |
| |
: 22.006 - 22.012 mm (0.8664 - 0.8666 in) |
