Connecting Rod Bend And Torsion
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

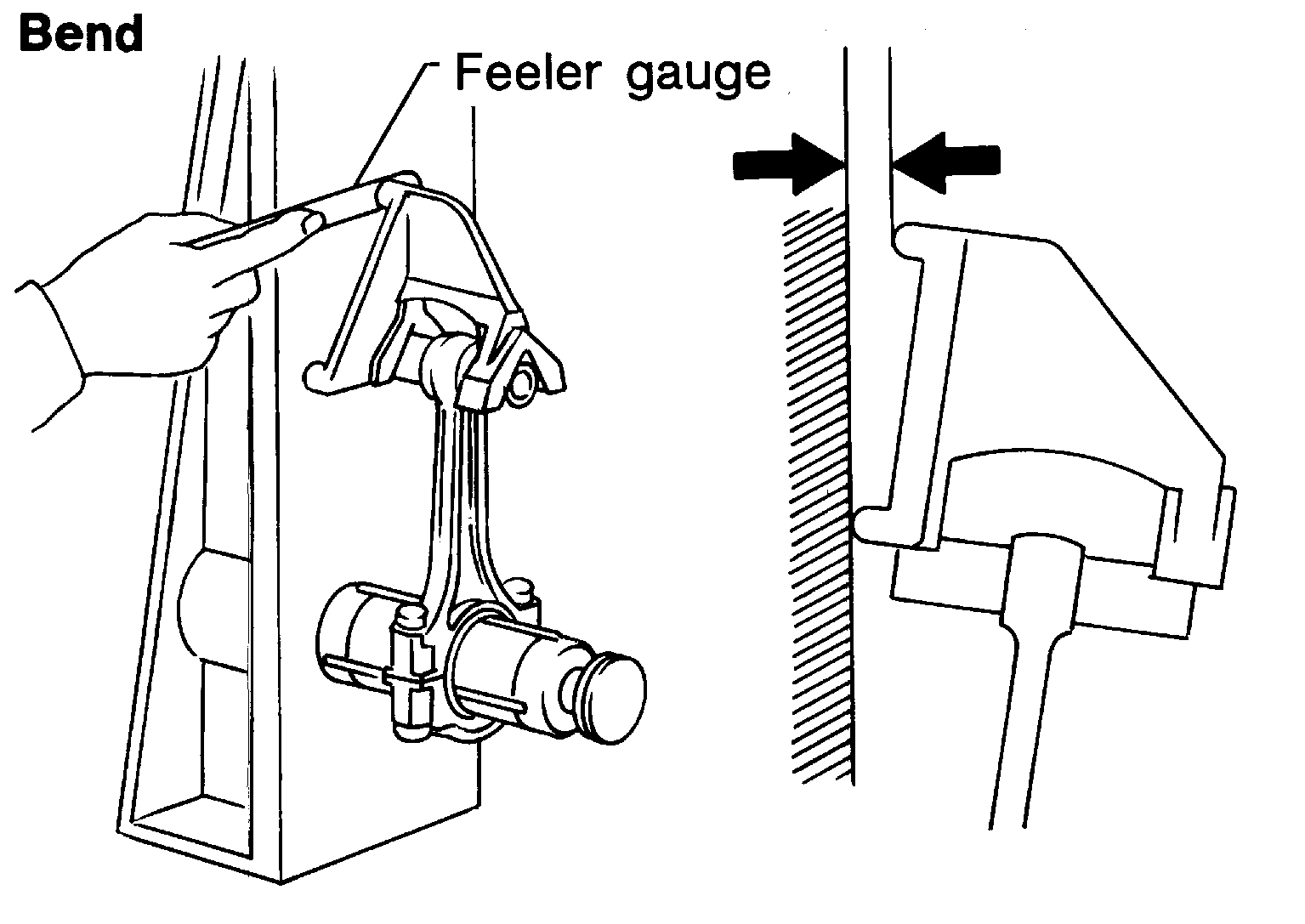

| Bend |
: Limit 0.15 mm (0.0059 in) per 100 mm (3.94 in) length |

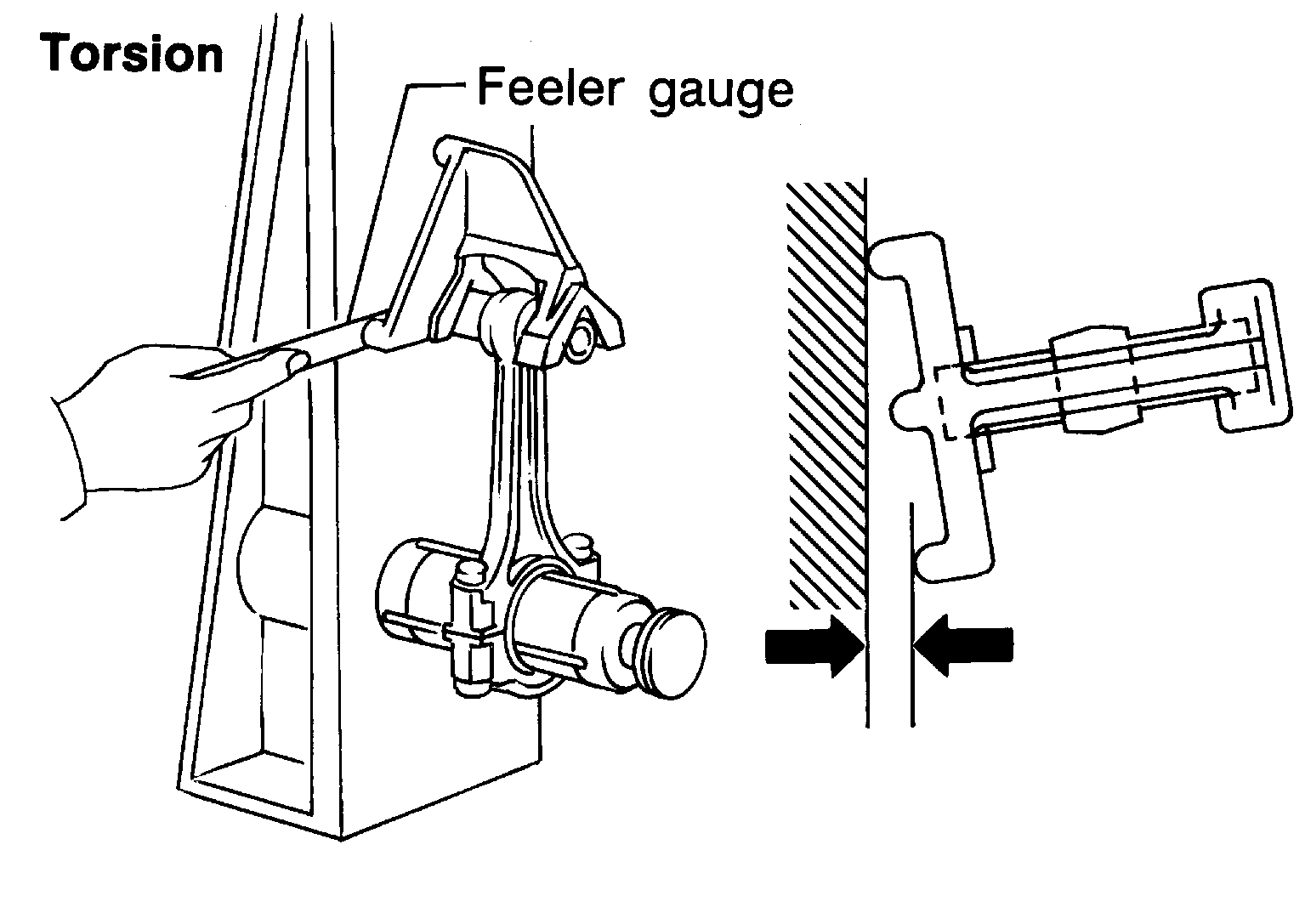

| Torsion |
: Limit 0.30 mm (0.0118 in) per 100 mm (3.94 in) length |
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- If it exceeds the limit, replace connecting rod assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
