Connecting Rod Bearing Housing Diameter (Big End)
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

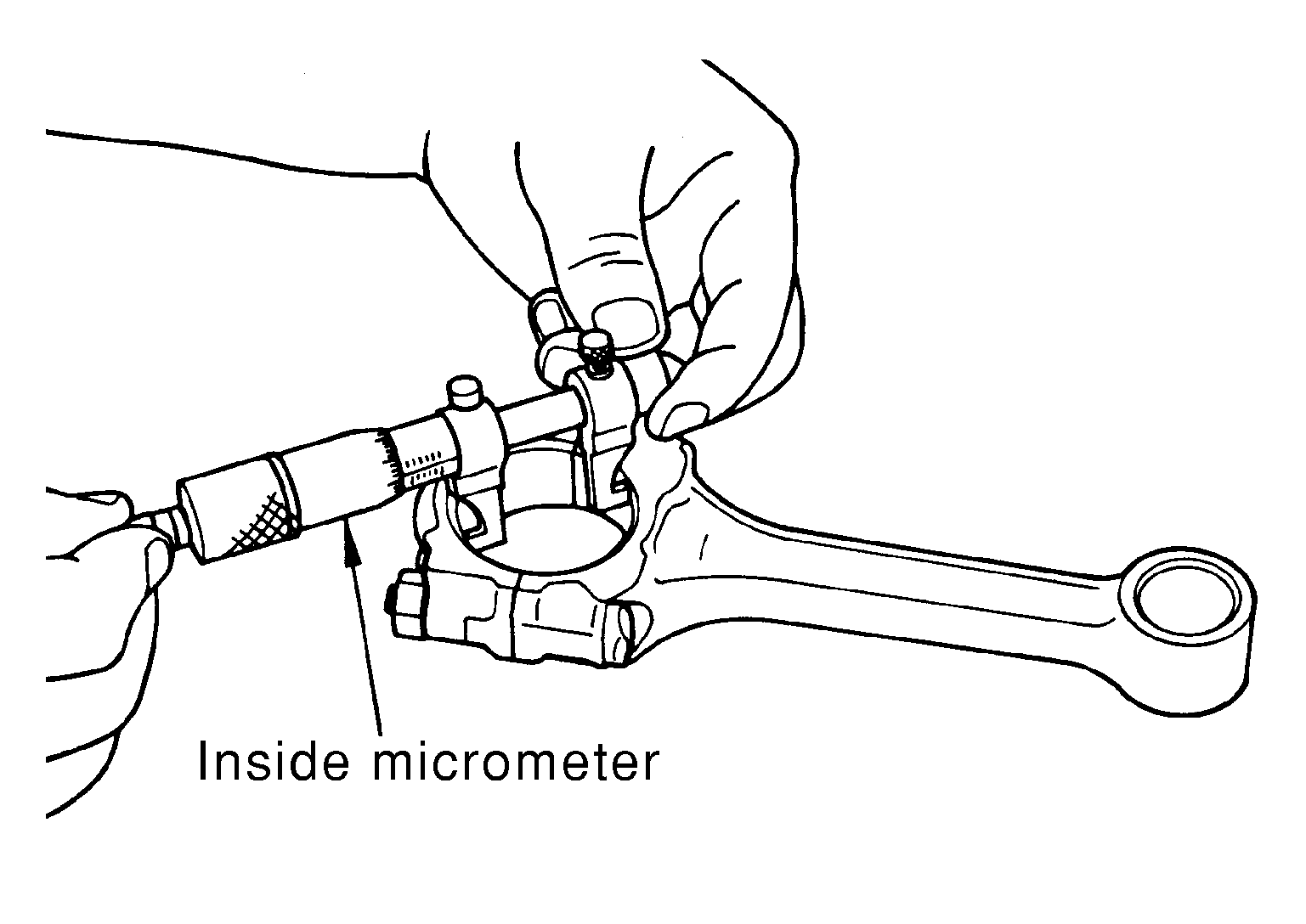

- Install the connecting rod cap without the connecting rod bearing installed. After tightening the connecting rod nut to the specified torque, measure the connecting rod bearing housing big end inner diameter using an inside micrometer.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Standard |
: 55.000 - 55.013 mm (2.1654 - 2.1659 in) |
