Method A (Using Bore Gauge And Micrometer)

Main Bearing

1. Set the main bearings in their proper positions on the cylinder block and the main bearing cap.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Install the main bearing caps and bearing beam to the cylinder block. Tighten all bolts in the numerical order as specified. Refer to DISASSEMBLY AND ASSEMBLY .
3. Measure the inner diameters (A) of each main bearing as shown in illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

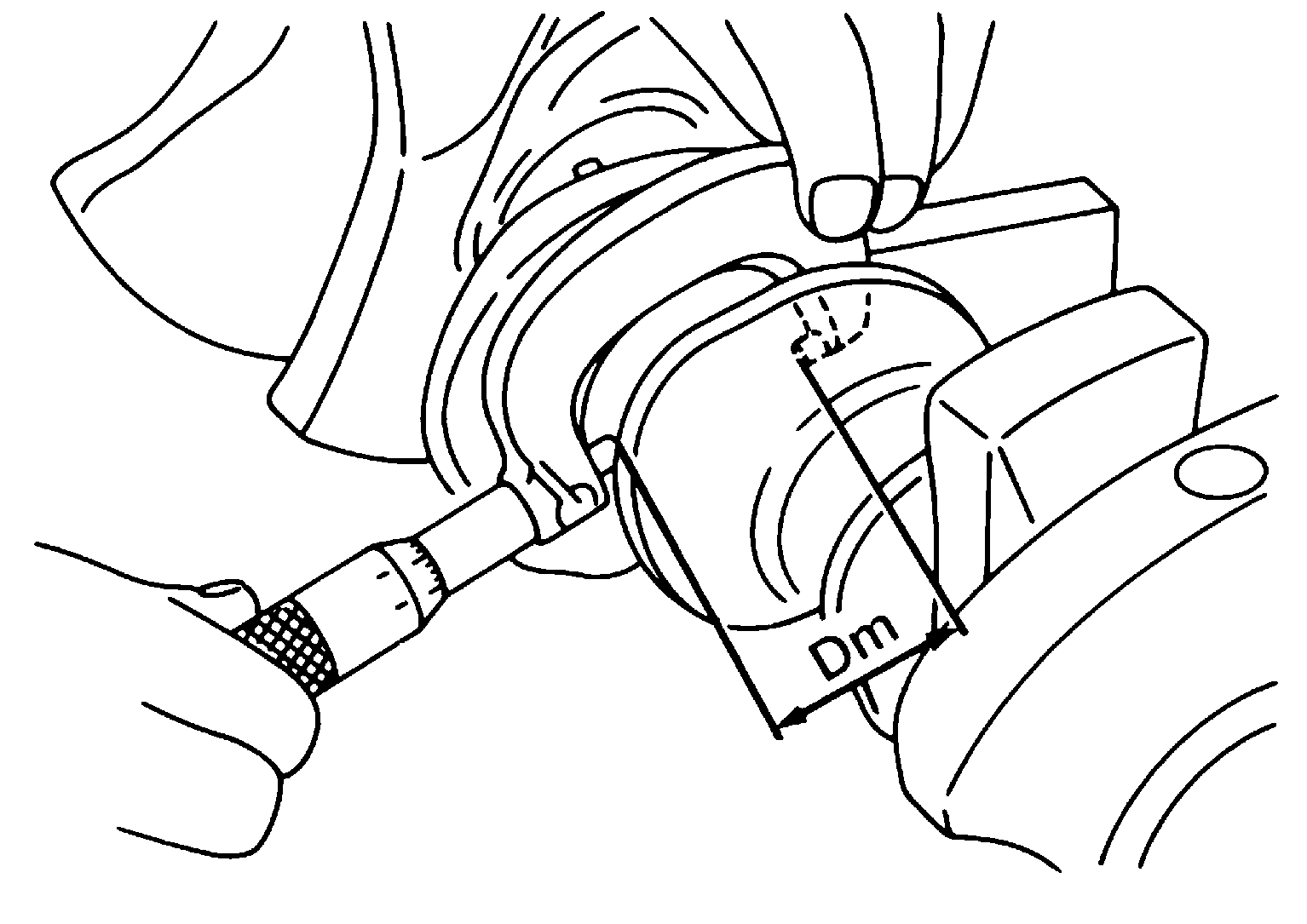

4. Measure the outer diameters (Dm) of each crankshaft main journal as shown in illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

5. Calculate the main bearing clearance.

   Main bearing clearance = (A)- (Dm)

   Standard	: 0.035 - 0.045 mm (0.0014 - 0.0018 in)
   Limit	: 0.065 mm (0.0026 in)

   • If it exceeds the limit, replace the bearing.
   • If clearance cannot be adjusted using any standard bearing grade, grind crankshaft journal and use an undersized bearing.

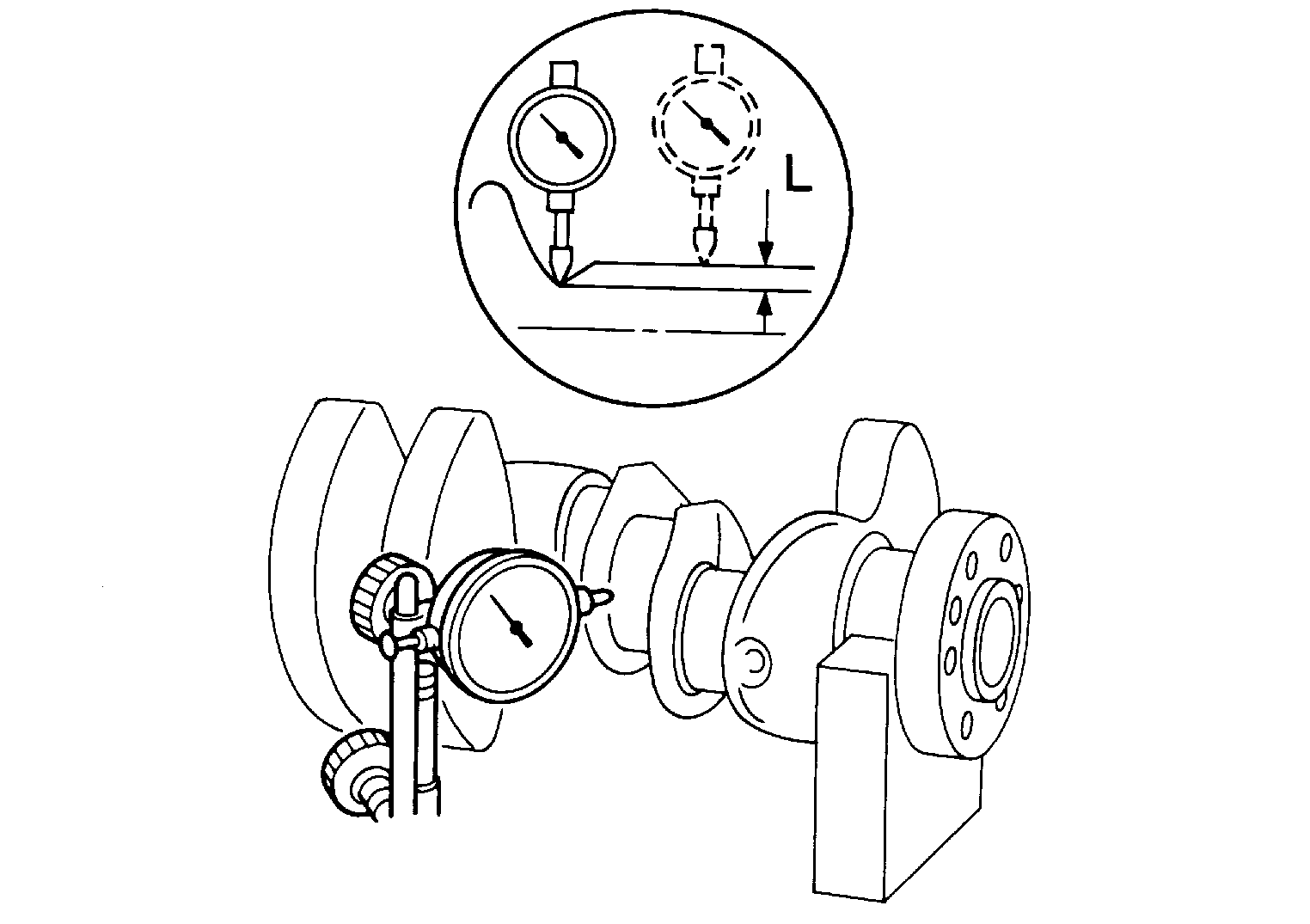

   • When grinding the crankshaft journal, confirm that the (L) dimension in the fillet role is more than the specified limit.

     Courtesy of NISSAN NORTH AMERICA, INC.

     (L)	: 0.10 mm (0.0039 in)

6. If the crankshaft or the cylinder block is replaced with a new one, select thickness of the main bearings as follows:

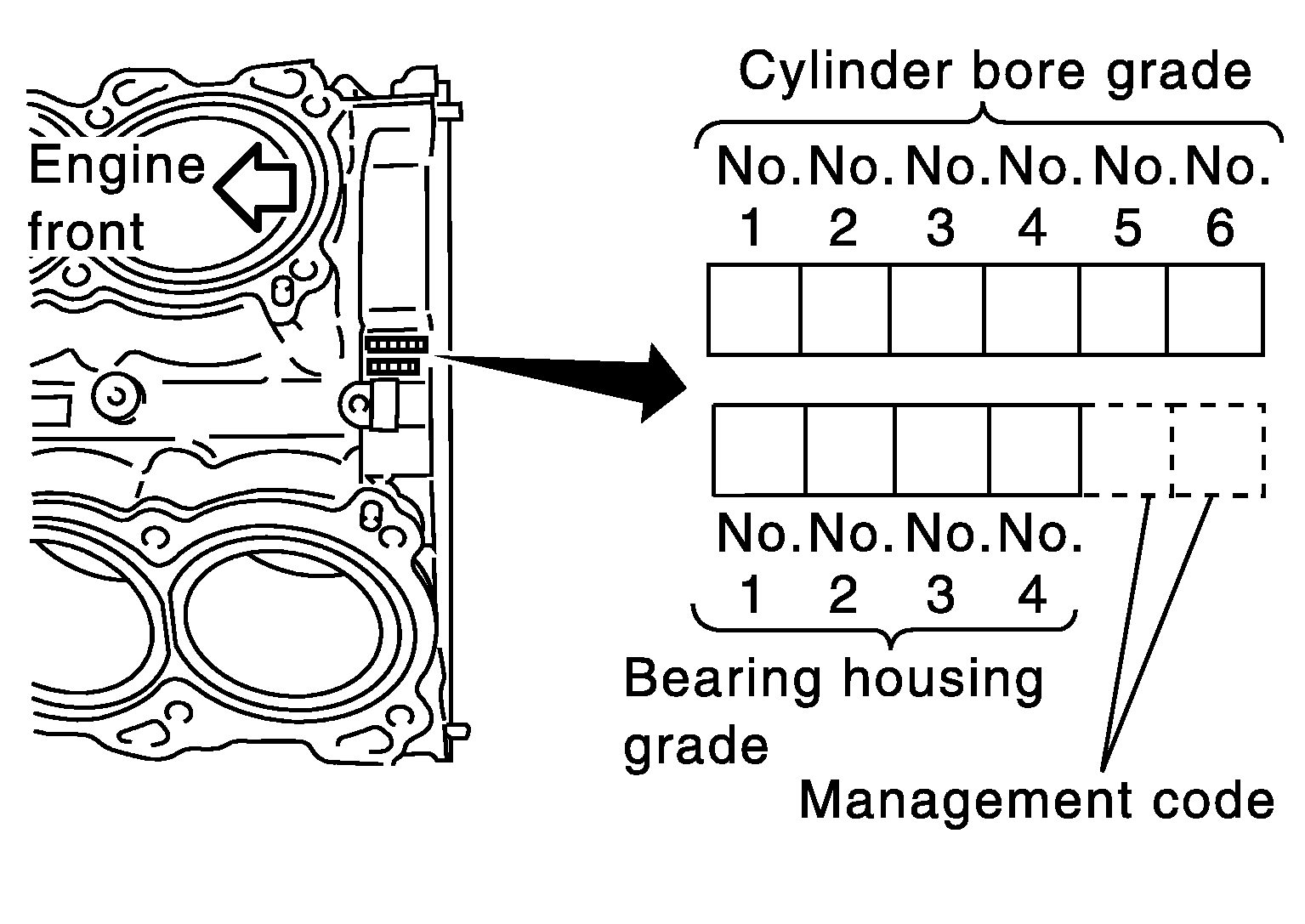

   1. The grade number of each cylinder block main journal is punched on the respective cylinder block. These numbers are punched in either Arabic or Roman numerals. If measured diameter is out of the grade punched, decide suitable grade from available main bearings.

      Courtesy of NISSAN NORTH AMERICA, INC.

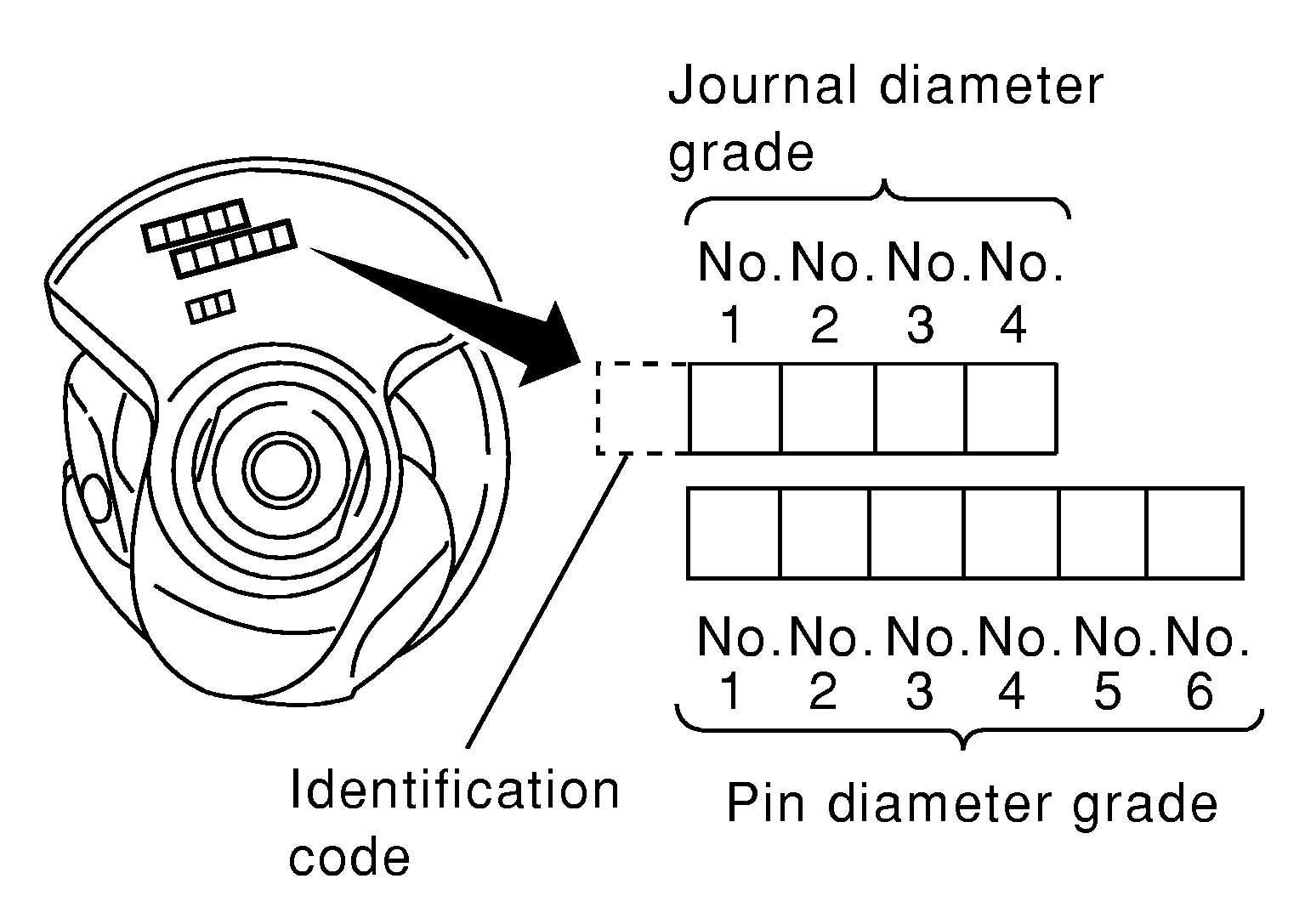

   2. The grade number of each crankshaft main journal is punched on the crankshaft end. These numbers are punched in either Arabic or Roman numerals. If measured diameter is out of grade punched, decide the suitable grade from available main bearings.

      Courtesy of NISSAN NORTH AMERICA, INC.

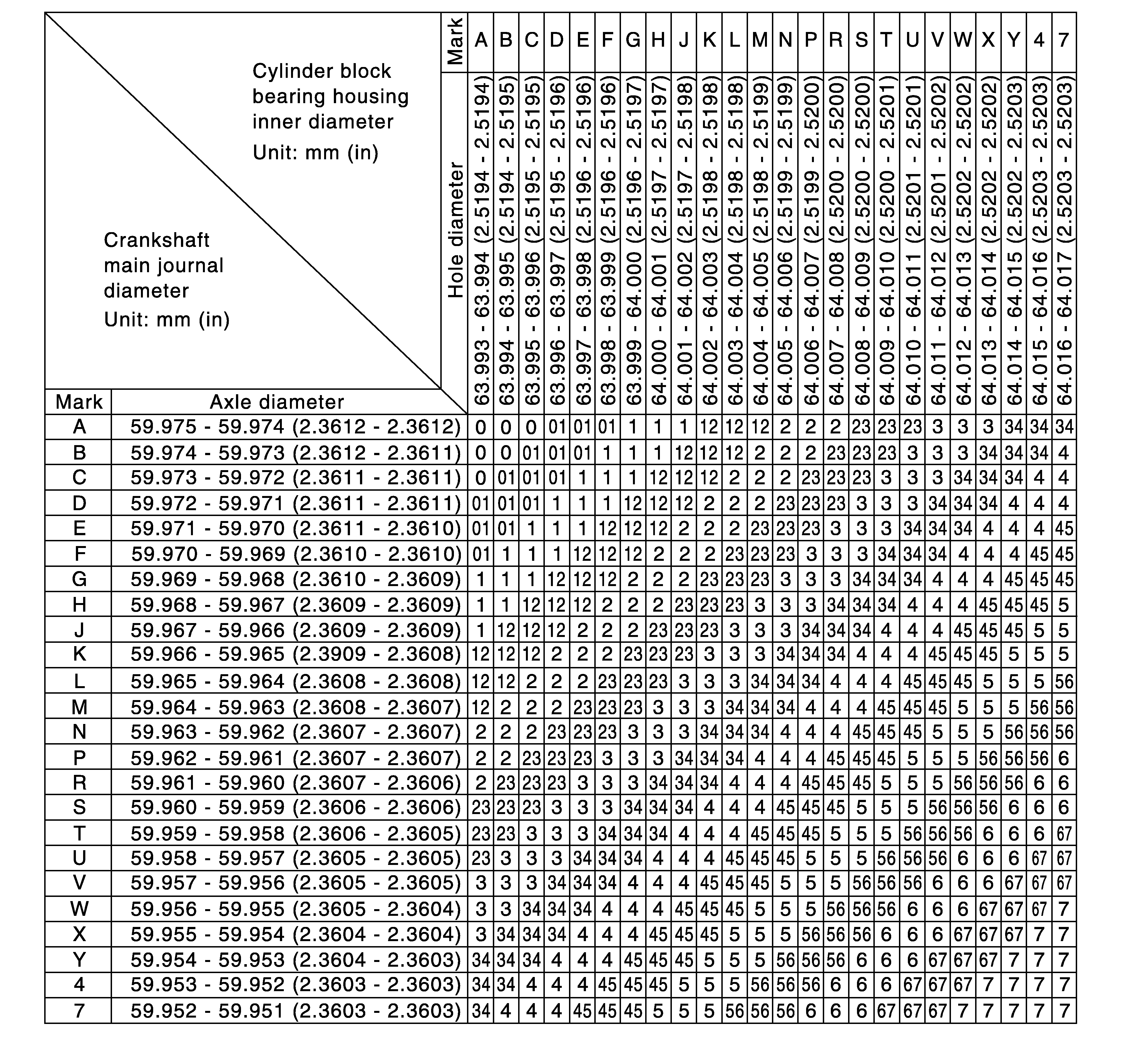

   3. Select the main bearing suitable thickness according to the following table:

      Courtesy of NISSAN NORTH AMERICA, INC.
