Dowel Pin Alignment: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use suitable tool to lock the drive plate and match mark (A) the drive plate before removing the bolts.
    G05880798Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not damage the ring gear teeth or the signal plate teeth behind the ring gear.

  2. Remove drive plate.

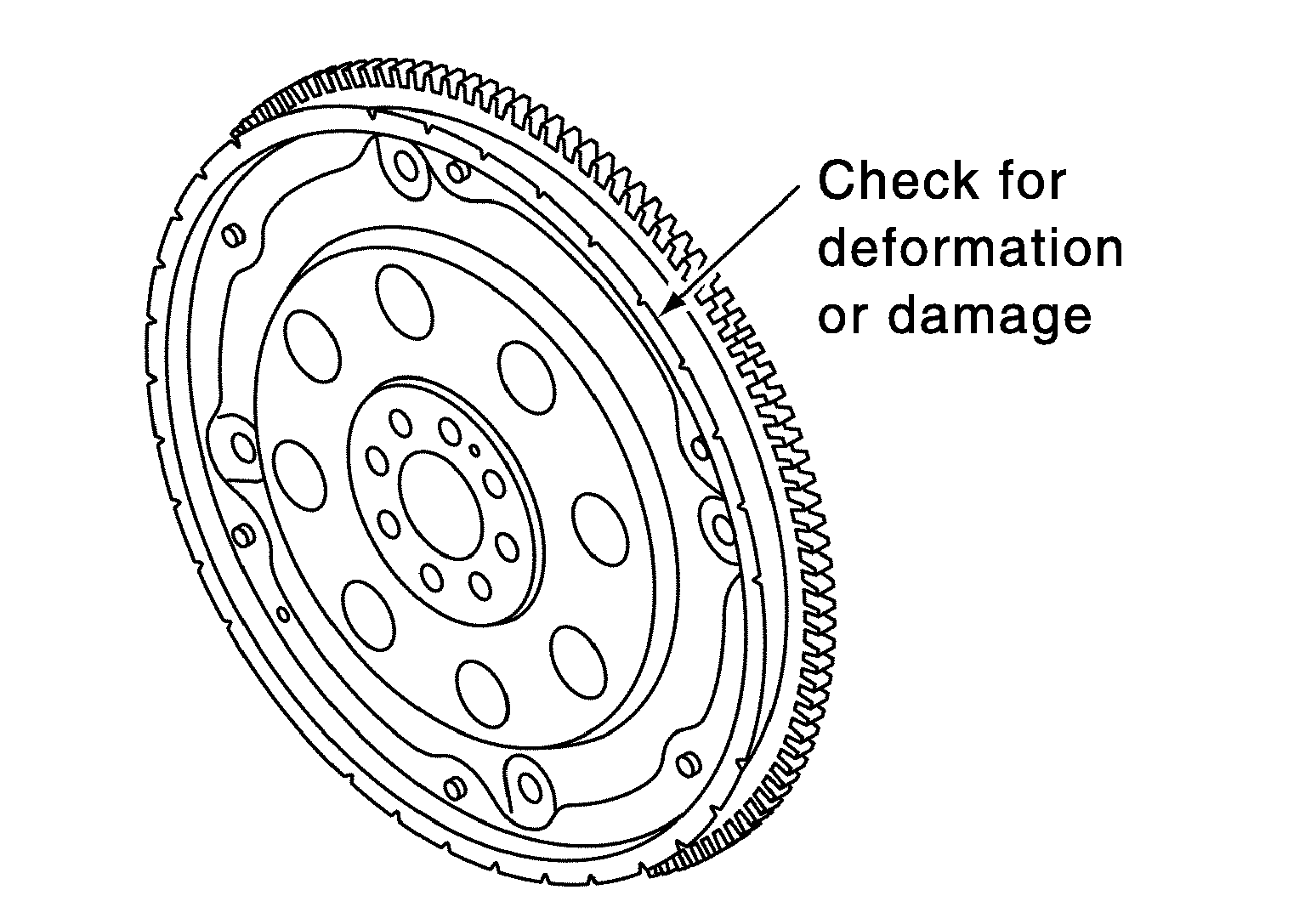

    G04073098Courtesy of NISSAN NORTH AMERICA, INC.
    • Loosen the drive plate in a diagonal order.
    CAUTION:
    • Never place drive plate with signal plate facing down.
    • When handling the signal plate, take care not to damage or scratch it.
    • Handle the signal plate in a manner that prevents it from becoming magnetized.
