Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

For United States and Canada

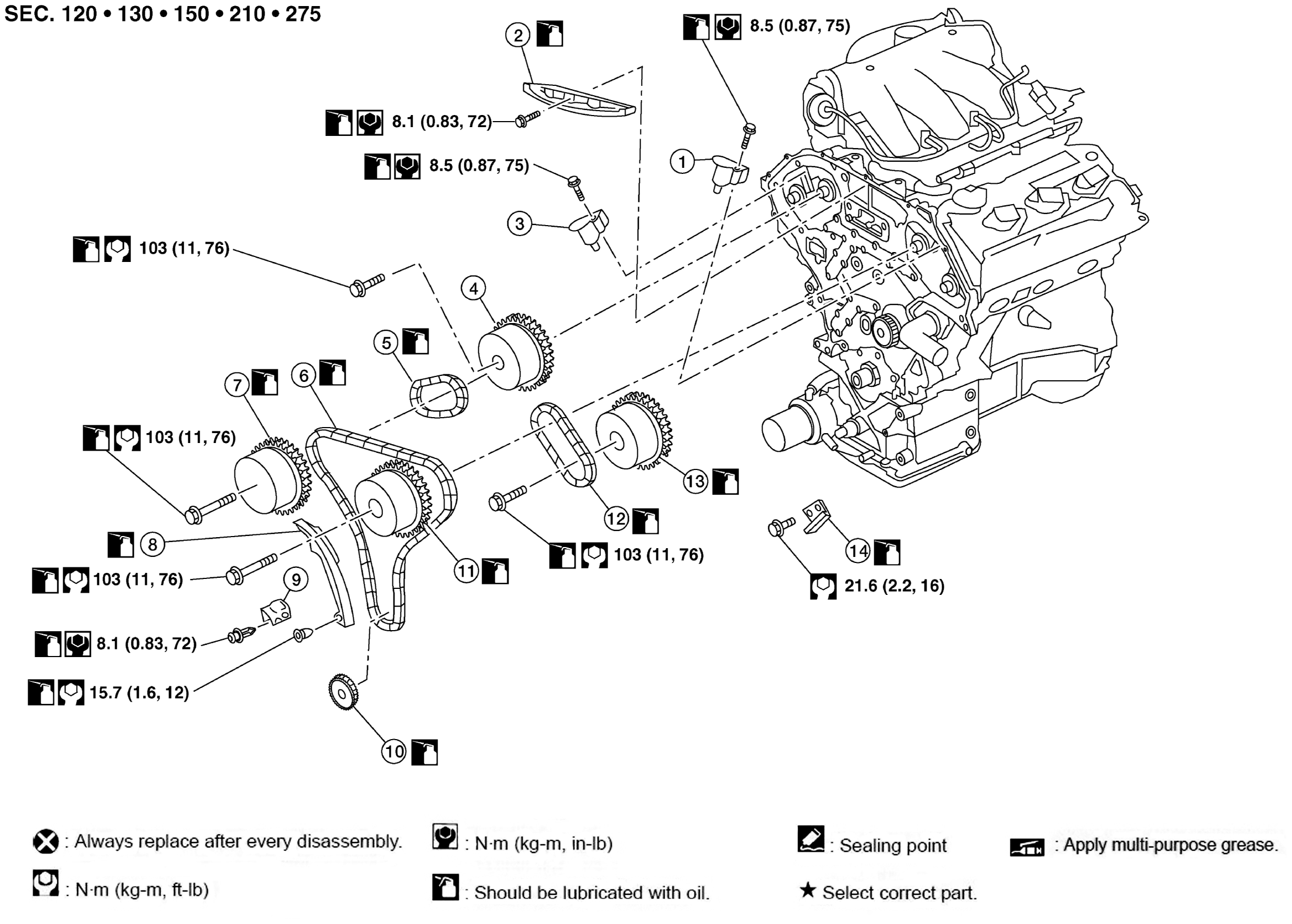

Fig 1: Timing Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Timing chain tensioner (secondary) (bank 2)	2.	Internal chain guide	3.	Timing chain tensioner (secondary) (bank 1)
4.	Camshaft sprocket (EXH) (bank 1)	5.	Timing chain (secondary)	6.	Timing chain (primary)
7.	Camshaft sprocket (INT) (bank 1)	8.	Slack guide	9.	Timing chain tensioner (primary)
10.	Crankshaft sprocket	11.	Camshaft sprocket (INT) (bank 2)	12.	Timing chain (secondary)
13.	Camshaft sprocket (EXH) (bank 2)	14.	Tension guide
