Removal And Installation (RH): Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover. Refer to REMOVAL AND INSTALLATION .
  2. Remove the front air duct and air duct hose and resonator assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the intake manifold collector. Refer to REMOVAL AND INSTALLATION .
  4. Remove camshaft position sensors.
    G04886008Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble.
    • Do not allow metal powder on magnetic part at sensor tip (A).
    • Do not place sensors in a location where they are exposed to magnetism.
  5. Disconnect the PCV hose from the rocker cover.
  6. Remove ignition coils. Refer to REMOVAL AND INSTALLATION RH .
    CAUTION:

    Do not shock ignition coils.

  7. Remove rocker cover bolts from cylinder head in the reverse order shown in illustration.
    • For United states and Canada

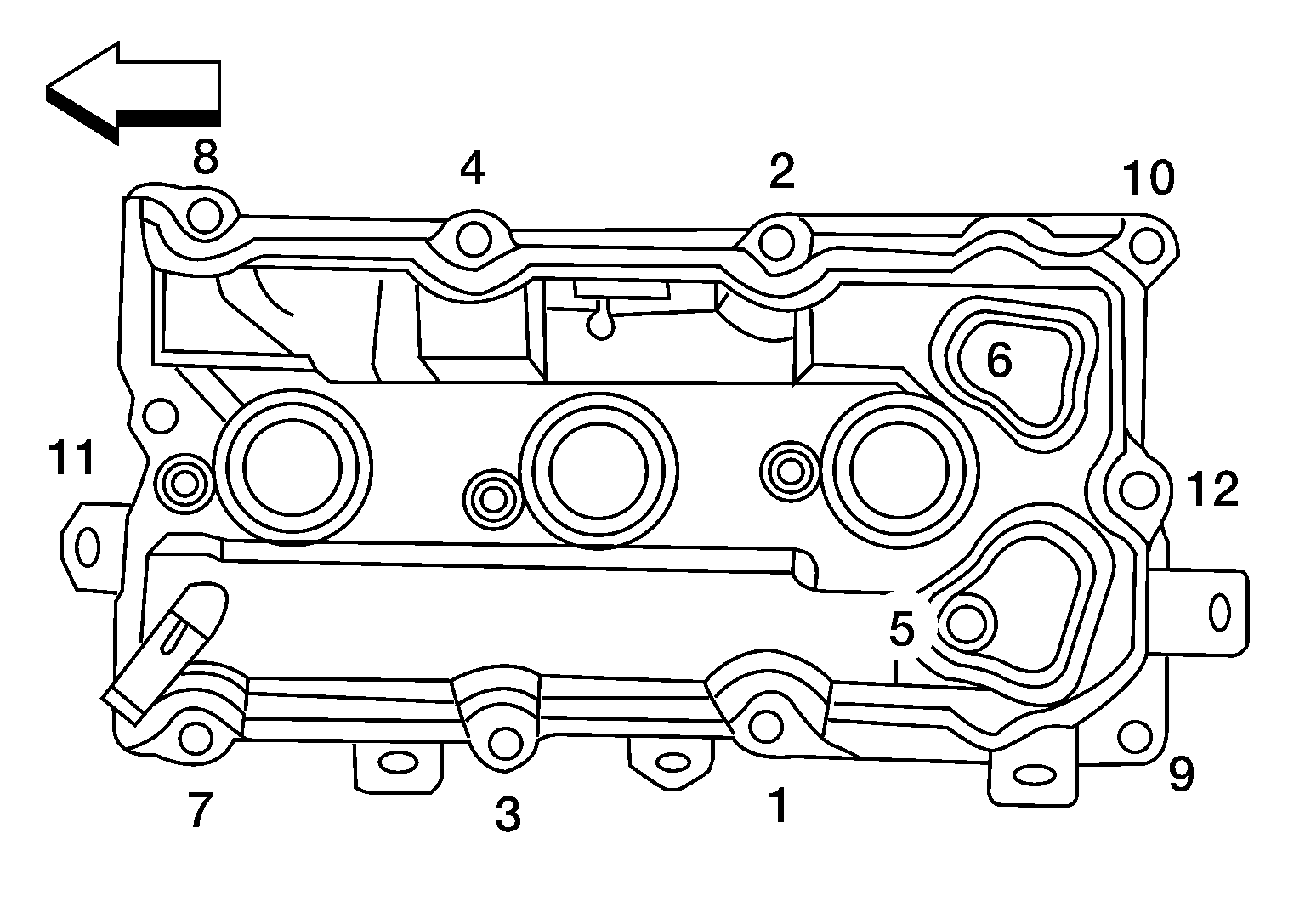

      Fig 1: Rocker Cover Bolts Tightening Sequence
      G05877833Courtesy of NISSAN NORTH AMERICA, INC.
      ARROW : Engine front
  8. Remove the rocker cover and gasket.
