Removal And Installation (LH): Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover. Refer to REMOVAL AND INSTALLATION .
  2. Remove blow by hose from rocker cover.
  3. Remove camshaft position sensor.
    G04886008Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble camshaft position sensor.
    • Do not allow metal powder on magnetic part at sensor tip (A).
    • Do not place sensor in a location where they are exposed to magnetism.
  4. Unclip the camshaft position sensor harness retainers.
  5. Remove the ignition coils. Refer to REMOVAL AND INSTALLATION LH .
    CAUTION:

    Do not shock ignition coils.

  6. Remove rocker cover bolts from cylinder head in the reverse order shown in illustration.
    • For United States and Canada
      ARROW : Engine front

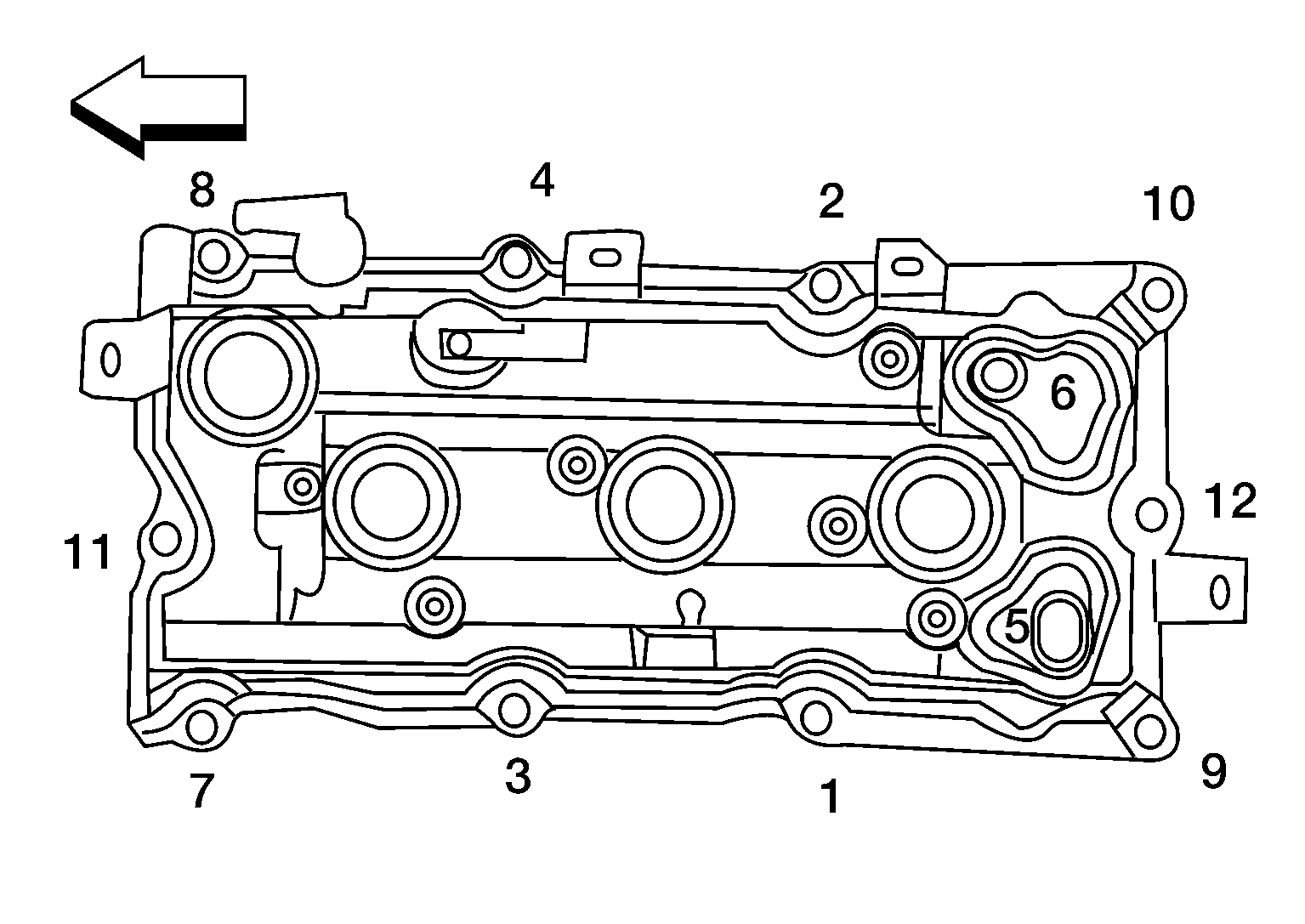

      Fig 1: Rocker Cover Bolts Tightening Sequence
      G05877829Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the rocker cover and gasket.
