Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

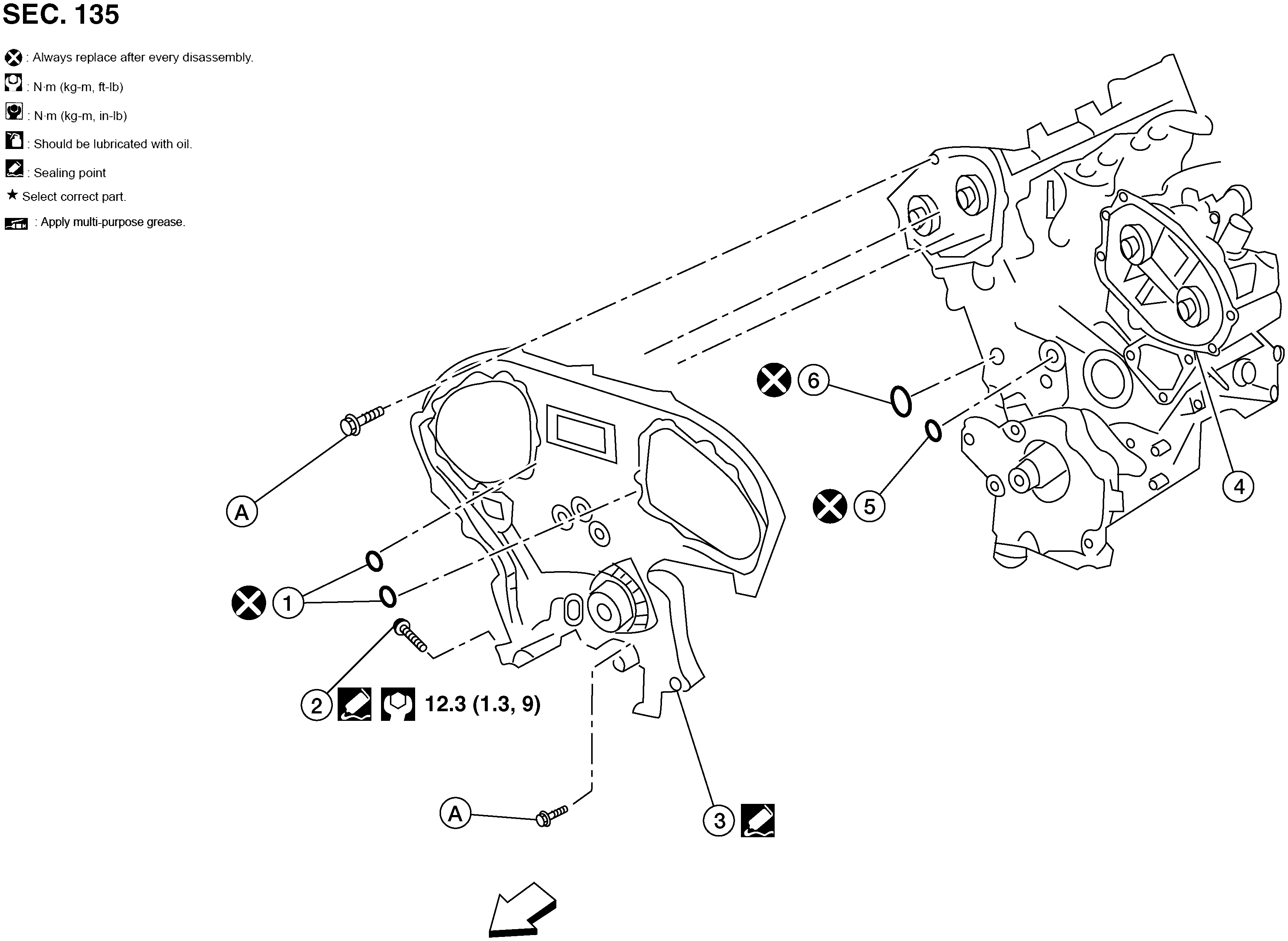

Fig 1: Rear Timing Chain Case With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Blind plug	3.	Rear timing chain case
4.	Cylinder block	5.	O-ring	6.	O-ring
A.	Refer to INSTALLATION		Engine front
