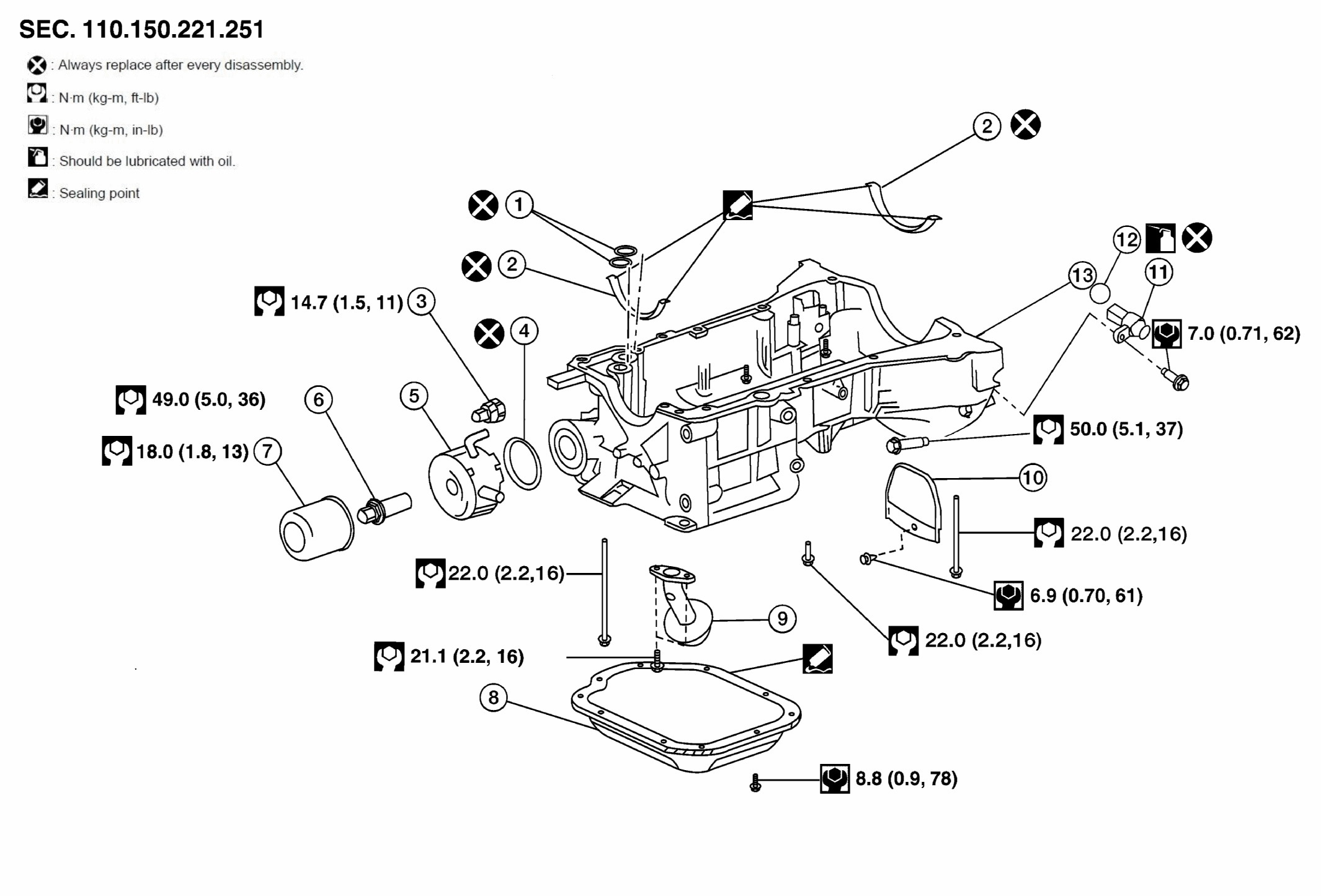

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
O-ring |
2. |
Front cover gasket and rear oil seal retainer gasket |
3. |
Oil pressure switch |
| 4. |
Oil cooler gasket |
5. |
Oil cooler |
6. |
Oil cooler connection |
| 7. |
Oil filter |
8. |
Lower oil pan |
9. |
Oil strainer |
| 10. |
Rear plate cover |
11. |
Crankshaft position sensor (POS) |
12. |
O-ring |
| 13. |
Upper oil pan |
|
|
|
|
