Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

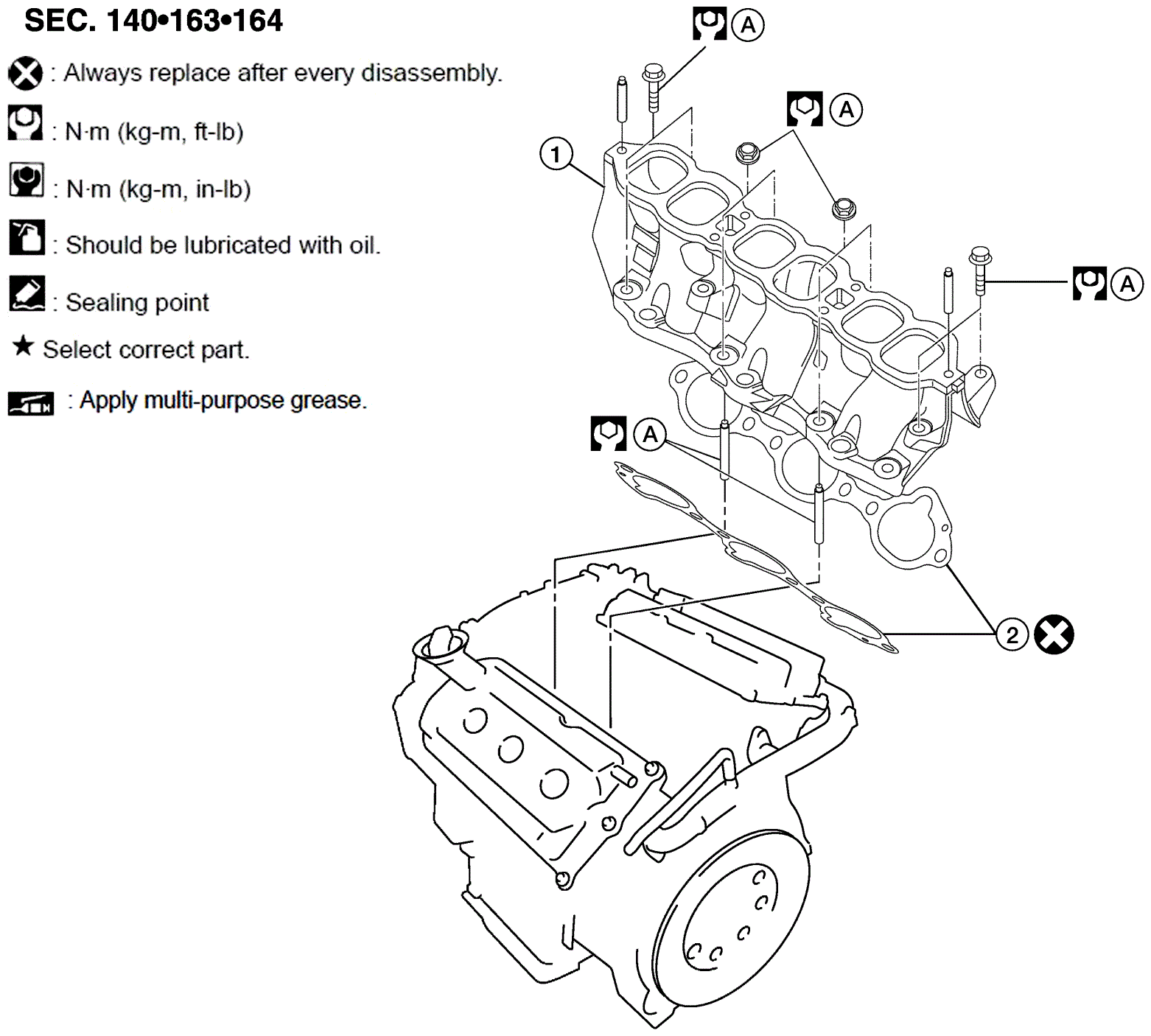

Fig 1: Intake Manifold Tightening Sequence
G06657760Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake manifold 2. Intake manifold gasket A. Refer to INSTALLATION
