Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

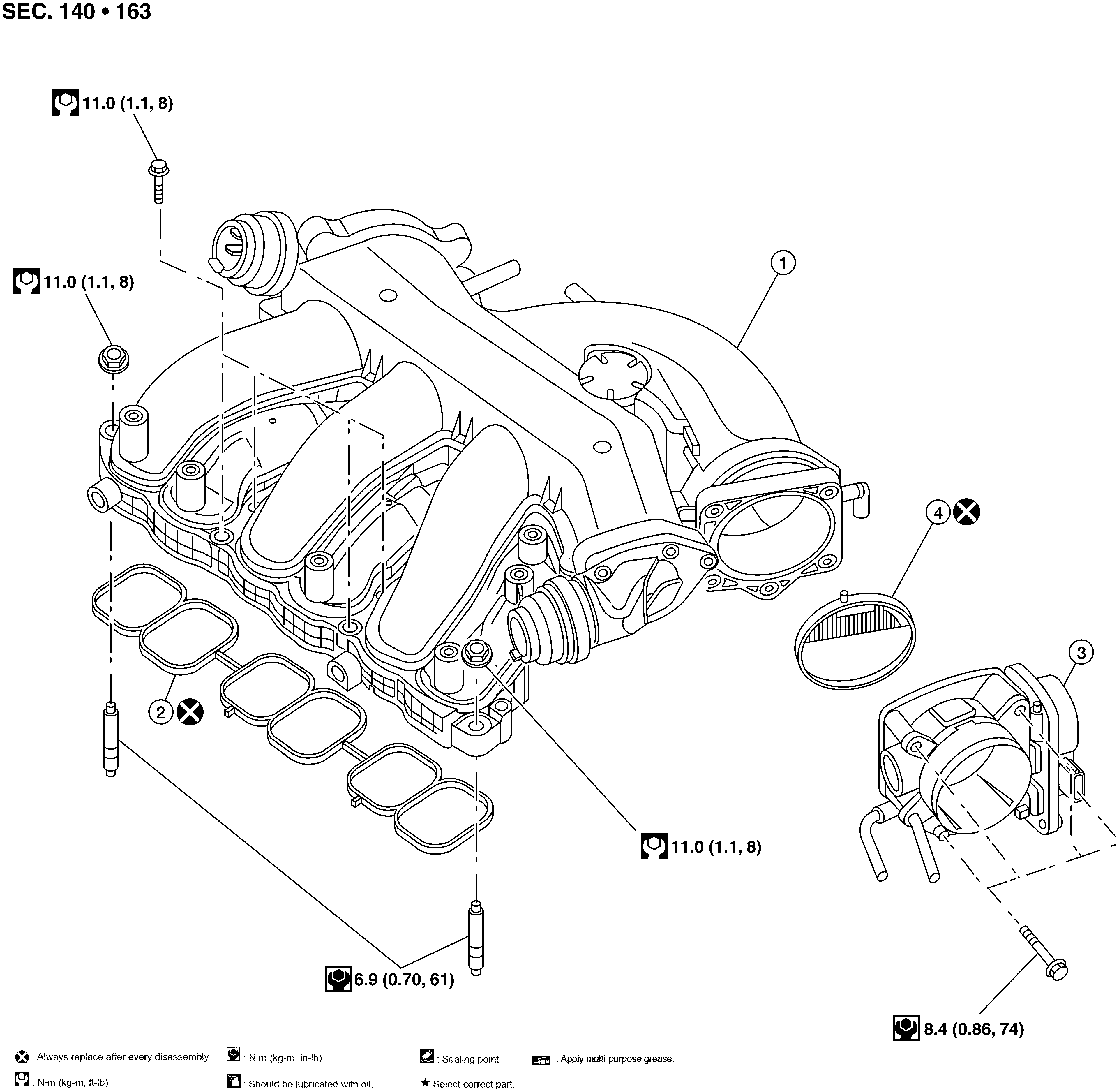

Fig 1: Intake Manifold Collector With Torque Specifications
G09404050Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake manifold collector 2. Intake manifold collector gasket 3. Electric throttle control actuator
4. Electric throttle control actuator gasket
