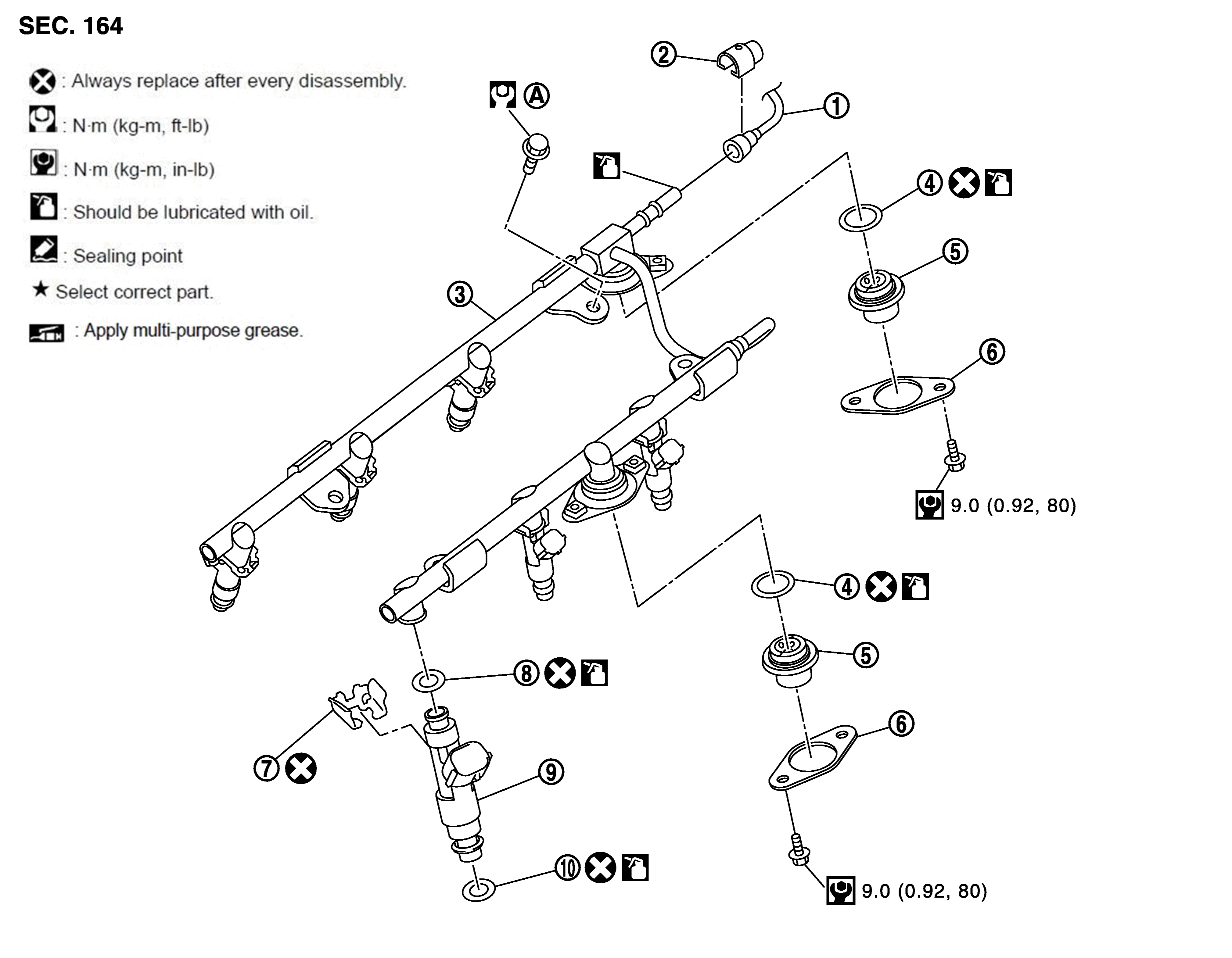

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Fuel feed hose | 2. | Quick connector cap | 3. | Fuel tube |
| 4. | O - ring | 5. | Fuel damper | 6. | Fuel damper cap |
| 7. | Clip | 8. | O - ring (black) | 9. | Fuel injector |
| 10. | O - ring (green) | A. | Refer to INSTALLATION |
