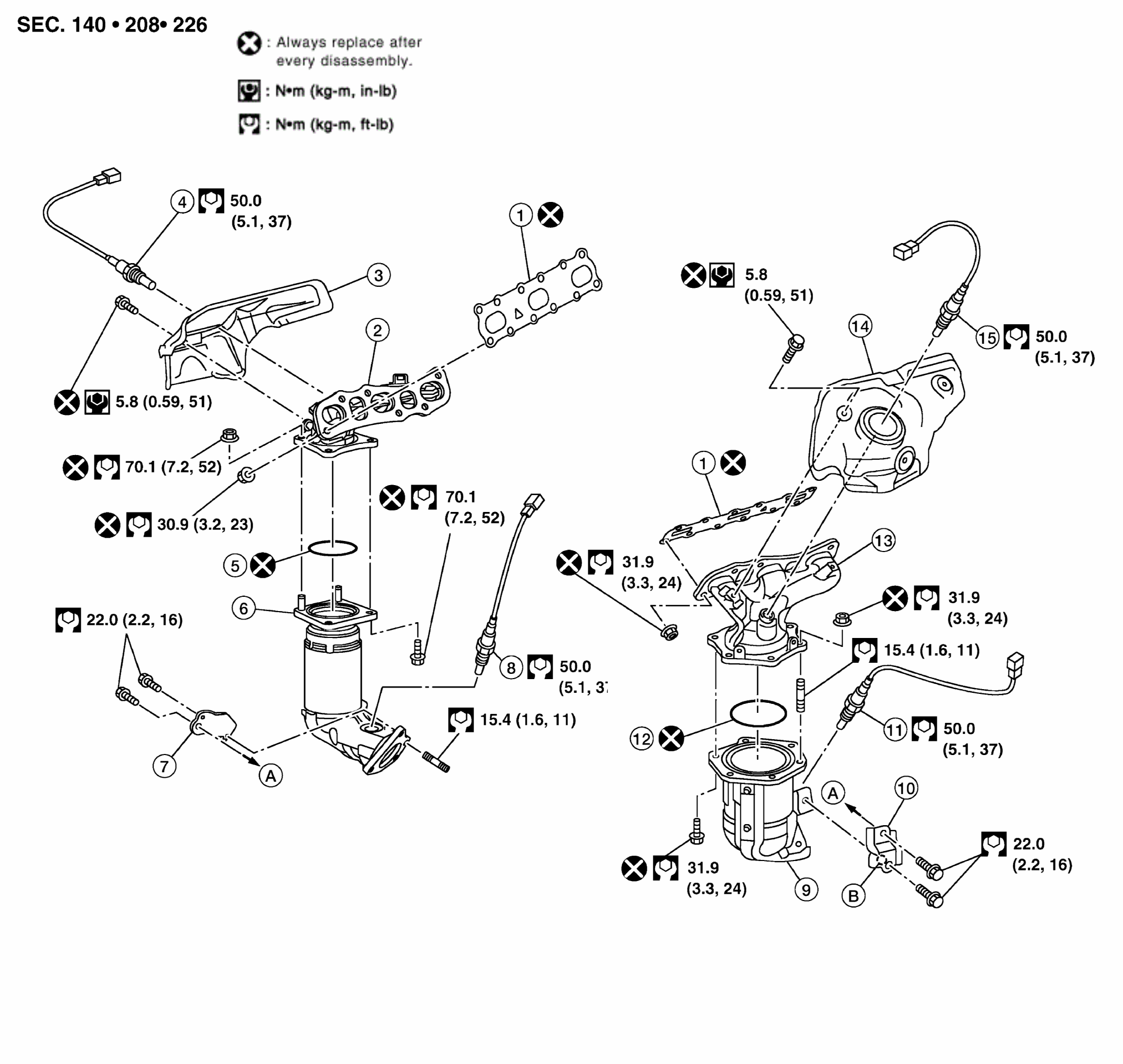

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Gasket | 2. | Exhaust manifold (bank 1) | 3. | Exhaust manifold cover (bank 1) |
| 4. | Air fuel ratio sensor 1 (bank 1) | 5. | Ring gasket | 6. | Three way catalyst (bank 1) |
| 7. | Three way catalyst support (bank 1) | 8. | Heated oxygen sensor 2 (bank 1) | 9. | Three way catalyst (bank 2) |
| 10. | Three way catalyst support (bank 2) | 11. | Heated oxygen sensor 2 (bank 2) | 12. | Ring gasket |
| 13. | Exhaust manifold (bank 2) | 14. | Exhaust manifold cover (bank 2) | 15. | Air fuel ratio sensor 1 (bank 2) |
| A. | To oil pan (upper) | B. | Upper mark |
