Cylinder Head Distortion
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

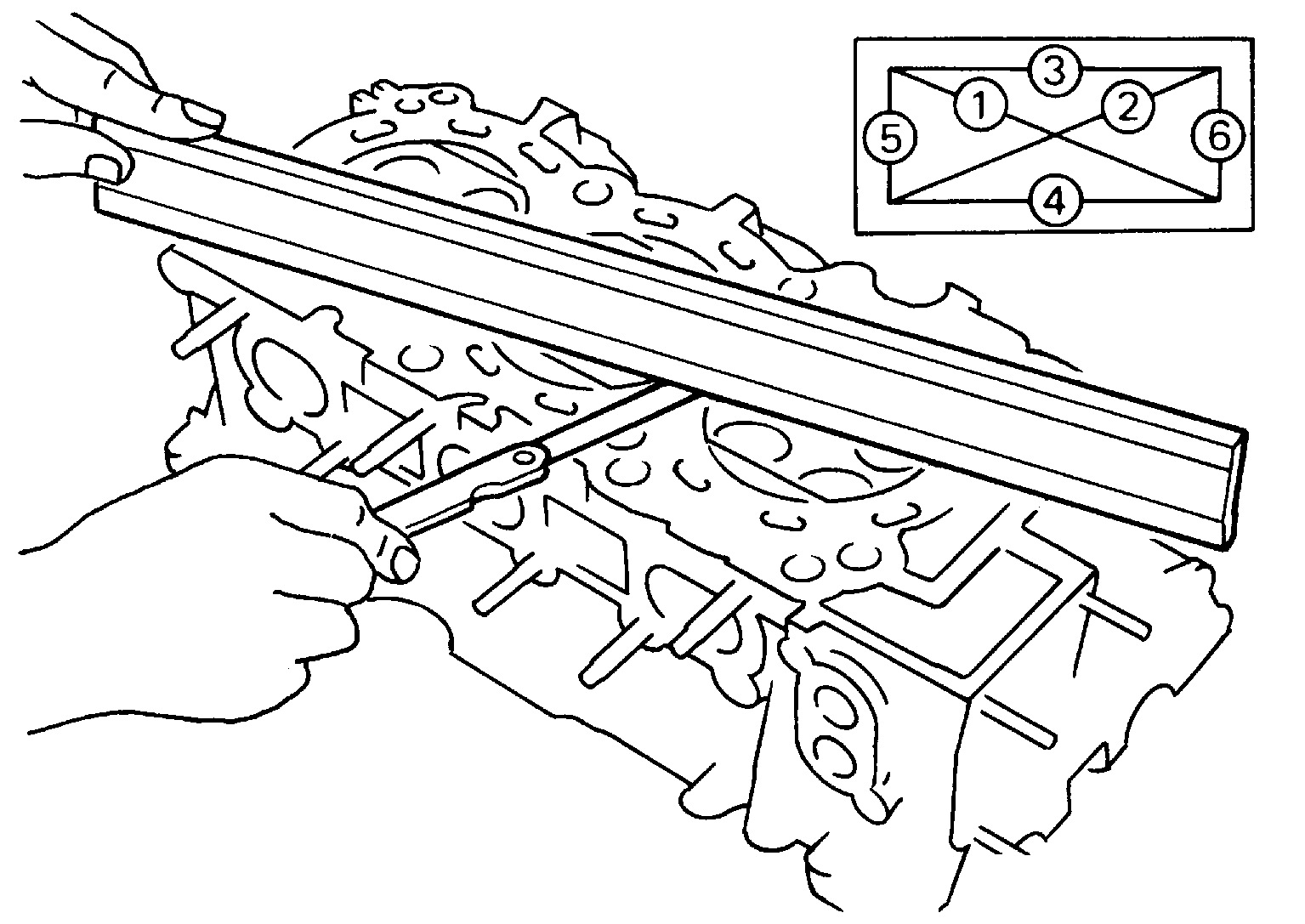

Clean the surface of the cylinder head. Use a reliable straightedge and feeler gauge to check the flatness of cylinder head surface.
Check along six positions as shown in illustration.
| Head surface distortion | |
| Limit | : 0.1 mm (0.004 in) |
| Standard | : Less than 0.03 mm (0.0012 in) |
If it exceeds the limit, replace the cylinder head.
The limit for cylinder head resurfacing is determined by the cylinder block resurfacing.
| Resurfacing Limit | |
| Amount of cylinder head resurfacing is (A). | |
| Amount of cylinder block resurfacing is (B). | |
| The maximum limit | : A + B = 0.2 mm (0.008 in) |
After resurfacing cylinder head, check that camshaft rotates freely by hand. If resistance is felt, cylinder head must be replaced.
| Nominal cylinder head height | : 126.3 - 126.5 mm (4.972 - 4.980 in) |
