Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

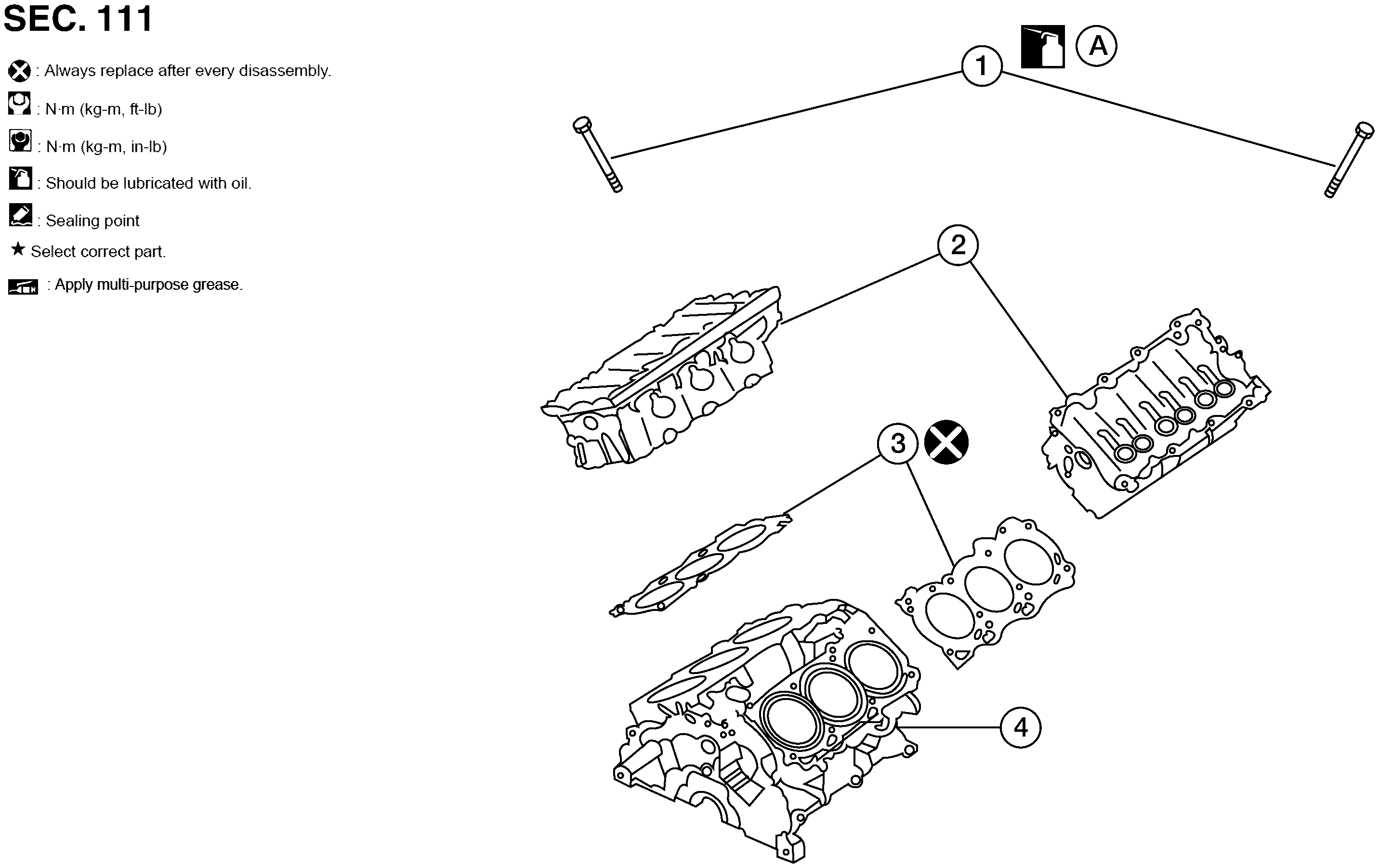

G09404193Courtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder head bolt 2. Cylinder head 3. Cylinder head gasket
4. Engine block A. Follow installation procedure
