Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

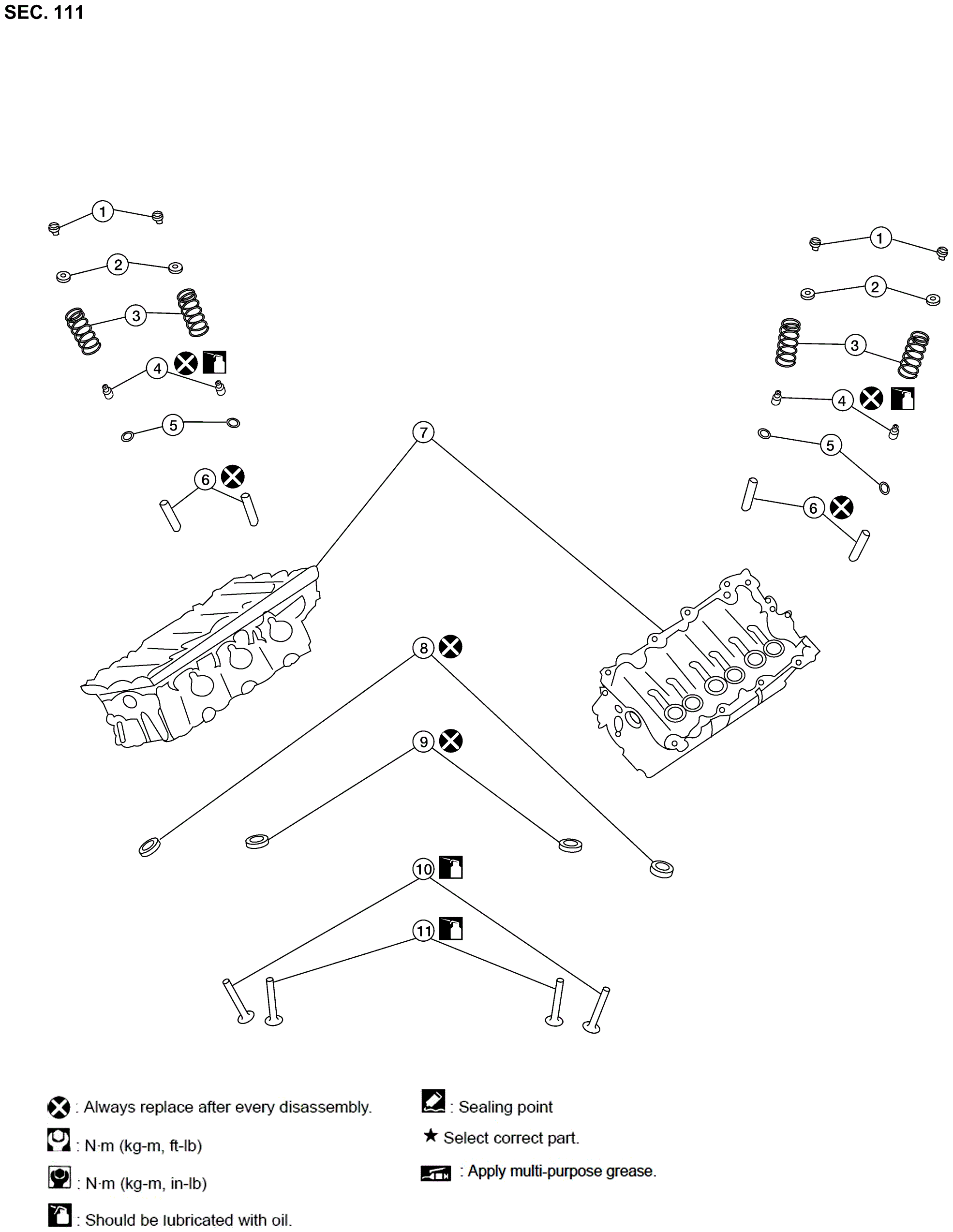

| 1. | Valve collet | 2. | Valve spring retainer | 3. | Valve spring |
| 4. | Valve oil seal | 5. | Valve spring seat | 6. | Valve guide |
| 7. | Cylinder head | 8. | Valve seat (EXH) | 9. | Valve seat (INT) |
| 10. | Valve (EXH) | 11. | Valve (INT) |
CAUTION:
- When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
- Apply new engine oil to threads and seat surface when installing cylinder head, camshaft sprocket, crankshaft pulley, and camshaft bracket.
- Attach tags to valve lifters so as not to mix them up.
