Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

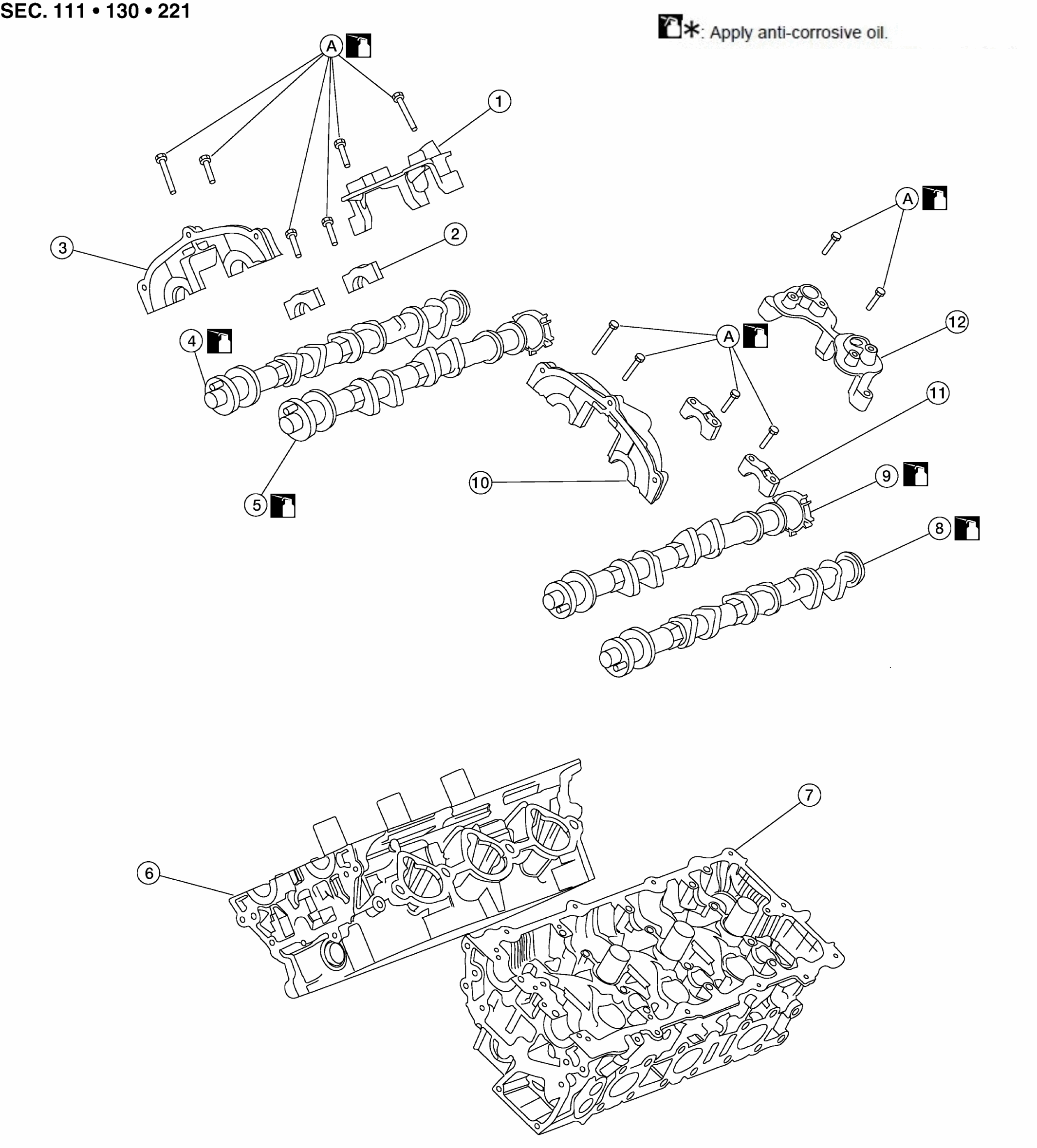

| 1. | Camshaft position sensor bracket (RH) | 2. | Camshaft brackets | 3. | No. 1 camshaft bracket (RH) |
| 4. | Camshaft (EXH) (RH) | 5. | Camshaft (INT) (RH) | 6. | Cylinder head (RH) |
| 7. | Cylinder head (LH) | 8. | Camshaft (EXH) (LH) | 9. | Camshaft (INT) (LH) |
| 10. | No. 1 camshaft bracket (LH) | 11. | Camshaft brackets | 12. | Camshaft position sensor bracket (LH) |
| A. | Follow installation procedure |
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
